Proel Cable reel
-
Proel PROEL HPC80 balanced Microphone Cable in reel
Next Arrival
Balanced installation cable (2 x 0,22 mm2) with small diameter aluminium foil shielded overall jacket - O.F.C. (Oxygen Free Copper).Black or White colour. Application fields: Patch-bay connections / Multieffect connections / Rack system connections Conductors: Tinned copper - 24 AWG 7 x 0.20 mm (0.22 mm2) Insulation: PE Ø 1.05 mm Shield: Aluminium foil 100%% Jacket: Flexible PVC 80 shore Ø 4.00 mm Color: Black. Also available in white color - HPC80WH Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm2) Electrical resistance: 87 Ohm/Km (conductor) @ 20°C Electrical capacitance: 63 pF/m (conductor/conductor) @ 1 KHz 107 pF/m (conductor/shield) @ 1 KHz Nominl impedance: 80 +-3 Ohm Attenuation: 1 MHz = 2.10 dB/100 m 3 MHz = 3.60 dB/100 m 6 MHz = 5.00 dB/100 m 8 MHz = 5.80 dB/100 m 10 MHz = 6.50 dB/100 m Velocity of propagation: 66 % Operating temperature: -20°C / +80°C Working tension: < 50 V AC < 75 V DC Weight: 20 Kg/Km Minumum bending radius: 25 mm Packaging: 100 m carton reel (HPC80) 300 m carton reel (HPC80R300) 500 m wooden reel (HPC80R500)
-
Proel PROEL HPC90 balanced Microphone Cable in reel
Next Arrival
Balanced AES/EBU Audio Digital cable (2 x 0,22 mm2) small diameter aluminium foil shielded flame resistant overall jacket. - O.F.C. (Oxygen Free Copper). Black color. Application fields: Patch connections / gooseneck microphones / Home recording connections / Rack and console connections Conductors: Bare copper - 24 AWG = 28 x 0,10 mm (0.22 mm2) Insulation: PE Ø 1.20 mm Shield: Aluminium foil 100%% Jacket: Flame resistant PVC 70 shore Ø 3.00 mm - Complying with CEI 20-22 II regulations Color: Black Drain wire: Tinned copper 25 AWG = 7 x 0.18 mm (0.18 mm2) Electrical resistance: 87 Ohm/Km (conductor) @ 20°C Electrical capacitance: 37 pF/m (conductor/conductor) @ 1 KHz 57 pF/m (conductor/shield) @ 1 KHz Nominal impedance: 110 Ohm Velocity of propagation: 80 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 10 Kg/Km Minumum bending radius: 20 x cable secion radius Packaging: 100 m carton reel 300 m carton reel (HPC90R300)
-
Proel PROEL HPC201BK balanced Microphone Cable in reel
Next Arrival
Professional balanced coaxial microphone cable (2 x 0,14 mm2) with strong and fl exible overall jacket - O.F.C. (Oxygen Free Copper). Black color. Application fields: Mixer connections / Microphone connections Conductors: Bare copper 26 AWG = 18 x 0.10 mm (0.14 mm2) Insulation: PE Ø 1.25 mm Shield: Aluminium/Polyester 100% Jacket: Flexible PVC 60 shore Ø 6.00 mm Drain wire: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm2) Color: Black Electrical resistance: 125 Ohm/Km (conductor) @ 20°C Electrical capacitance: 45 pF/m (conductor/conductor) @ 1 KHz 96 pF/m (conductor/shield) @ 1 KHz Velocity of propagation: 66 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 40 Kg/Km Minumum bending radius: 20 x cable section radius Packaging: 100 m carton reel
-
Proel PROEL HPC210 balanced Microphone Cable in reel
Next Arrival
Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket - O.F.C. (Oxygen Free Copper). Available colors in 100m: Black, Blue, Bronze, Green, Purple, Red, White, Yellow. 300 and 500m Black only (wooden reel) Application fields: Recording studios / Microphone connections Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm2) Insulation: PE (Compact polyethylene) Ø 1.60 mm - RED/WHITE Shield: Spiral copper 16x5x0.10 mm > 90% Jacket: Flexible PVC 60 shore Ø 6.50 mm Color: Black Electrical resistance: 93 Ohm/Km (conductor) @ 20°C 20 Ohm/Km (shield) @ 20°C Electrical capacitance: 46 pF/m (conductor/conductor) @ 1 KHz 90 pF/m (conductor/shield) @ 1 KHz Velocity of propagation: 80 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 46 Kg/Km Minumum bending radius: 20 x cable section radius Packaging: 100 m carton reel 300 m wooden reel (HPC210BKR300) 500 m wooden reel (HPC210BKR500)
-
Proel PROEL HPC222BK balanced Microphone Cable in reel
Next Arrival
Digital balanced microphone cable (2 x 0,22 mm2) with strong and flexible overall jacket - O.F.C. (Oxygen Free Copper).It can also be used for the transmission of DMX signal. Application fields: Amplifiers connections / DMX connections / Mic-Mixer connections / Microphone connections / Speakers Conductors: Tinned copper - 24 AWG 7 x 0.20 mm (0.22 mm2) Insulation: PEE Ø 1.60 mm Shield: PET/Aluminium tape 100%% Jacket: Flexible PVC 64 shore Ø 4.70 mm Colour: Black Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm2) Electrical capacitance: 85pF/m (conductor/Shield) @ 1 KHz Nominal impedance: 110 Ohm Velocity of propagation: 76 % Operating temperature: -20°C / +70°C Working tension: < <50> < <75> Weight: 23.79 Kg/Km Minumum bending radius: 20 x cable section radius Packaging: 100 m carton reel (HPC222BK) 300 m carton reel (HPC222BKR300)
-

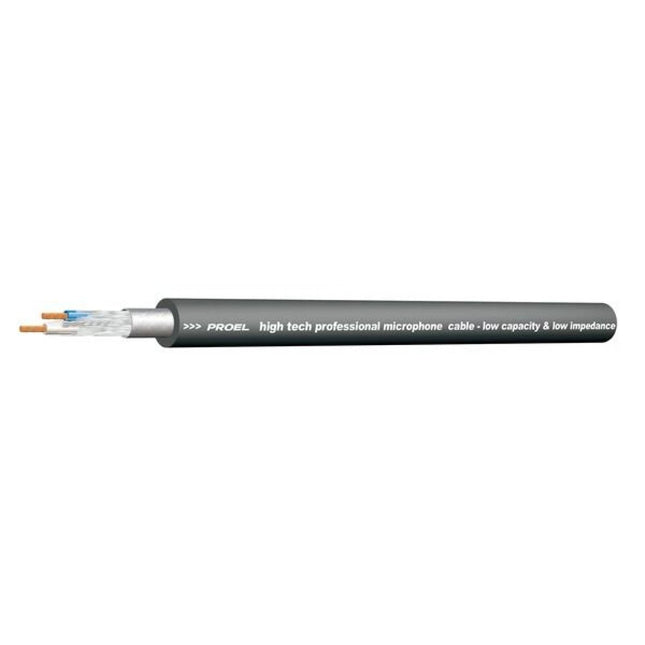

Proel PROEL HPC250 balanced Microphone Cable in reel
Next Arrival
High-quality balanced microphone cable (2 x 0,22 mm2 ) with fl exible overall jacket - O.F.C. (Oxygen Free Copper). Application fields: Installations / Recording studios / Microphone connections Conductors: Tinned copper 24 AWG = 7 x 0.20 mm (0.22 mm2) Insulation: PE Ø 1.36 mm Shield: Tinned copper braid 6x16x0.10 mm > 95% Jacket: Flexible PVC 60 shore Ø 6.50 mm Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2) Color: Black Electrical resistance: 93 Ohm/Km (conductor) @ 20°C 21 Ohm/Km (shield) @ 20°C Electrical capacitance: 90 pF/m (conductor/conductor) @ 1 KHz Velocity of propagation: 80 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 51 Kg/Km Minumum bending radius: 20 x cable section radius Packaging: 100 m carton reel
-

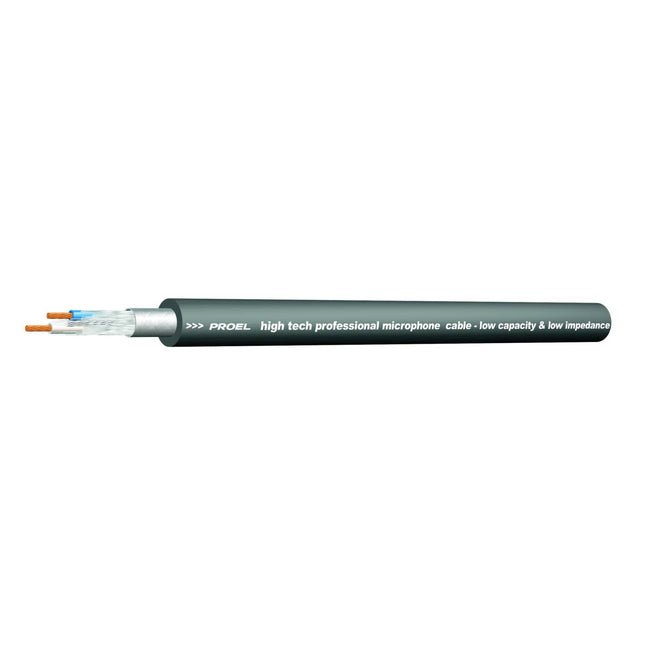

Proel PROEL HPC280 balanced Microphone Cable in reel
Next Arrival
High-quality balanced microphone cable (2 x 0,34 mm2 ) with flexible overall jacket - O.F.C. (Oxygen Free Copper). Application fields: Installations / Recording studios / Microphone connections Conductors: Bare copper 22 AWG = 43 x 0.10 mm (0.34 mm2) Insulation: PE Ø 1.50 mm Shield: Tinned copper braid / 95% Jacket: Super Flexible PVC 70 shore Ø 6.50 mm Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2) Color: Black Electrical resistance: 56 Ohm/Km (conductor) @ 20°C 16 Ohm/Km (shield) @ 20°C Electrical capacitance: 40 pF/m (conductor/ conductor) @ 1 KHz Velocity of propagation: 66 % Impedance: 110 Ohm Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 57 Kg/Km Minumum bending radius: 15 x cable section radius Packaging: 100 m carton reel
-

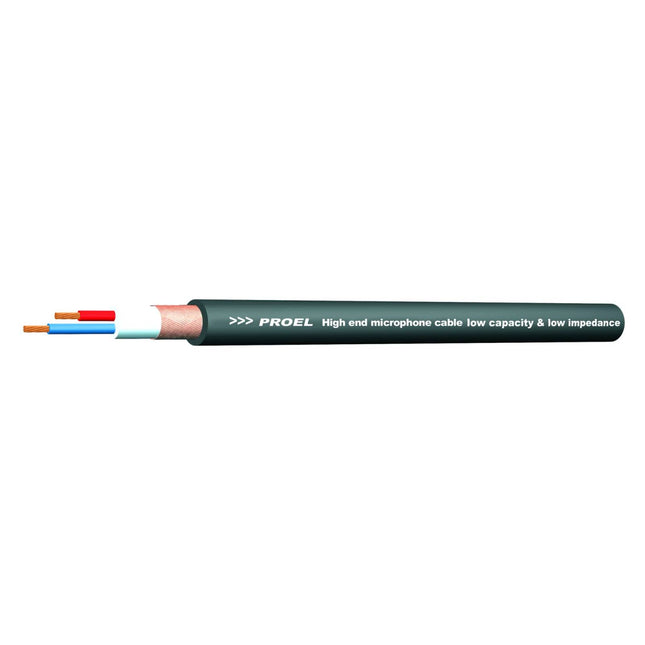

Proel PROEL HPC290BK balanced Microphone Cable in reel
Next Arrival
High-end professional balanced microphone cable (2 x 0,50 mm2) with flexible overall jacket - O.F.C. (Oxygen Free Copper) with inner jacket for stabilizing pair twisting. Application fields: Installations / Recording studios / Professional Stage Connections / Microphone connections Conductors: Bare copper 20 AWG = 26 x 0.15 mm (0.50 mm2) Insulation: LDPE Ø 1.40 mm - PVC Ø 3,60 mm Shield: Bare copper braid / 24*7*0,10 - 90% Jacket: PVC TM2 complying with EN 50363-4-1 hardness 63± 2 Sh-A - Ø 7.00 mm Color: Black Electrical resistance: 39 Ohm/Km (conductor) @ 20°C 16 Ohm/Km (shield) @ 20°C Electrical capacitance: 55 pF/m (conductor / conductor) @ 1 KHz 120 pF/m (conductor / screen) @ 1 KHz Velocity of propagation: 66 % Operating temperature: -20°C / +70°C Working tension: < 50 V AC < 75 V DC Weight: 57 Kg/Km Minumum bending radius: 15 x cable section radius Packaging: 100 m carton reel
-

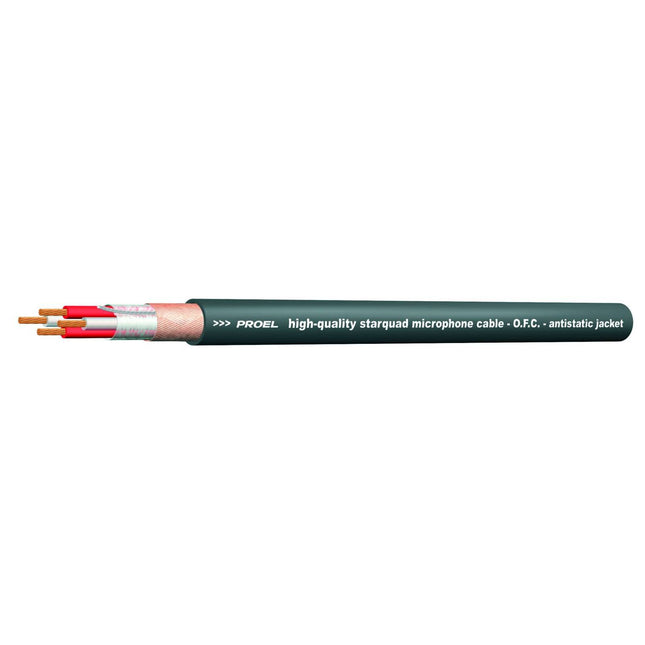

Proel PROEL QUAD420 Microphone Cable
Next Arrival
PROEL QUAD420 cable is designed mainly for microphone use, but it perfectly suits any other type of audio signal. The 4 conductors of QUAD420 cable eliminate interferences and buzzes produced by dimmer electrostatic fields, power transformers and fluorescent lights. The excellent response frequency is due to the special insulating PE jacket providing low dielectric capacitance. QUAD420 cable features a high-density spiral shielding to eliminate any buzzing and radio interference. Overall jacket is made of a special PVC, allowing an extremely easy handling and granting an excellent abrasion tolerance. This cable perfectly match with all XLR type audio connectors. Application fields: Microphone connections / Audio signal connections Conductors: Extra fine strands of bare copper 24 AWG = 28 x 0.10 mm (0.22 mm2) Insulation: Polyolefin dielectric natural,blue, red, black - Ø= 1,6 mm ca. Shield: Spiral bare copper wires coverage >95% Jacket: Soft PVC compound - Ø = 6,2 mm ca. Drain wire: Tinned copper 24 AWG = 7 x 0.15 mm (0.22 mm2) Color: Black Electrical resistance: <86> Electrical capacitance: 91 pF/m (conductor/shield) @ 1 KHz 50 pF/m (conductor/ conductor) @ 1 KHz Velocity of propagation: 80 % Operating temperature: -20°C / +80°C Weight: 46 Kg/Km Minumum bending radius: 10 x cable overall diameter Packaging: 100 m carton reel
