BAND A 514-542 MHZ
AETHERRM1M Wireless Microphone is a professional UHF, PLL controlled, true diversity system. It's equipped with channel Scan and IR sync. - 388 channel for simultaneous use of up to 24 units. - 100 meter range. - ABS case. - 514-542 Mhz (AETHERRM1MA). - Bodypack transmitter - Guitar/Bass cable is INCLUDED
EIKON introduces the new AETHER wireless Series, dedicated to all professional users with its crystal-clear sound quality and powerful user-friendly control.
Thanks to the possibility of completing the system with a series of accessories, AETHER represent an ideal choice for professional vocal applications, theaters, clubs, rental companies, system integrators and all professional demanding venues.
The AETHER RM1 Wireless Microphone is a Professional UHF PLL controlled, true diversity system providing a reliable and high-quality signal transmission and equipped with automatic channel scan and IR sync.
The system is available in two different configurations:
AETHER RM1M: RM1 + RM1HT Handheld microphone

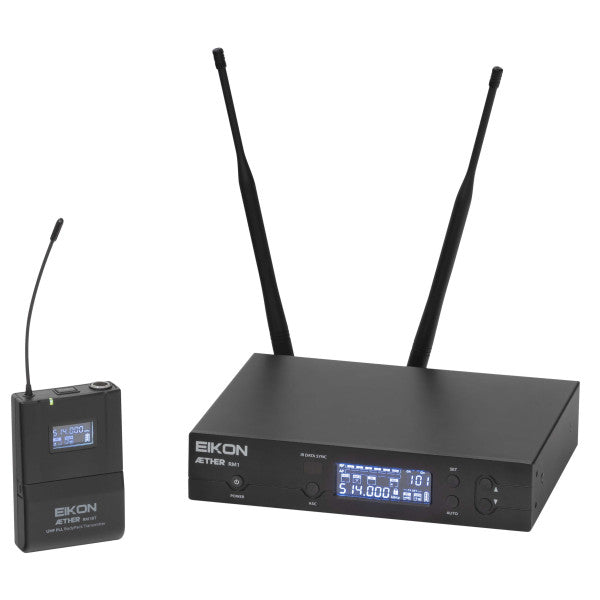

AETHER RM1H: RM1 + RM1BT body pack transmitter.
388 total channel frequencies are available allowing the simultaneous use of 12 to 24 devices without interference (depending on location conditions).
- True Diversity Receiver
- PLL Tuning
- Digital Tone Pilot 32 Khz
- 4 UHF bands available up to 25 MHz width each one
- Up to 24 sistems usable in the same location
- 100 meters range in open space
- BNC antenna OUTPUTS
- Bodypack transmitter with 3 pole mini-XLR plug

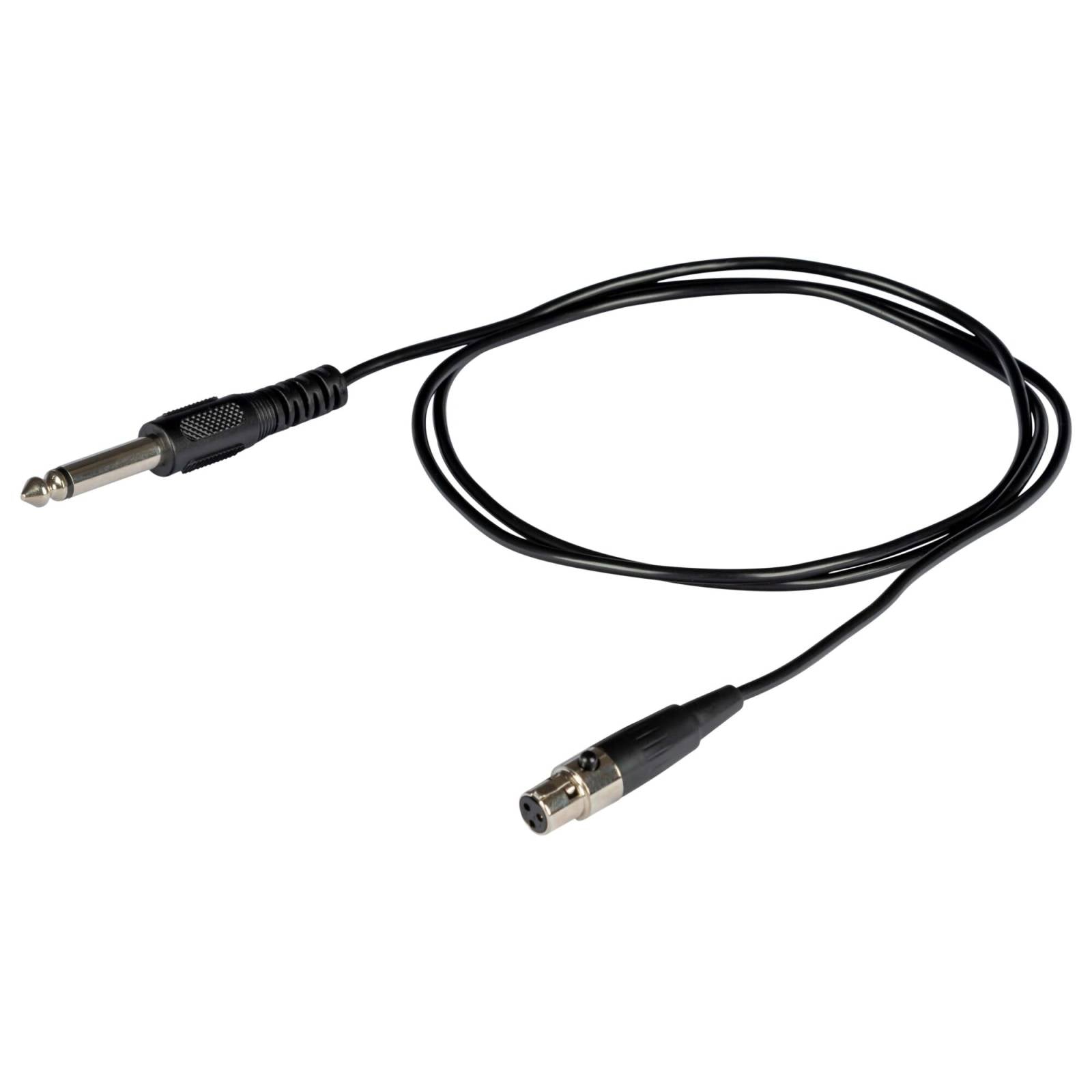

- Guitar/Bass cable is INCLUDED
- Sync IR Function
- Auto Scan Function
- Balanced and unbalanced OUTPUTS
- ABS carrying case
- Splitter, Antenna Booster and directional antennas available as optionals
|
RM1 – UHF PLL Receiver
|
|
RF Channels
|
388 total preset frequencies
|
|
RF Frequency Band
|
UHF A: 514 - 542 MHz (144 Ch)
|
|
|
UHF B: 606 - 614 MHz (40 Ch)
|
|
|
UHF C: 655 - 679 MHz (120 Ch)
|
|
|
UHF D: 823 - 832; 863 - 865 MHz (84 Ch )
|
|
RF Receiver Type
|
PLL UHF Synthesized
|
|
RF Modulation type
|
FM (F3E)
|
|
RF Sensitivity
|
-105 dBm / 12 dB SINAD
|
|
RF Image/Spurious Rejection
|
> 70 dB
|
|
RF Interference Rejection
|
> 70 dB
|
|
RF Frequency Stability
|
± 0.005% (-10 ÷ +50 °c)
|
|
THD Distortion
|
< 1 %
|
|
S/N Ratio
|
> 90 dB
|
|
Dynamic Ratio
|
> 100 dB
|
|
Frequency Response
|
60 Hz – 18000 Hz (±3 dB)
|
|
XLR balanced nominal audio output
|
-10 dBu (245 mVrms)
|
|
JACK unbalanced nominal audio output
|
0 dBu (775 mVrms)
|
|
Power Supply
|
12 V DC 500 mA
|
|
Dimensions
|
H 43 x L 213 x W 173 mm
|
|
Weight
|
880 g
|
|
RM1HT – Handheld Microphone UHF PLL Transmitter
|
|
RF Channels
|
388 total preset frequencies
|
|
RF Frequency Band
|
UHF A: 514 - 542 MHz (144 Ch)
|
|
|
UHF B: 606 - 614 MHz (40 Ch)
|
|
|
UHF C: 655 - 679 MHz (120 Ch)
|
|
|
UHF D: 823 - 832; 863 - 865 MHz (84 Ch)
|
|
RF Power
|
max 10 mW
|
|
Modulation method
|
FM (F3E)
|
|
RF Max deviation
|
± 50 KHz compressor-expander system
|
|
RF Frequency Stability
|
± 0.005% (-10 ÷ +50 °c)
|
|
Spurious Emission
|
under limits EN 300422
|
|
Frequency Response
|
50 Hz – 15000 Hz (±3 dB)
|
|
Microphone type
|
Dynamic Iper-Cardioid
|
|
Power Supply
|
2x1.5V AA alkaline battery
|
|
Dimensions (DxH)
|
51 x 257 mm
|
|
Weight
|
360 g
|
|

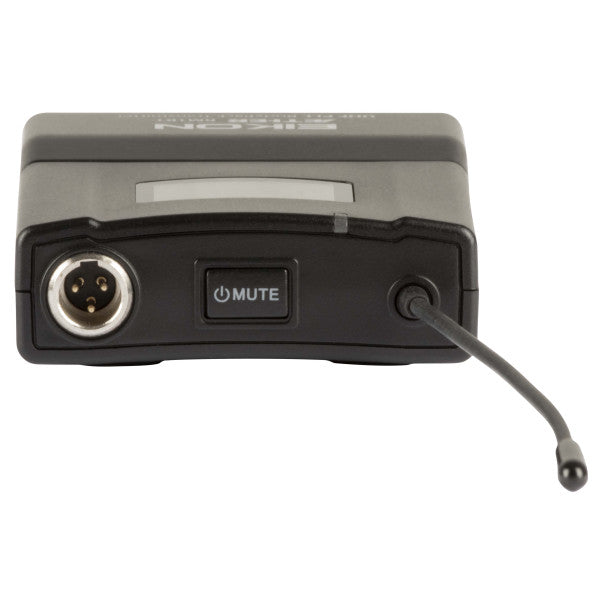

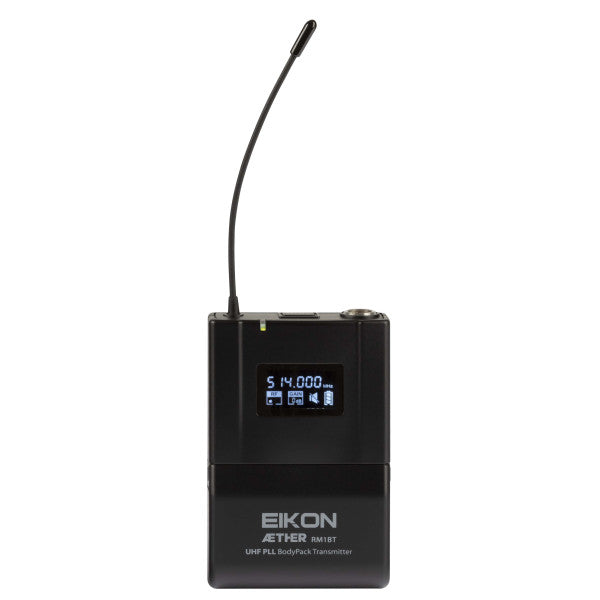

RM1BT – Bodypack UHF PLL Transmitter
|
|
RF Channels
|
388 total preset frequencies
|
|
RF Frequency Band
|
UHF A: 514 - 542 MHz (144 Ch)
|
|
|
UHF B: 606 - 614 MHz (40 Ch)
|
|
|
UHF C: 655 - 679 MHz (120 Ch)
|
|
|
UHF D: 823 - 832; 863 - 865 MHz (84 Ch)
|
|
RF Power
|
max 10 mW
|
|
Modulation method
|
FM (F3E)
|
|
RF Max deviation
|
± 50 KHz compressor-expander system
|
|
RF Frequency Stability
|
± 0.005% (-10 ÷ +50 °c)
|
|
Spurious Emission
|
under limits EN 300422
|
|
Frequency Response
|
50 Hz – 15000 Hz (±3 dB)
|
|
Microphone included
|
Headset condenser
|
|
Input connector
|
Mini Xlr 3P
|
|
Power Supply
|
2x1.5V AA alkaline battery
|
|
Dimensions (HxWxD)
|
98 x 63 x 24 mm
|
|
Weight
|
130 g
|
