| Input Section |
|
| Connectors |
1 x COMBO, 2x 1/4" JACK unbalanced |
| Inputs |
1x MIC/LINE 1x MONITOR (stereo/mono) |
| Input Impedance |
10 Kohm (LINE/MONITOR), 1 Kohm (MIC) |
| Max Input Level |
+20 dBu (MONITOR), +10 dBu (LINE), -15 dBu (MIC) |
| Output Section |
|
| Connector |
1x XLR-M, 1x 1/4" or 1/8" JACK stereo |
| Outputs |
1x MIC/LINE THRU, 1x HEADPHONES stereo |
| Max output 32ohm |
2x 100mW |
| Max output 600ohm |
2x 100mW |
| Load Impedance |
min 16 ohm |
| Max gain |
+8 dB (MONITOR), +14dB (LINE), +35dB (MIC) |
| System Performance |
|
| Distortion (THD) |
0.02 % |
| Noise |
< -98 dBu unweighted |
| Frequency Response |
20 Hz - 20 KHz (-3 dB) |
| Power Supply |
|

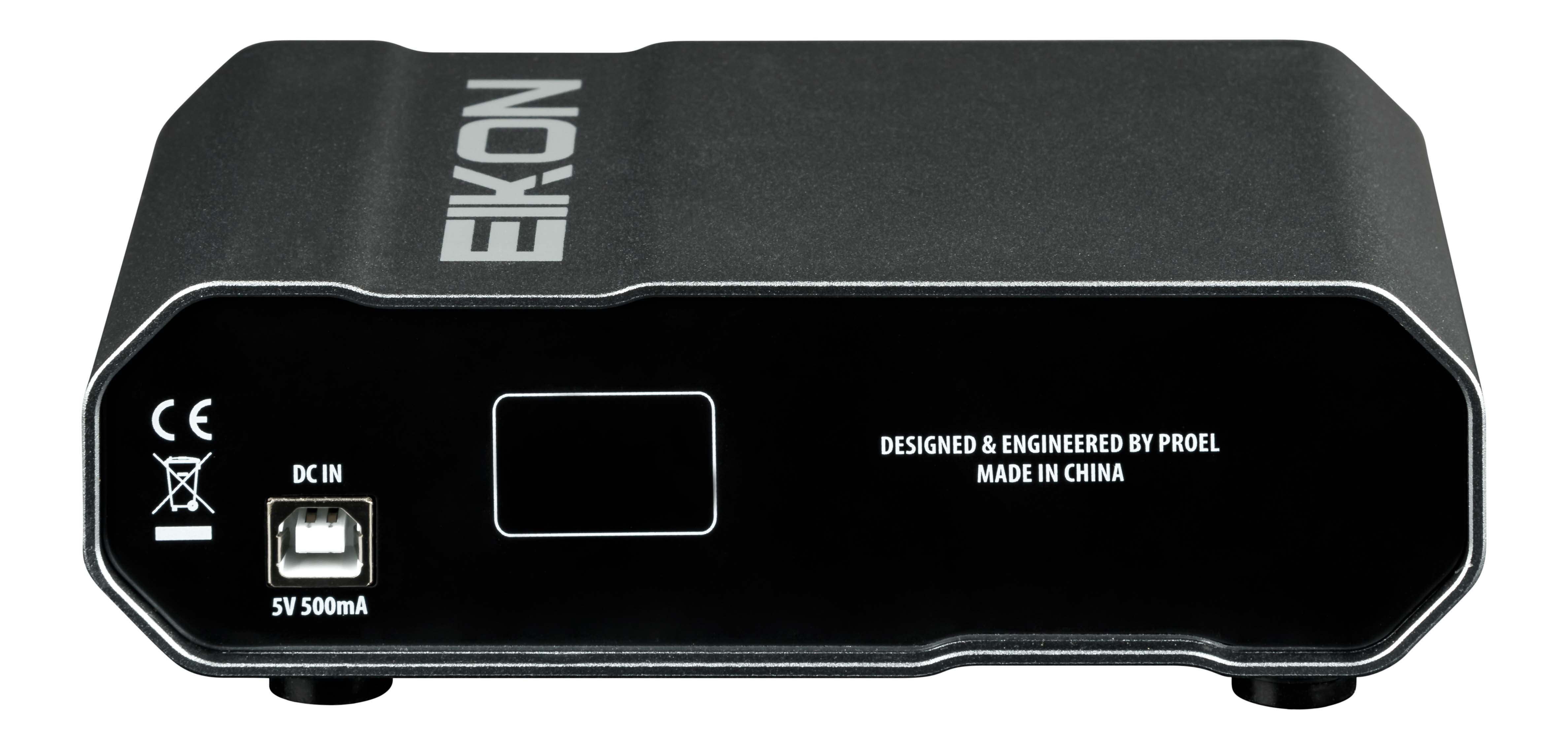

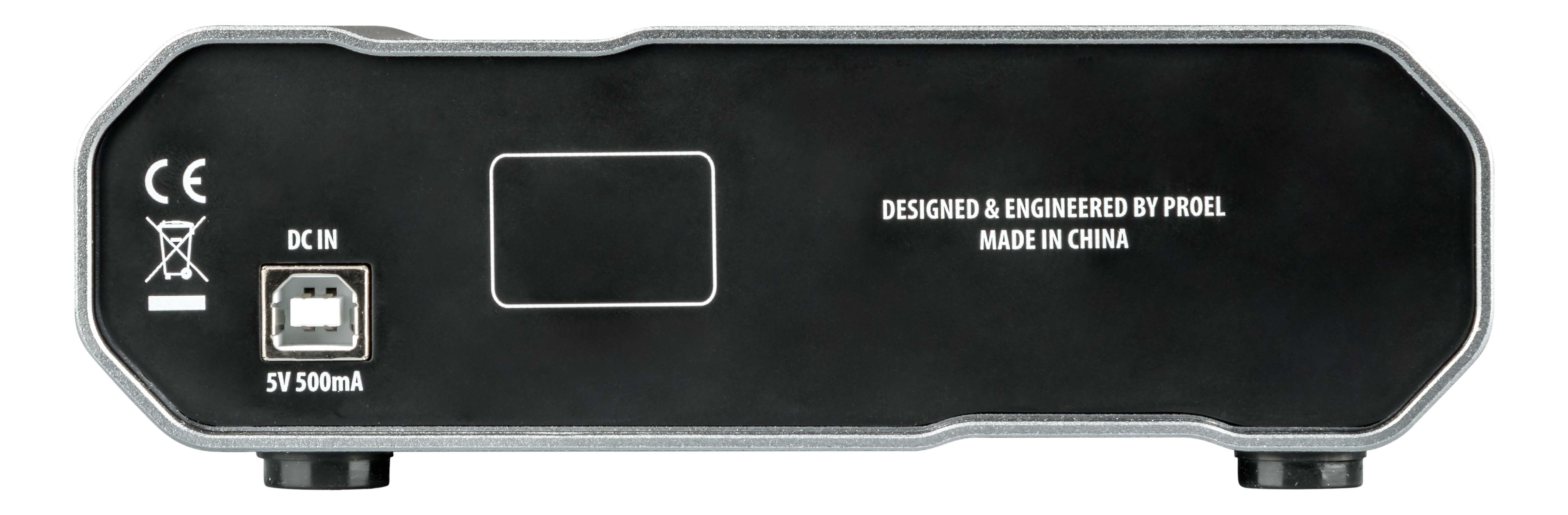

| Connector |
USB Type B |

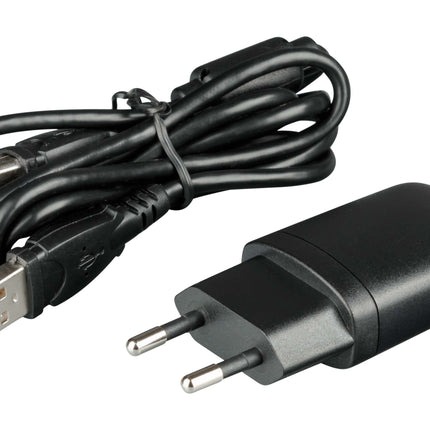

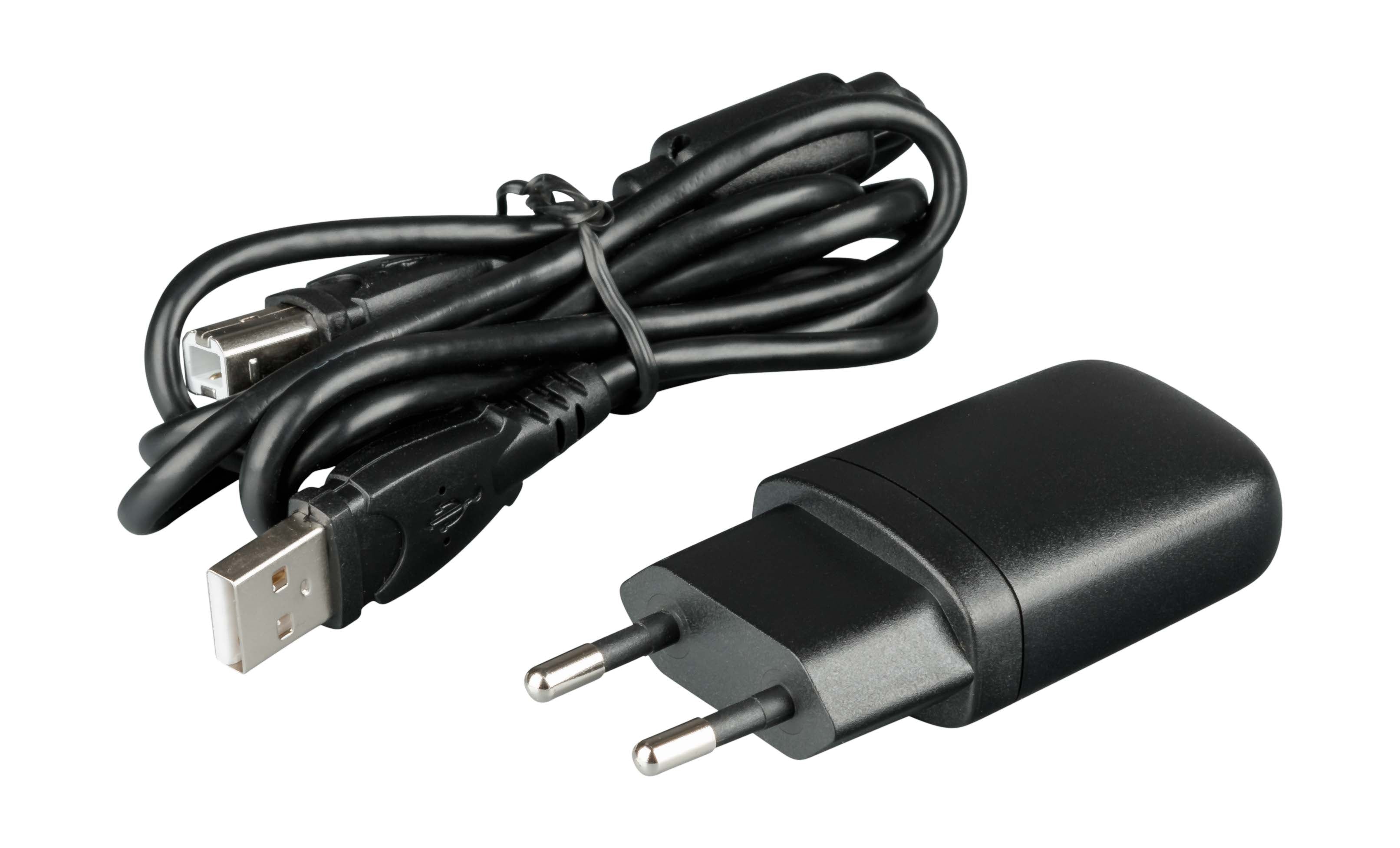

| AC/DC adapter input |
100-240V~ (±10%) 50/60Hz |
| AC/DC adapter output |
5V--- 1A (5W)
|
| Supplied cable |
1,2m USB Type A - Type B |
|
General |
|

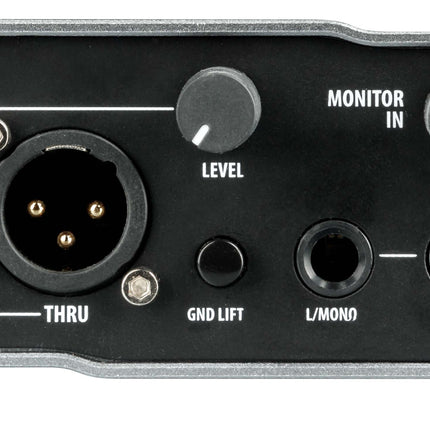

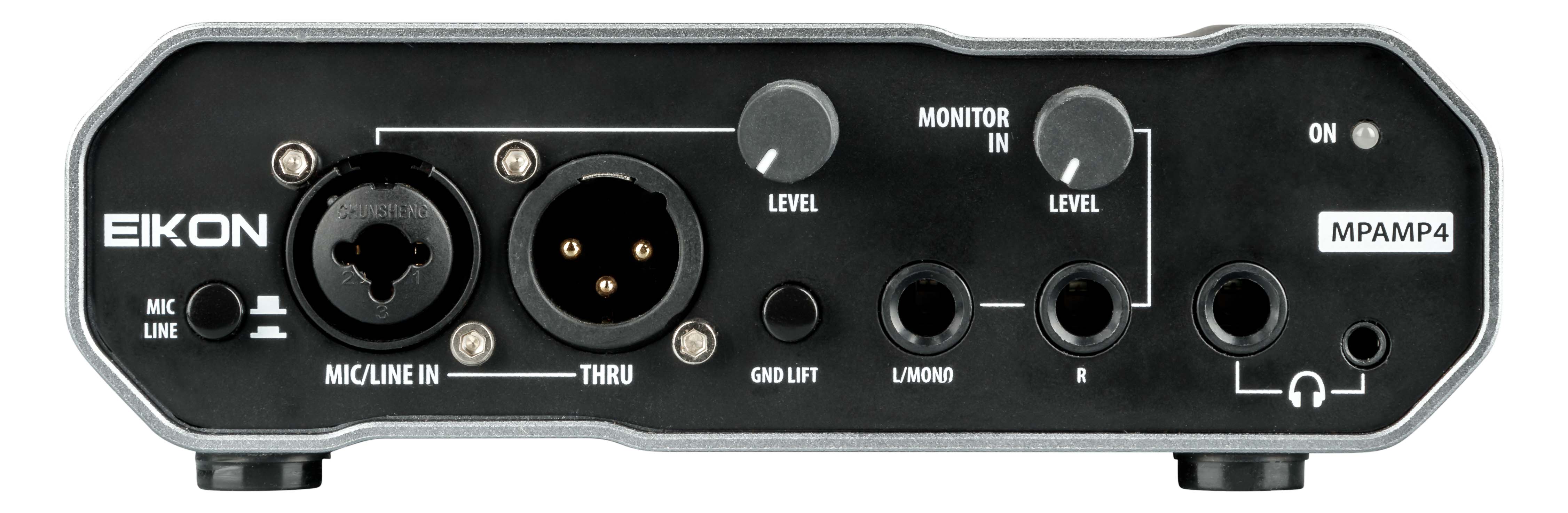

| Controls |
MIC/LINE LEVEL, MONITOR LEVEL,
MIC/LINE SELECTOR, GND LIFT |
| Indicators |
Power ON |
| Dimensions (W x H x D) |
160 x 52 x 106 mm (6.30 x 2.05 x 4.17 ") |
| Weight |
0,52 Kg (main)
0,08 Kg (adapter with cable) |
