Eikon UHF EIKON J&J V2 wireless jack transmission system

Name: Eikon UHF EIKON J&J V2 wireless jack transmission system
Brand: Eikon
SKU: EKJJV2
Price: 35.58 EUR
Availability: InStock

Product form

SKU: EKJJV2
Barcode: 8032496930266

22 in stock

€35,58 Excl. VAT

Where to buy?

Find your nearest dealer here

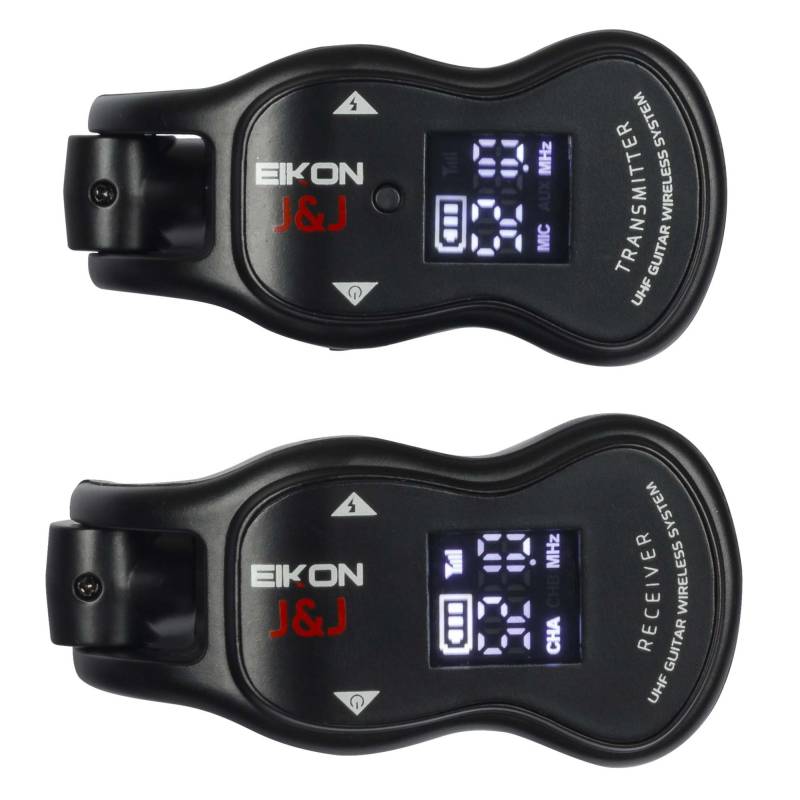

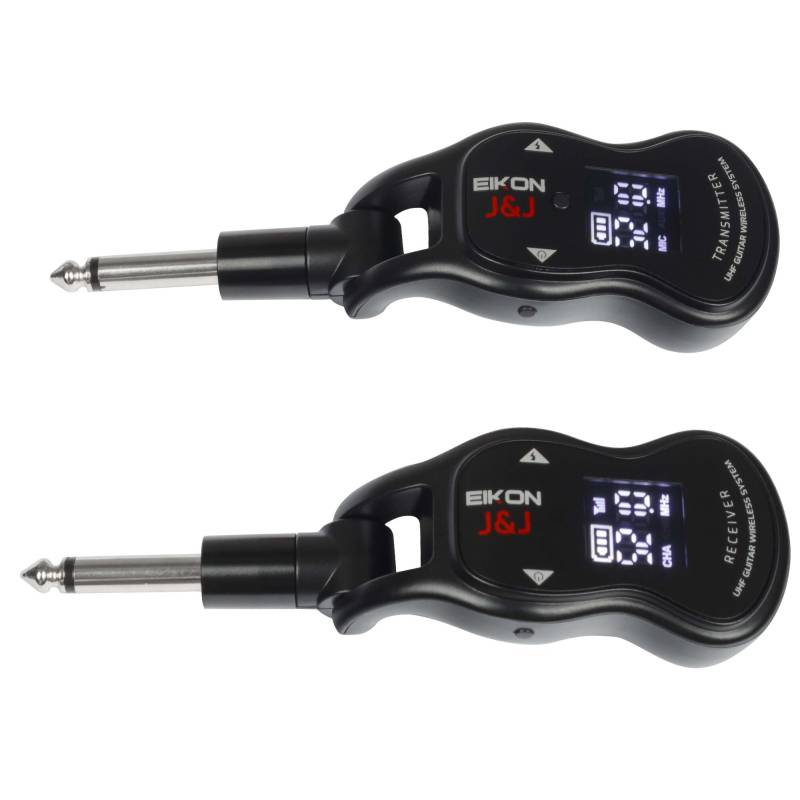

EKJ&J – UHF PLL Transmitter
RF Channels	16 frequency presets (50 for 512 - 541 MHz model)
RF Frequency Band	UHF: 512 - 541 MHz or 863 – 865 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	120 mA
Operating Time	3 to 5 hrs
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&J –UHF PLL Receiver
RF Channels	16 frequency presets (50 for 512 - 541 MHz model)
RF Frequency Band	UHF: 512 - 541 MHz or 863 – 865 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	> 102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&J – UHF PLL Transmitter
RF Channels	16 frequency presets (50 for 512 - 541 MHz model)
RF Frequency Band	UHF: 512 - 541 MHz or 863 – 865 MHz
RF Frequency Stability	±0,002%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Output Power	10mW
Sub-harmonic	< 40 dB
Operating current	120 mA
Operating Time	3 to 5 hrs
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg

EKJ&J –UHF PLL Receiver
RF Channels	16 frequency presets (50 for 512 - 541 MHz model)
RF Frequency Band	UHF: 512 - 541 MHz or 863 – 865 MHz
RF Frequency Stability	±0,005%
RF Oscillation Mode	Quartz locked
RF Modulation Type	Wideband FM Stereo
RF Receiving Sensitivity	< -98 dBm
RF Receiving range	15 to 30 meters depending on used band conditions
Audio dynamic range	106 dBm
THD Distortion	< 0.5%
S/N Ratio	> 102 dBA
Audio output connector	6.3 mm Mono Jack
Output Power Max (continuous)	400 mW
Operating current	80 mA
Operating Time	5 hours
Operating Power Supply	3.7 V / 500 mA - built-in Lithium battery
Charging mode	USB charging 5V – type USB mini connector
Charging time	3 hours
Weight	0.05 Kg
