| Microphone Preamp |
| Type |
XLR female, balanced |
| Frequency Response (±3.0 dB) |
10 Hz to 22 kHz |
| Input Impedance (Balanced) |
1,32 kΩ |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.005% |
| S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) |
> 99 dB |
| Common Mode Rejection Ratio (1 kHz, 40 dB Gain) |
> 65 dB |
| Gain Control Range (± 1 dB) |
0 dB to 45 dB |
| Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N) |
-2 dBu |
| Phantom Power (±2 VDC) |
+48 VDC |
| Line Input |
| Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N) |
+22 dBu |
| Type |
JACK ¼" TRS female, balanced |
| Input Impedance |
15 kΩ |
| Instrument Input |
| Max Input Level (Unity Gain, 1 kHz @ 0.1% THD+N) |
+22 dBu |
| Type |
JACK ¼" TS female, unbalanced |
| Input Impedance |
1 MΩ |

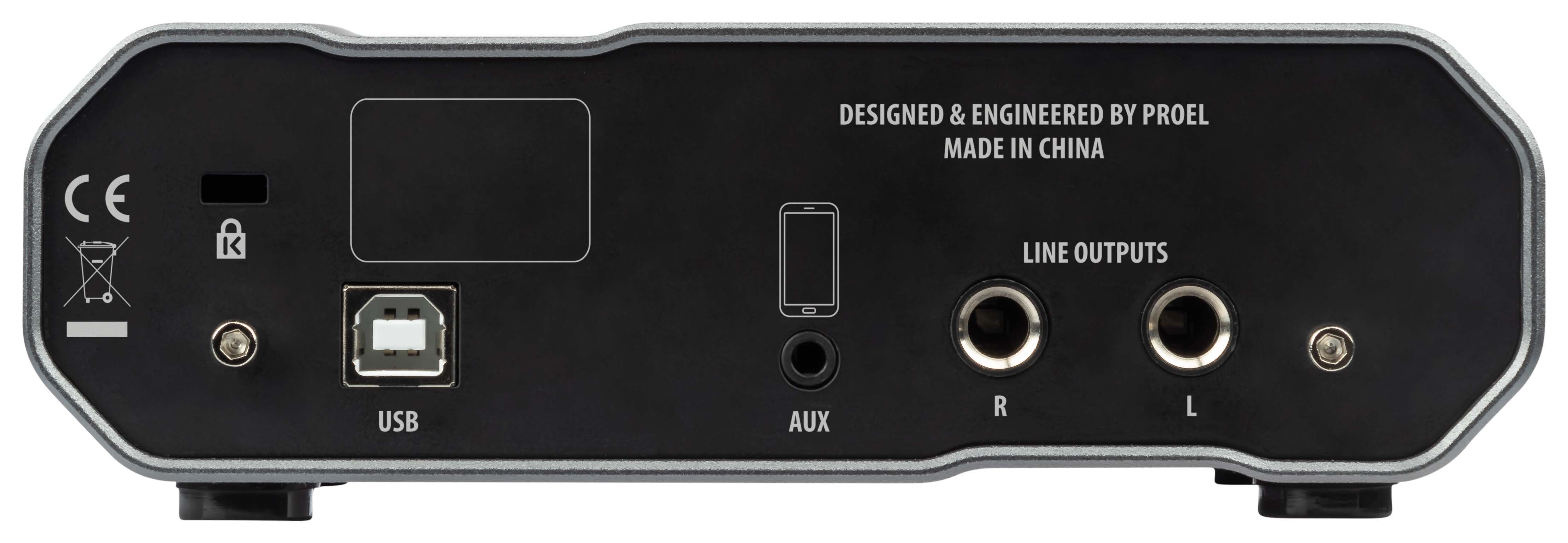

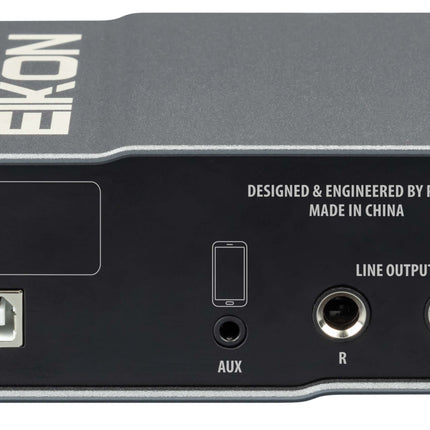

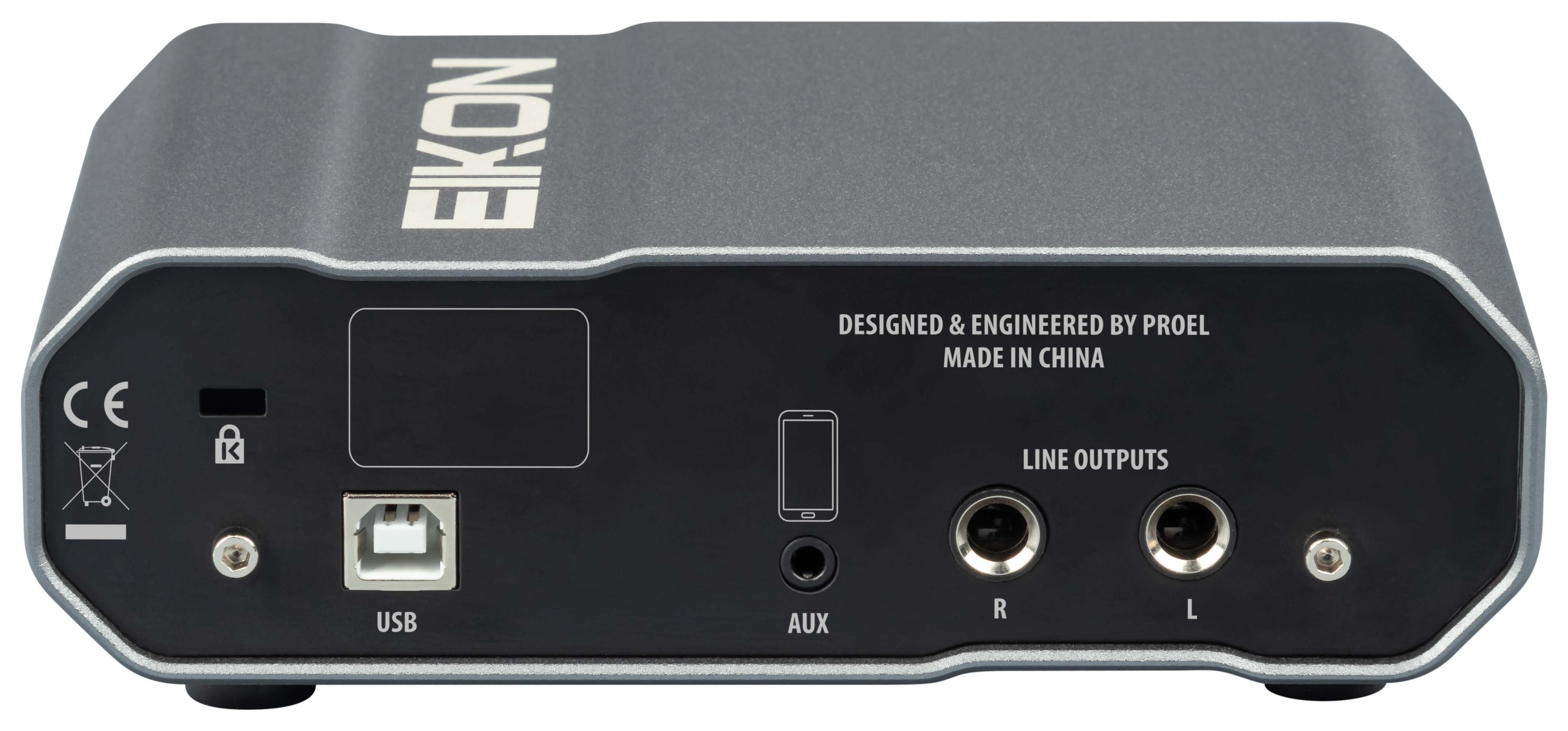

| Line Outputs |
| Type |
JACK ¼" TRS female, balanced |
| Output Impedance |
600Ω |
| Headphone Output |
| Type |
JACK ¼" TRS active stereo |
| Maximum Output |
50 mW/ch. @ 32Ω Load |
| Frequency Response (±1.0 dB) |
10 Hz - 25 kHz |
| Digital Audio |
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
108 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
109 dB |
| Bit Depth |
16 / 24 /32 |
| Reference Level for 0 dBFS |
+10 dBu |
| Internal Sample Frequency Selections (kHz) |
44.1, 48, 88.2, 96, 176.4, 192 |
| Power |
USB bus-powered |
| Physical |
| Height |
52 mm (2.05") |
| Depth |
106 mm (4.17") |
| Width |
160 mm (6.30") |
| Weight |
0.55 kg (1.21 lbs) |
