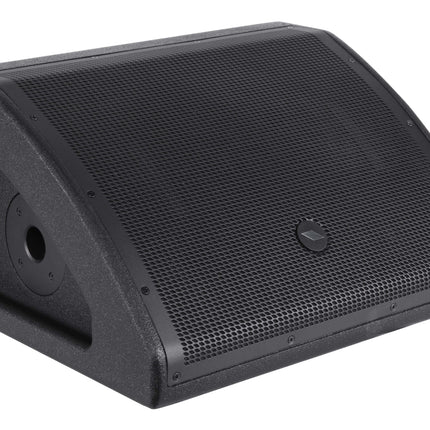

Proel Sound systems Active Stage Monitor WD10AV2

Name: Proel Sound systems Active Stage Monitor WD10AV2
Brand: Proel
SKU: WD10AV2
Price: 327.44 EUR

Product form

SKU: WD10AV2
Barcode: 8032496633679

Next Arrival

€327,44 Excl. VAT

Where to buy?

Find your nearest dealer here

System type	2-way coaxial vented stage monitor
Low Frequency Device	10” woofer with 2"VC
High Frequency Device	1” compression driver with 1"VC
Angular Coverage	80°
Frequency response	60 Hz - 20 kHz
Max SPL at 1mt (peak)	123 dB
Amplifier Continuous Power	HF: 50 W CLASS AB, LF: 200W CLASS D with SMPS
Input Impedance	30 kohm balanced, 15 kohm unbalanced
Input Sensitivity	0 dBu

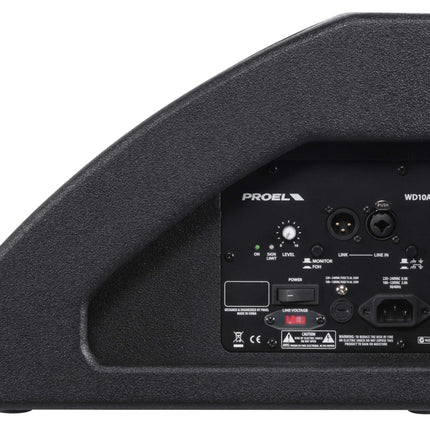

Controls	LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors	INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply	230 VAC or 120 VAC - 50/60 Hz
Maximum Consumption	315 W
Rated Consumption*	165 W
Construction	Plywood with black anti-scratch polyurethane paint

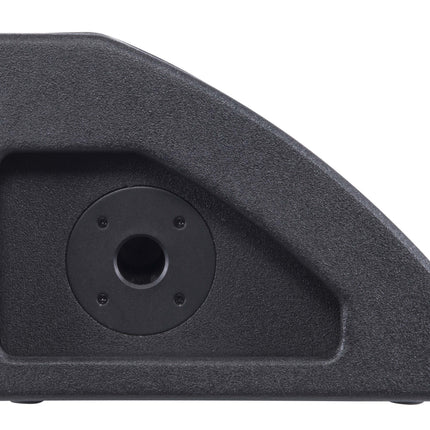

Pole Adapter	1 x side
Handles	2 x sides
Monitor taper	36°
Weight	12 kg (26,4 lb)
Dimensions (W x H x D)	490x265x375 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
