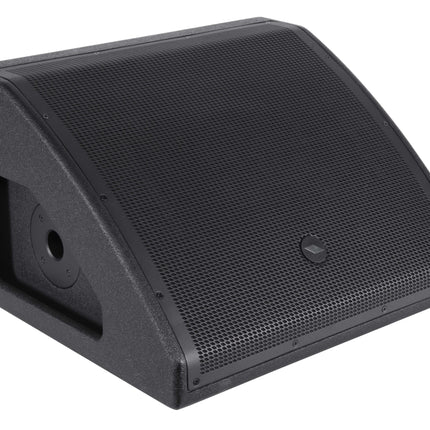

Proel Sound systems Active Stage Monitor WD12AV2

Name: Proel Sound systems Active Stage Monitor WD12AV2
Brand: Proel Sound
SKU: WD12AV2
Price: 351.03 EUR

Product form

SKU: WD12AV2
Barcode: 8032496633686

Next Arrival

€351,03 Excl. VAT

Where to buy?

Find your nearest dealer here

System type	2-way coaxial vented stage monitor
Low Frequency Device	12” woofer with 2.5"VC
High Frequency Device	1” compression driver with 1.35"VC
Angular Coverage	80°
Frequency response	50 Hz - 20 kHz
Max SPL at 1mt (peak)	124 dB
Amplifier Continuous Power	HF: 50 W CLASS AB, LF: 300W CLASS D with SMPS
Input Impedance	30 kohm balanced, 15 kohm unbalanced
Input Sensitivity	0 dBu

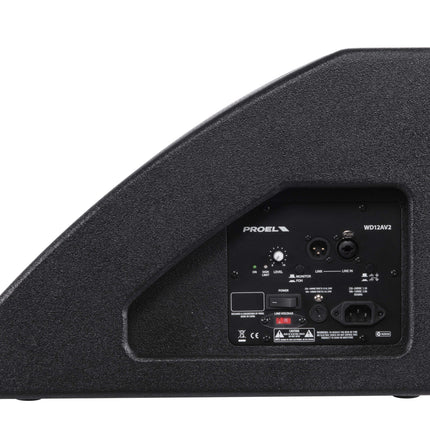

Controls	LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors	INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply	230 VAC or 120 VAC - 50/60 Hz
Maximum Consumption	445 W
Rated Consumption*	235 W
Construction	Plywood with black anti-scratch polyurethane paint
Pole Adapter	1 x side
Handles	2 x sides
Monitor taper	36°
Weight	15 kg (33 lb)
Dimensions (W x H x D)	510x310x440 mm
* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
