Proel Sound systems DI D10A

Description

Description

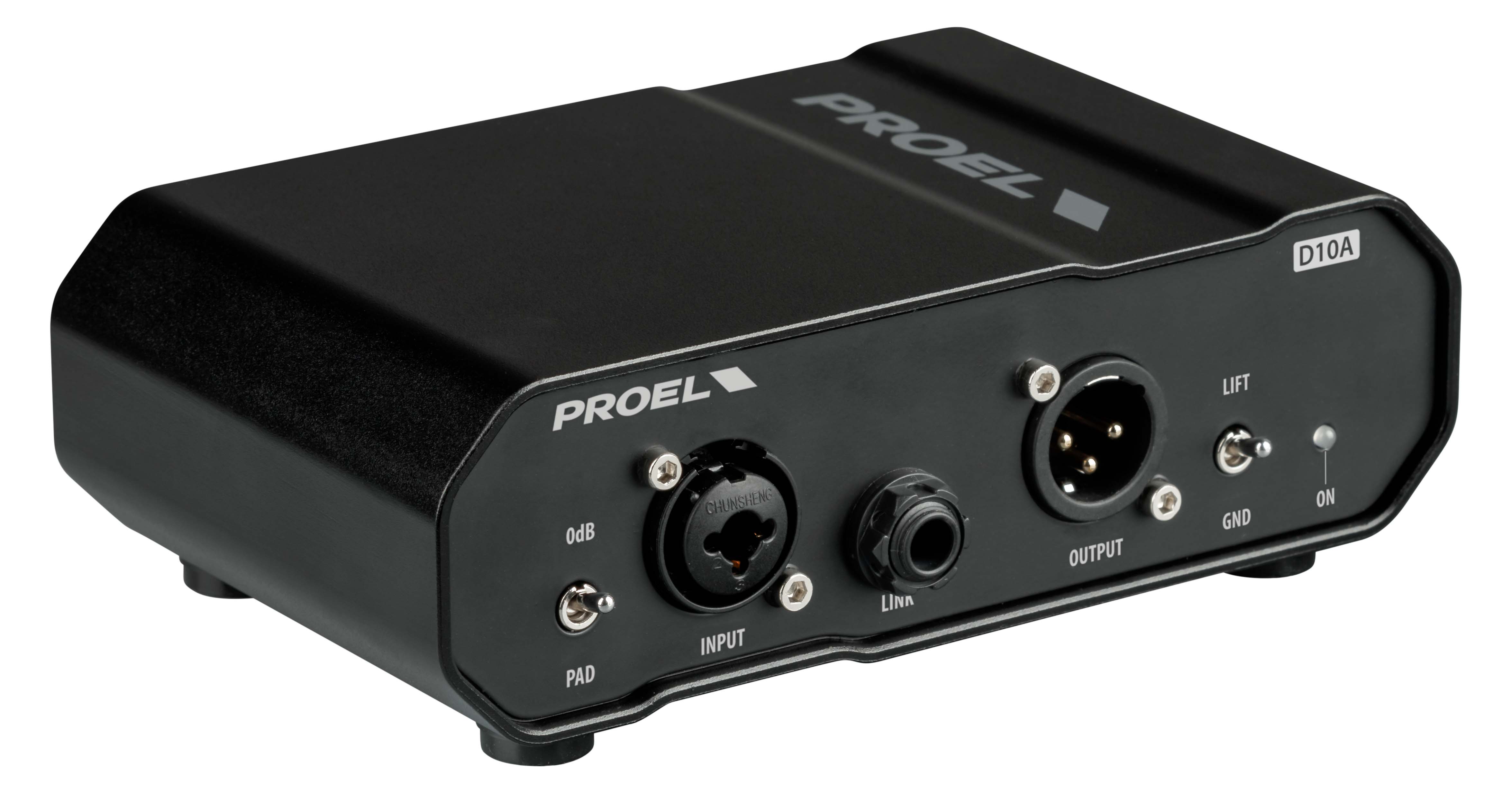

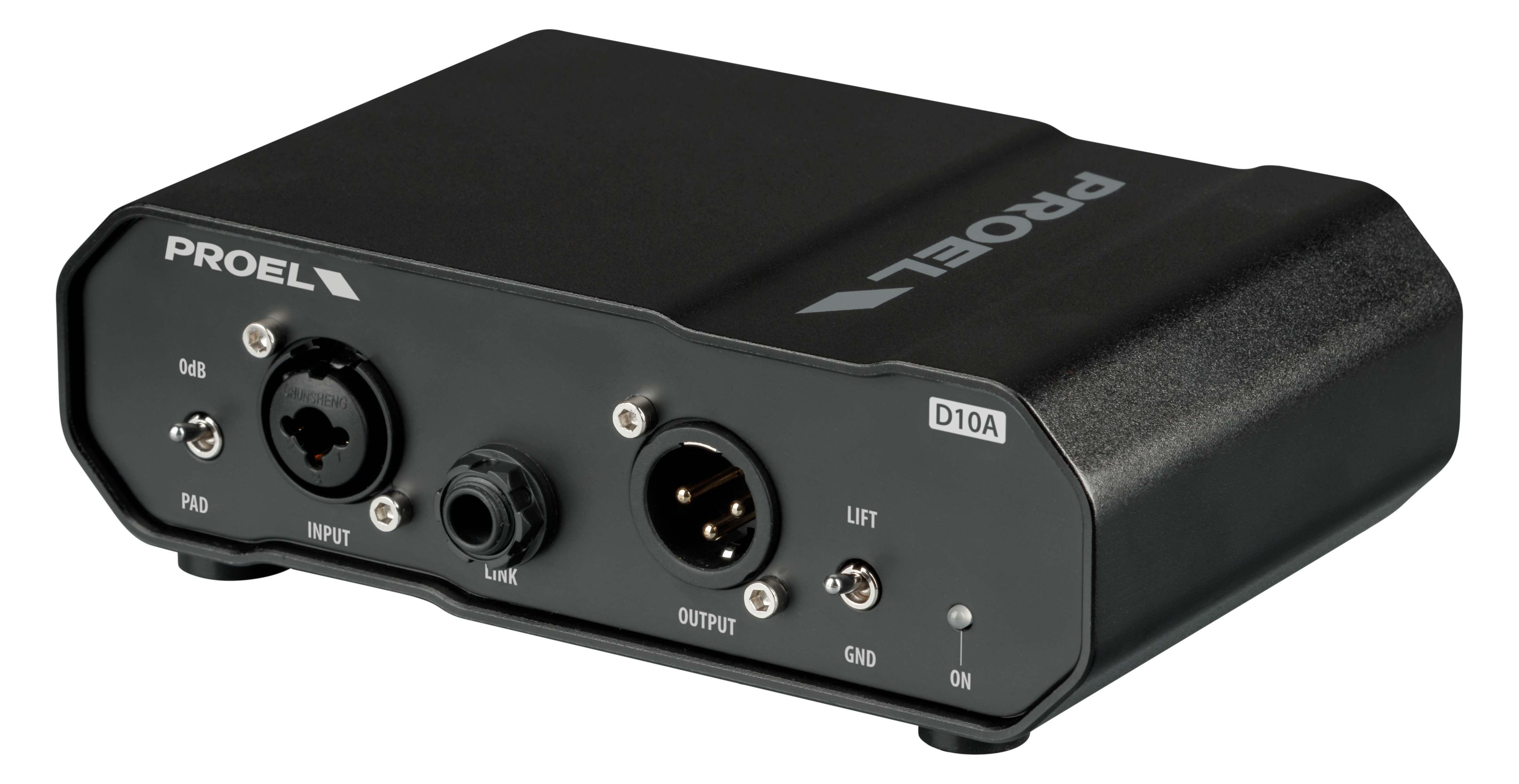

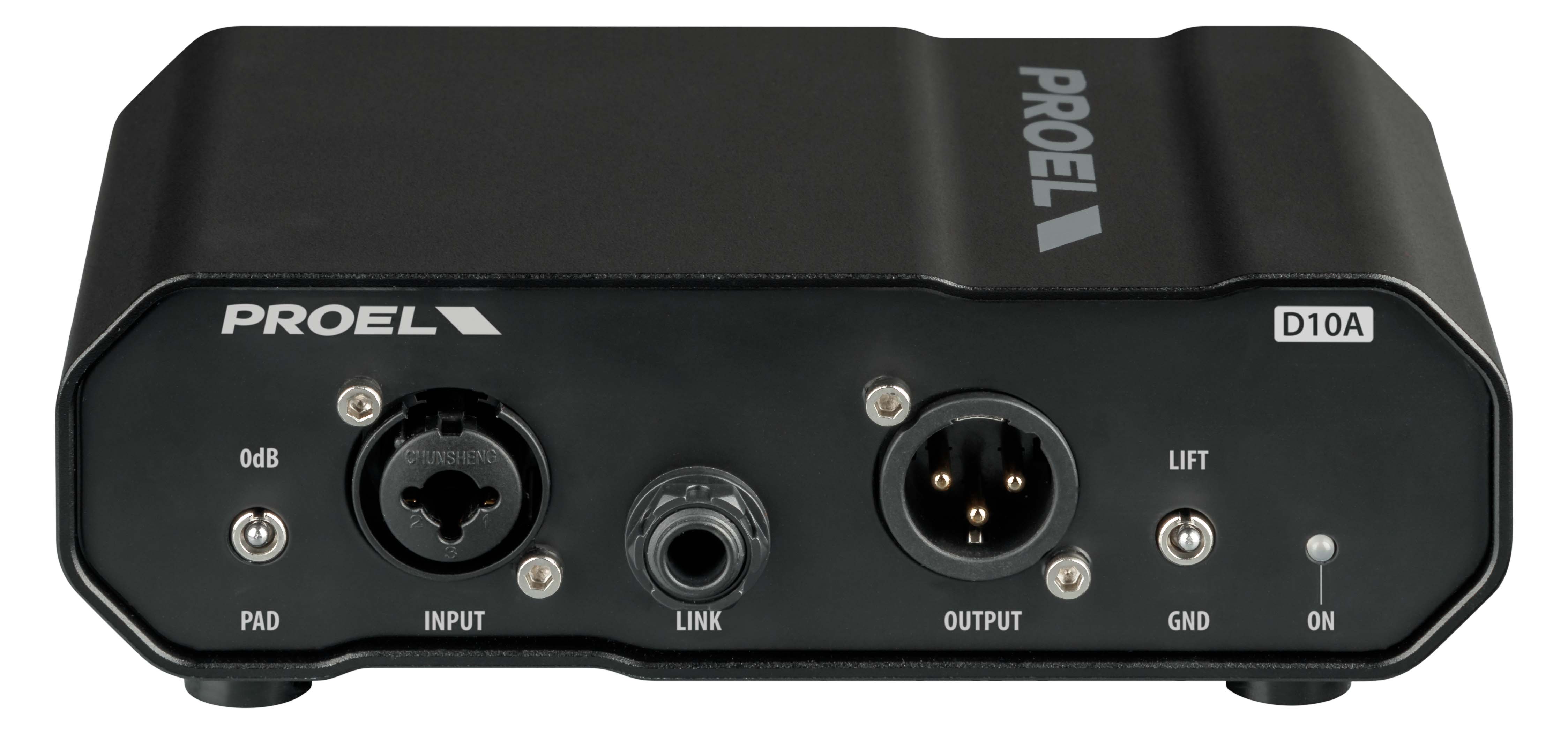

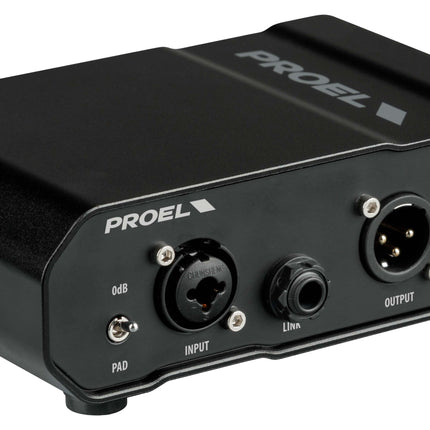

Active Direct Injection Box D10A

DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.

D10A is an active direct box with transformer and requires the phantom power to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible. The advantage of active instead of passive DIBOX is null insertion loss and less output hum and noise.

Technical Specs:

Input Section

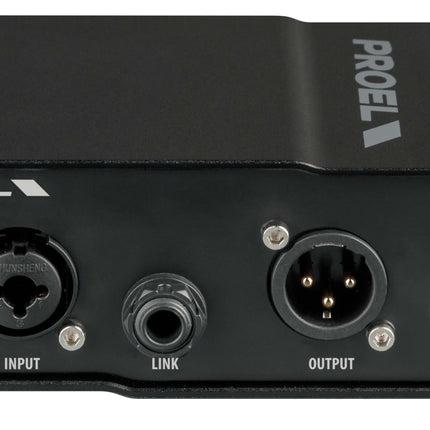

Connectors  1 x COMBO XLR-F + 1/4" JACK unbalanced

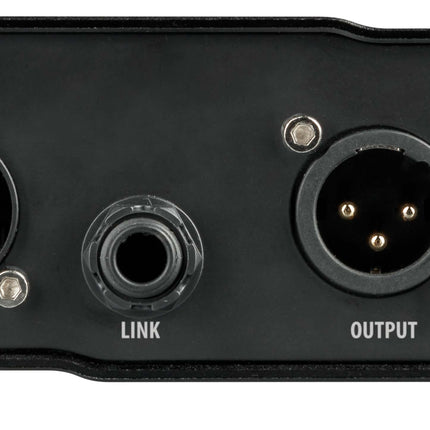

Link 1 x 1/4" JACK unbalanced
Input Impedance 1 Mohm (no PAD) / 47 Kohm (with PAD)
Max Input Level + 16 dBu (no PAD) / + 42 dBu (with PAD)
Output Section
Connector  XLR-M balanced
Min Load Impedance 600 Ohms or greater
Output  Transformer Balanced (fully isolated)
Max Output Level +16 dBu
System Performance
Distortion THD+N 0dBu < 0.01 %
Noise  < -112 dBu unweighted
Frequency Response  10 Hz to 100 kHz (-6 dB)
Insertion Loss 0 dB
General

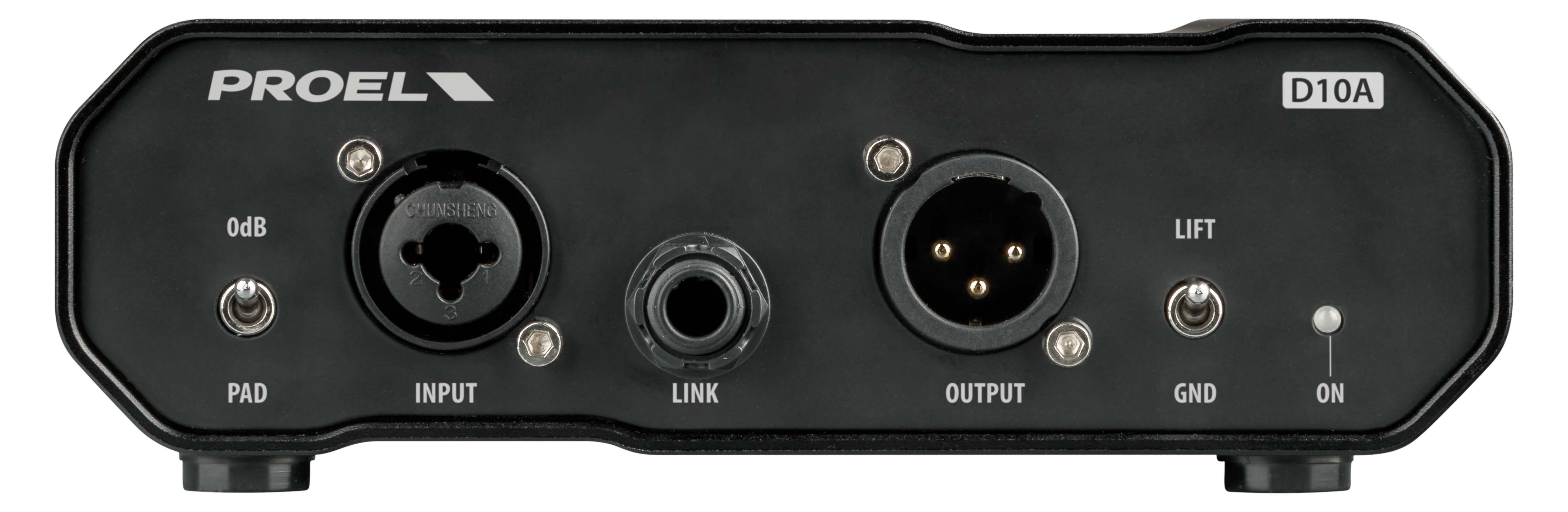

Controls PAD -26 dB, GND LIFT
Indicators Power ON
Power Supply  Phantom Power +48 volts
Dimensions (W x H x D)  160 x 52 x 106 mm (6.30 x 2.05 x 4.17 ")
Weight 0,52 Kg

Read more

Proel Sound systems DI D10A

Product form

Active Direct Injection Box D10A DI Boxes perform several important functions: they are designed for impedance matching and balancing the... Read more

Pickup at our warehouse?

SKU: D10A
Barcode: 8032496920366
