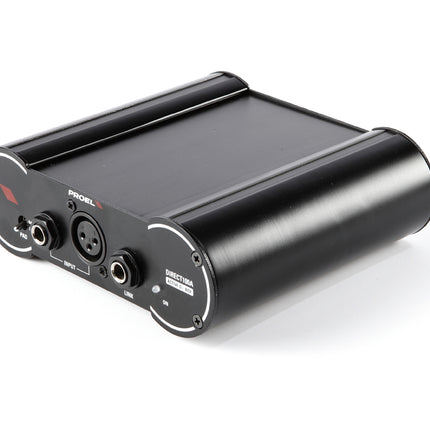

Proel Sound systems DI DIRECT100A

Name: Proel Sound systems DI DIRECT100A
Brand: Proel
SKU: DIRECT100A
Price: 41.59 EUR

Product form

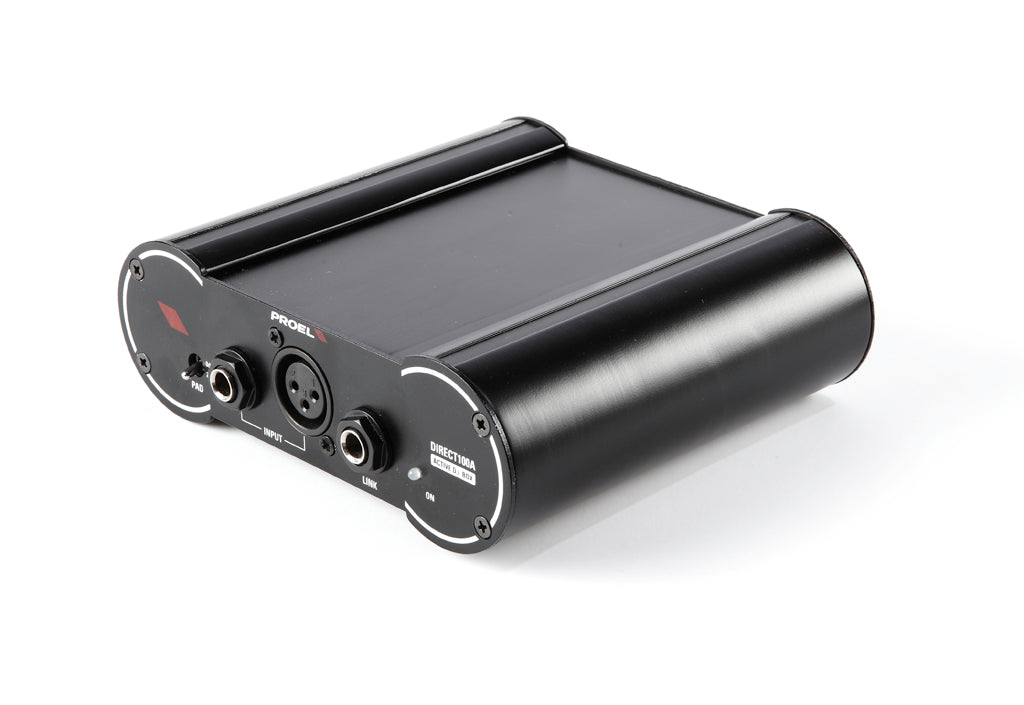

Active Direct Injection Box DIRECT100A The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement... Read more

SKU: DIRECT100A
Barcode: 8032496007807

Next Arrival

Where to buy?

Find your nearest dealer here

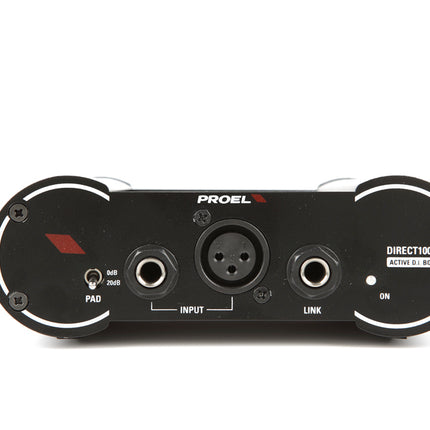

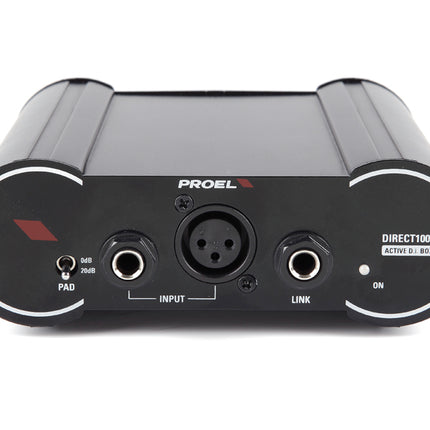

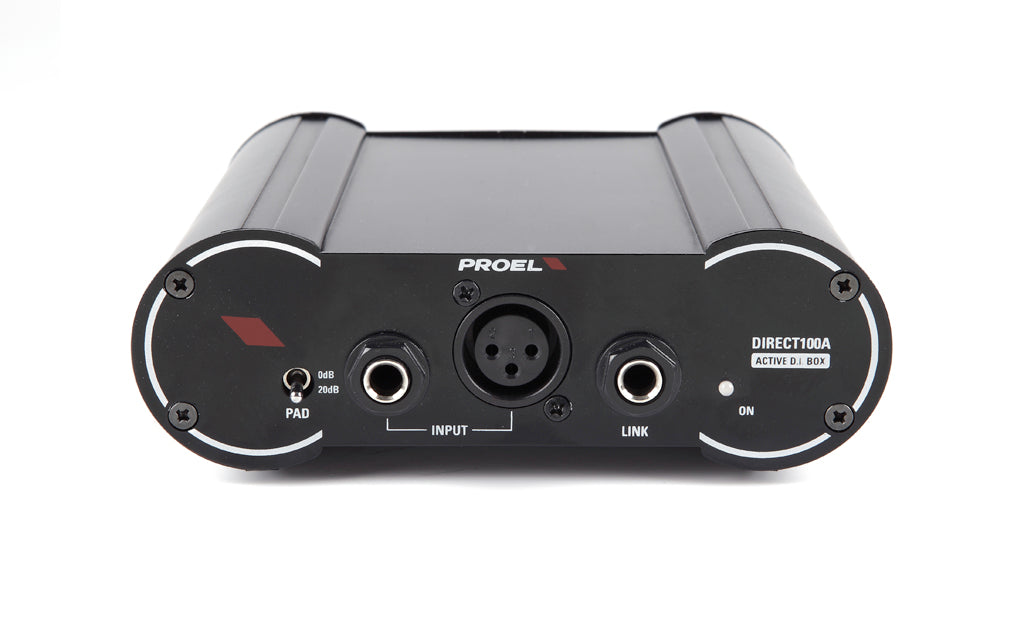

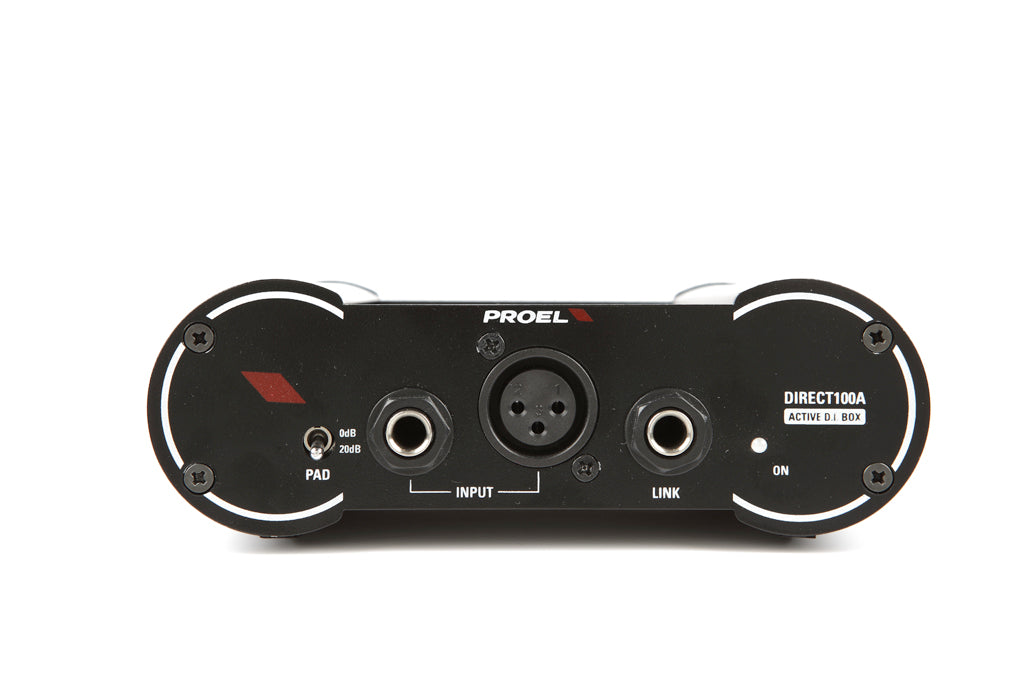

Input Section
Input Impedance	>250 Kohm
Max Input Level	+6 (PAD at 0) / +26 (PAD at 20) dBu
Connectors	1 x XLR-F + 1 x 1/4" jack unbalanced
Link	1 x 1/4" jack unbalanced

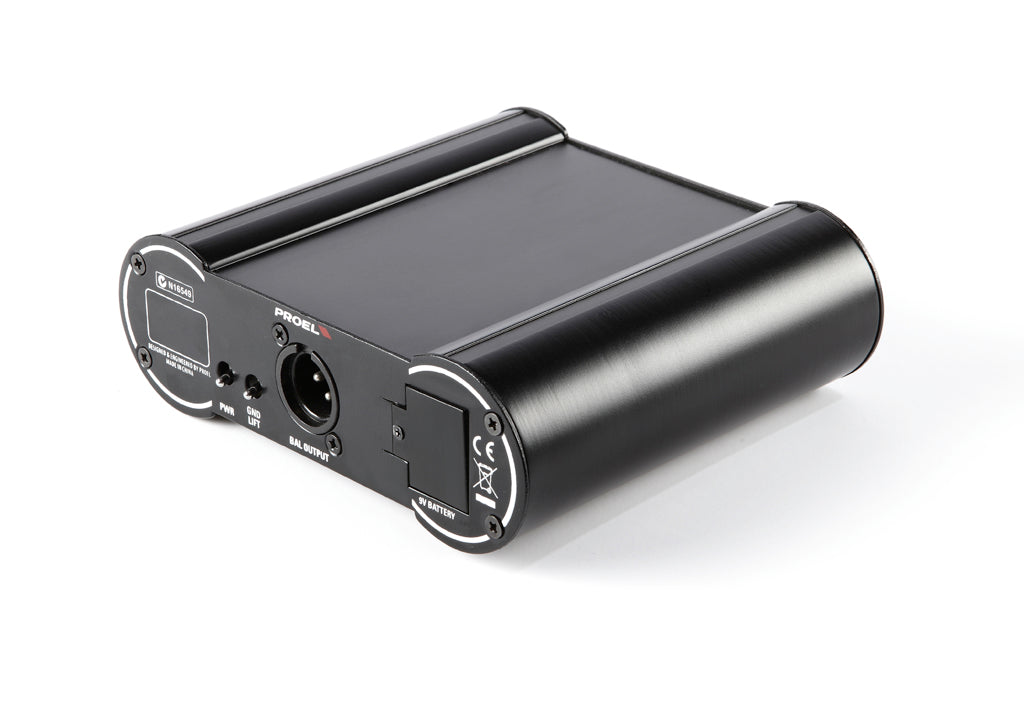

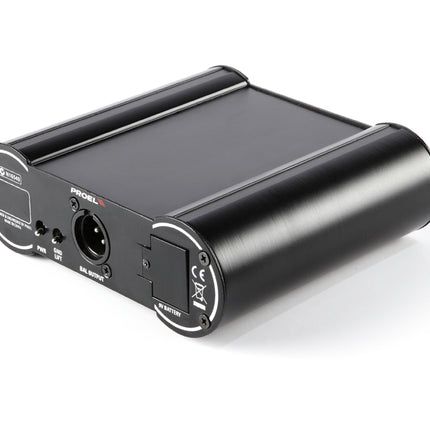

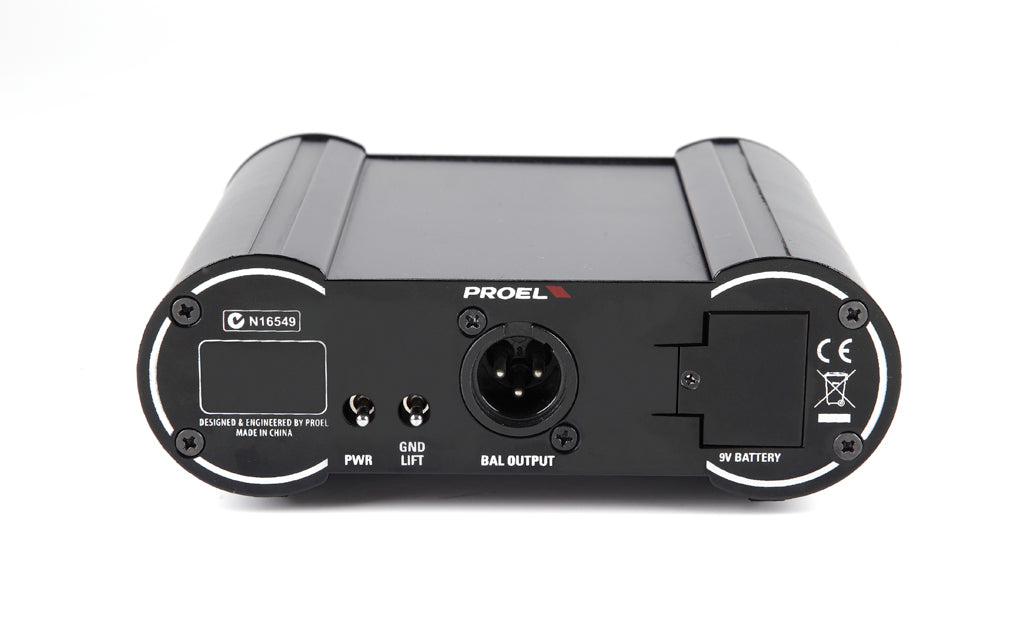

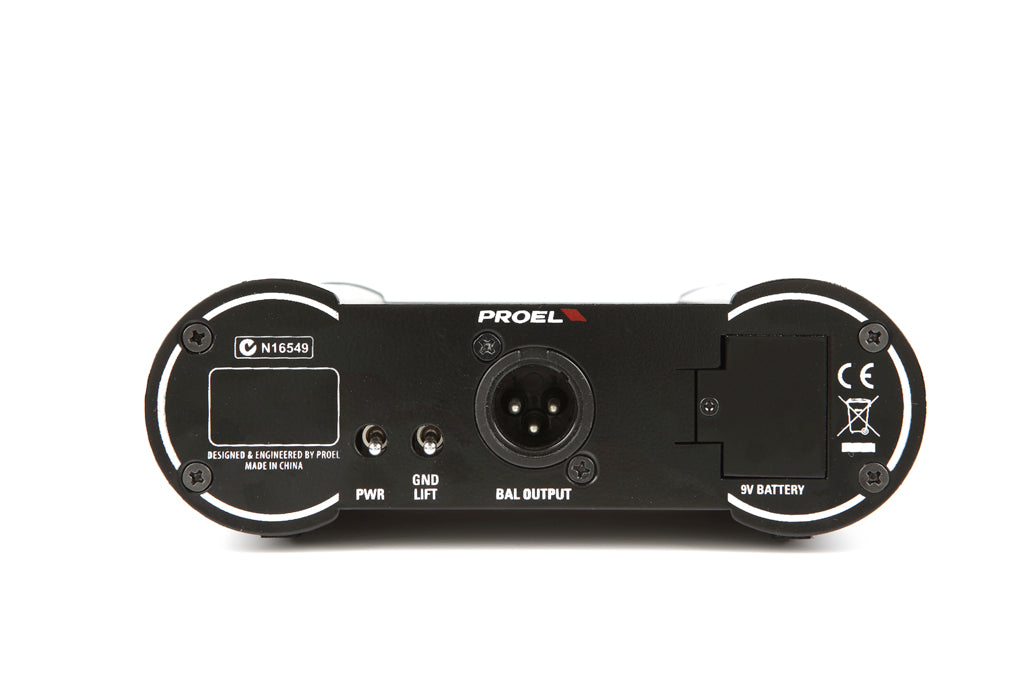

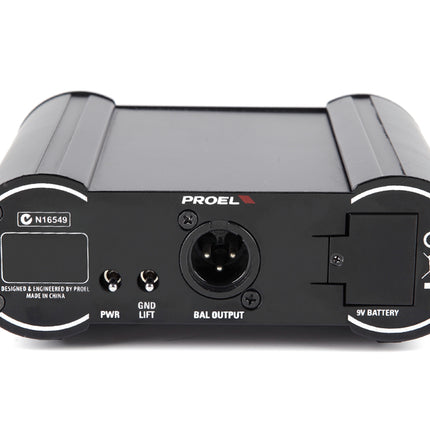

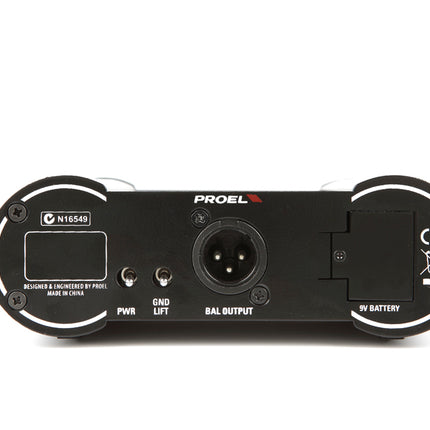

Output Section
Output	Transformer Balanced (fully isolated)
Insertion Loss	0 dB
Load Impedance	600 Ohms or greater
Connector	XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu	< 0.005 %
Noise	< -105 dBu unweighted
Frequency Response	10 Hz to 40 kHz (-3 dB)
General
Controls	ON/OFF, PAD -20, GND LIFT
Indicators	Power ON
Phantom Power	+18 volts DC to +48 volts DC
Battery	9 volt PP3 type alkaline
Dimensions (W x H x D)	152 x 50 x 134 mm
Weight (excluding batteries)	0,70 Kg
