Proel Sound systems DI DIRECT100P

Name: Proel Sound systems DI DIRECT100P
Brand: Proel
SKU: DIRECT100P
Price: 29.49 EUR

Product form

Passive Direct Injection Box DIRECT100P The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement... Read more

SKU: DIRECT100P
Barcode: 8032496007814

Next Arrival

Where to buy?

Find your nearest dealer here

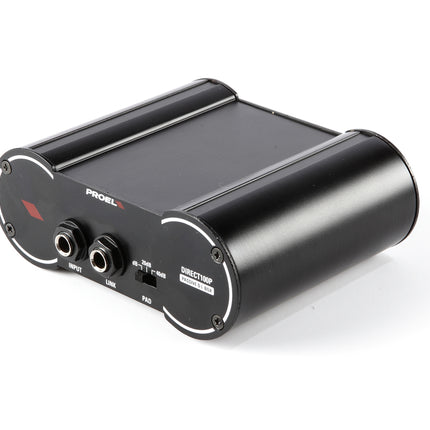

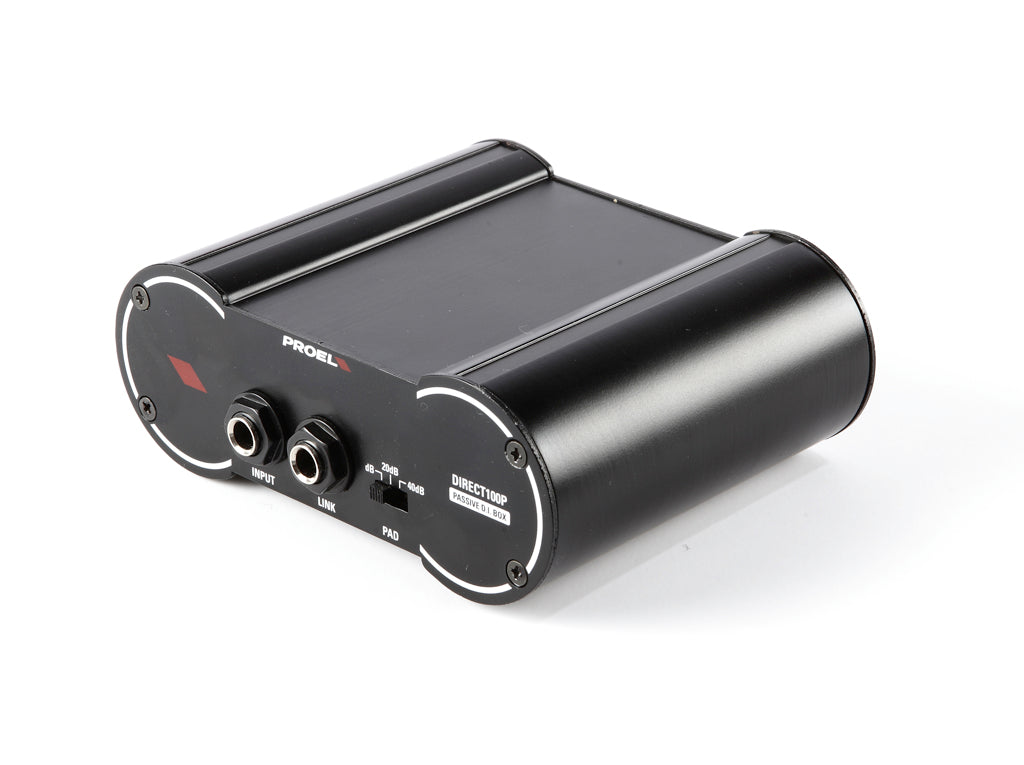

Input Section
Input Impedance	>250 Kohm
Max Input Level	+10 (PAD at 0) / +30 (PAD at 20) / +50 (PAD at 40) dBu
Connectors	1 x 1/4" jack unbalanced
Link	1 x 1/4" jack unbalanced
Output Section

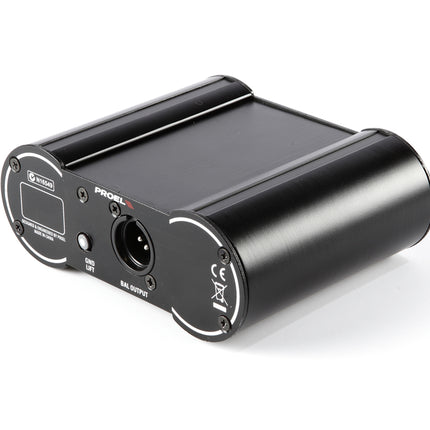

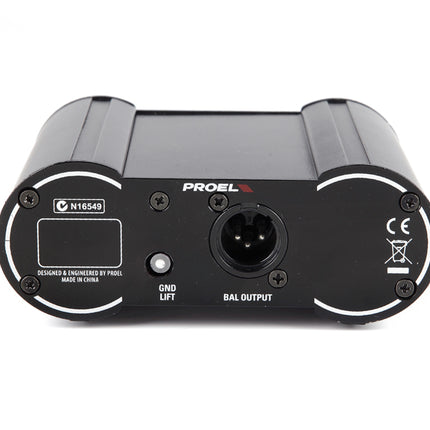

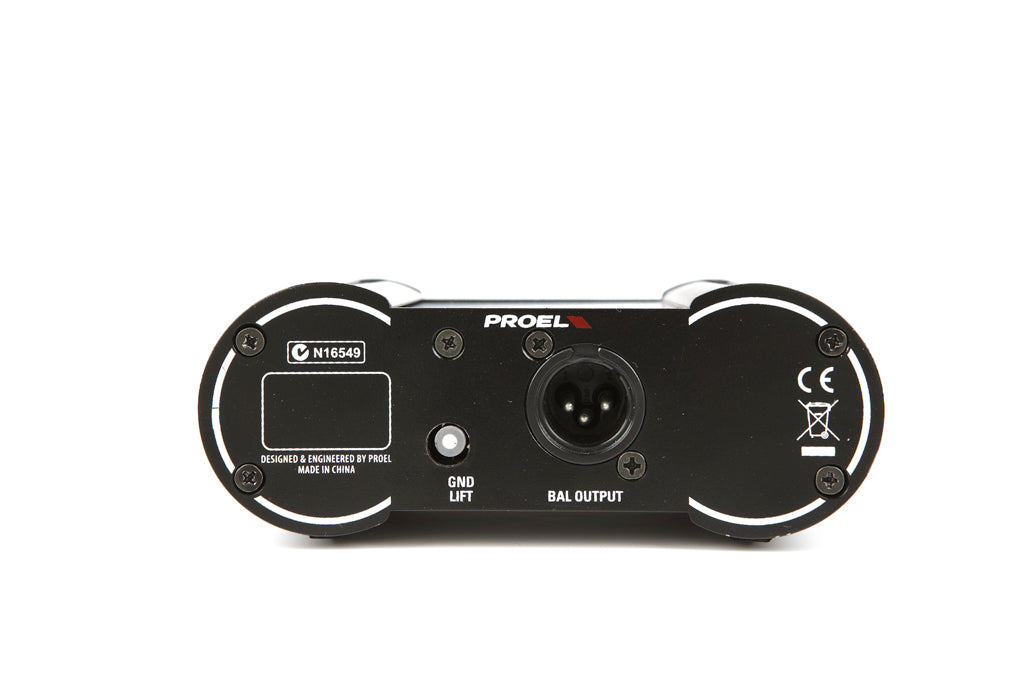

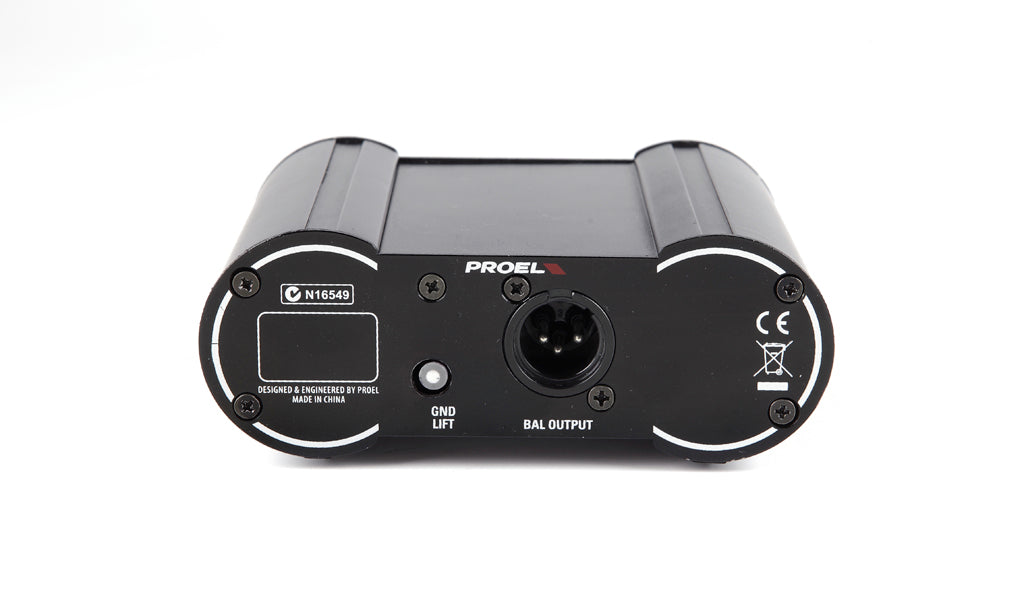

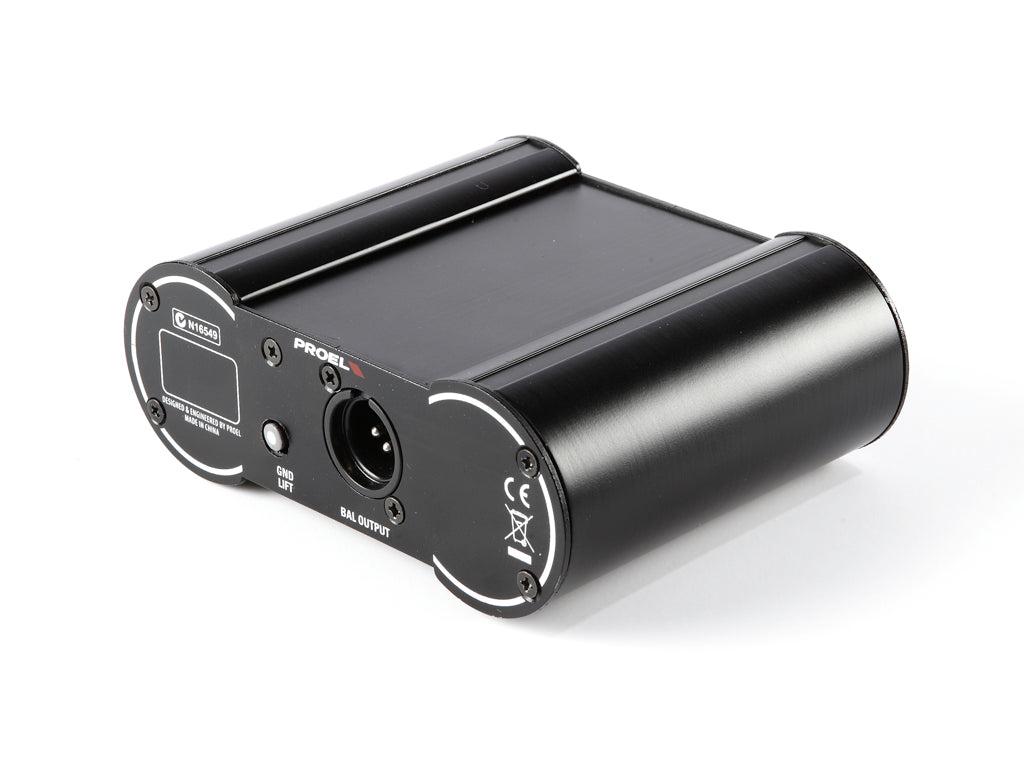

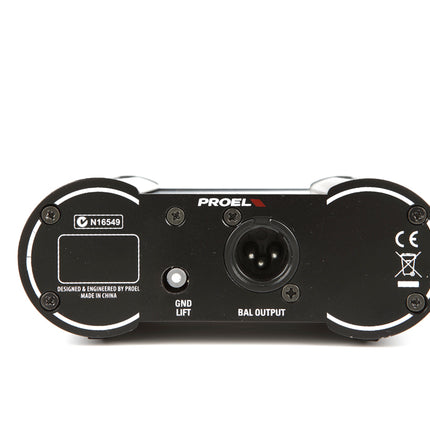

Output	Transformer Balanced (isolated with shielding)
Insertion Loss	26 dB
Load Impedance	600 Ohms or greater
Connector	XLR male
System Performance
Distortion THD 50÷20k Hz 0dBu	< 0.007 %
Frequency Response	40 Hz to 20 kHz (-3 dB)
General
Controls	PAD 0 / -20 / -40, GND LIFT
Dimensions (W x H x D)	134 x 50 x 105 mm
Weight (excluding batteries)	0,55 Kg
