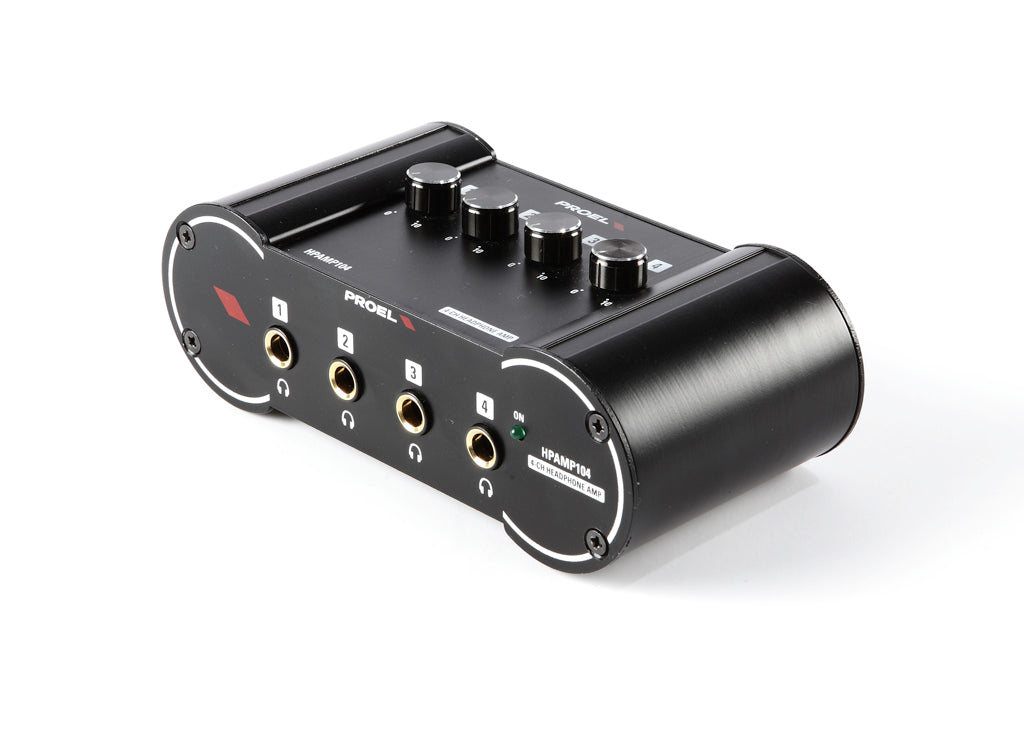

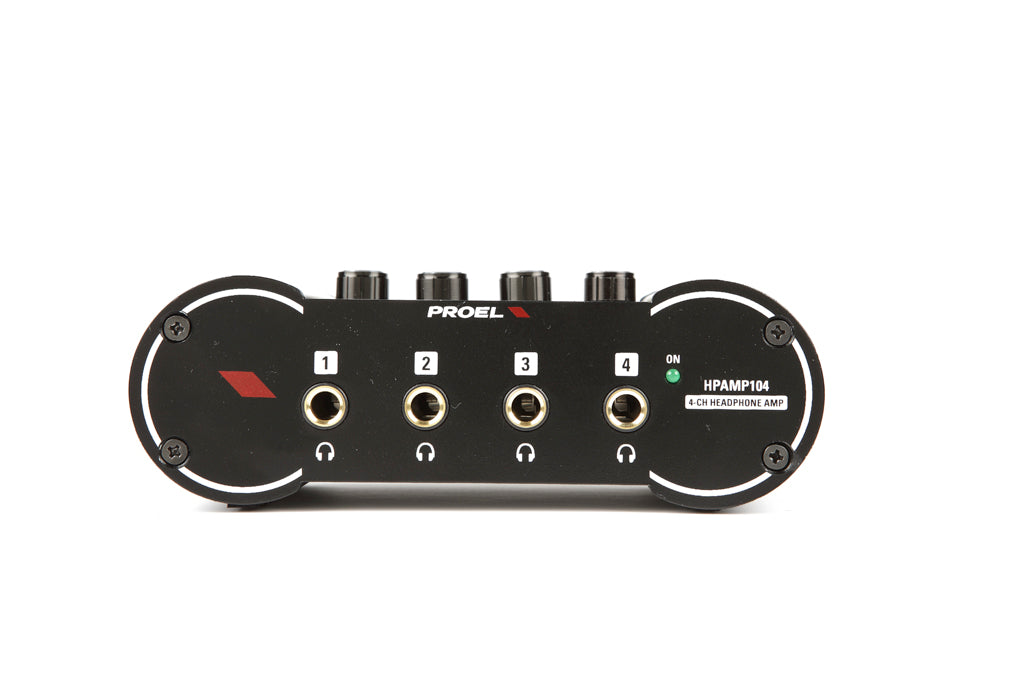

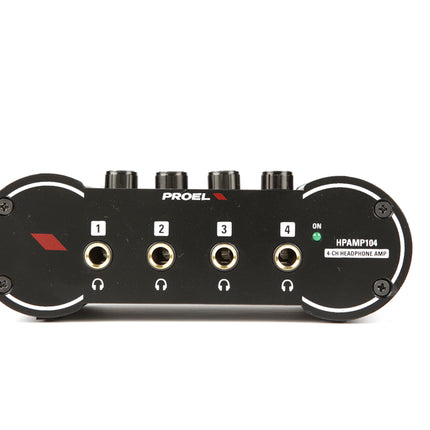

Proel Sound systems Headphone amp HPAMP104

Name: Proel Sound systems Headphone amp HPAMP104
Brand: Proel
SKU: HPAMP104
Price: 52.18 EUR

Product form

Headphone AMP HPAMP104 The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems... Read more

SKU: HPAMP104
Barcode: 8032496007845

Next Arrival

Where to buy?

Find your nearest dealer here

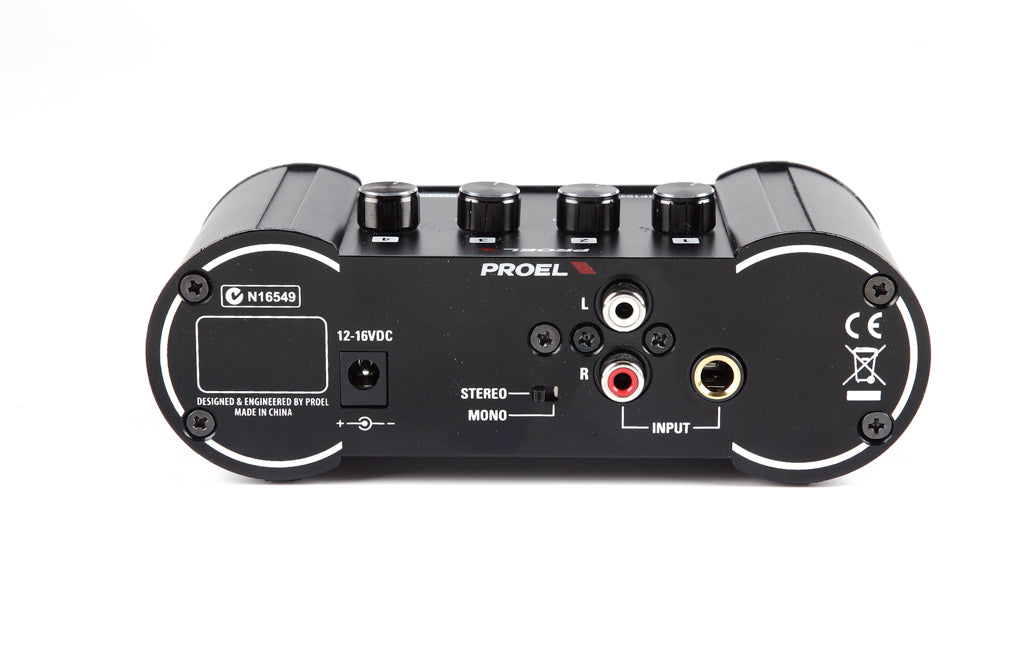

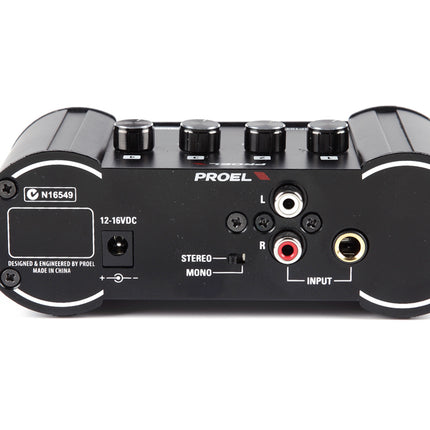

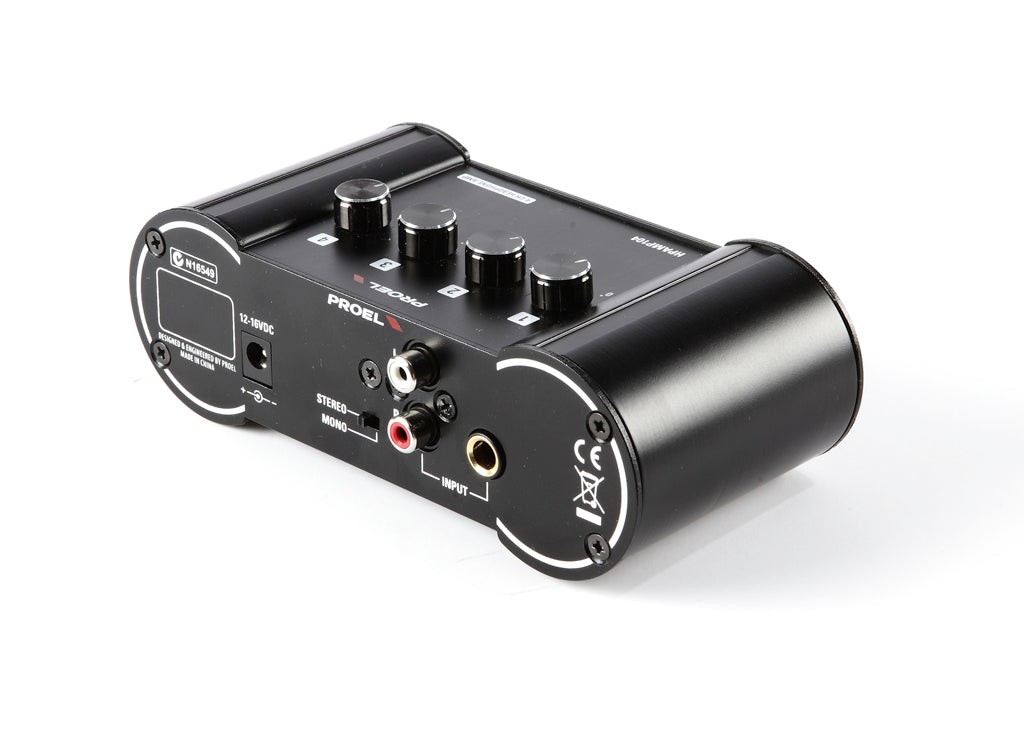

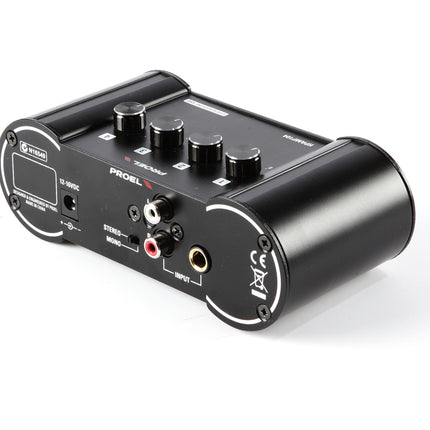

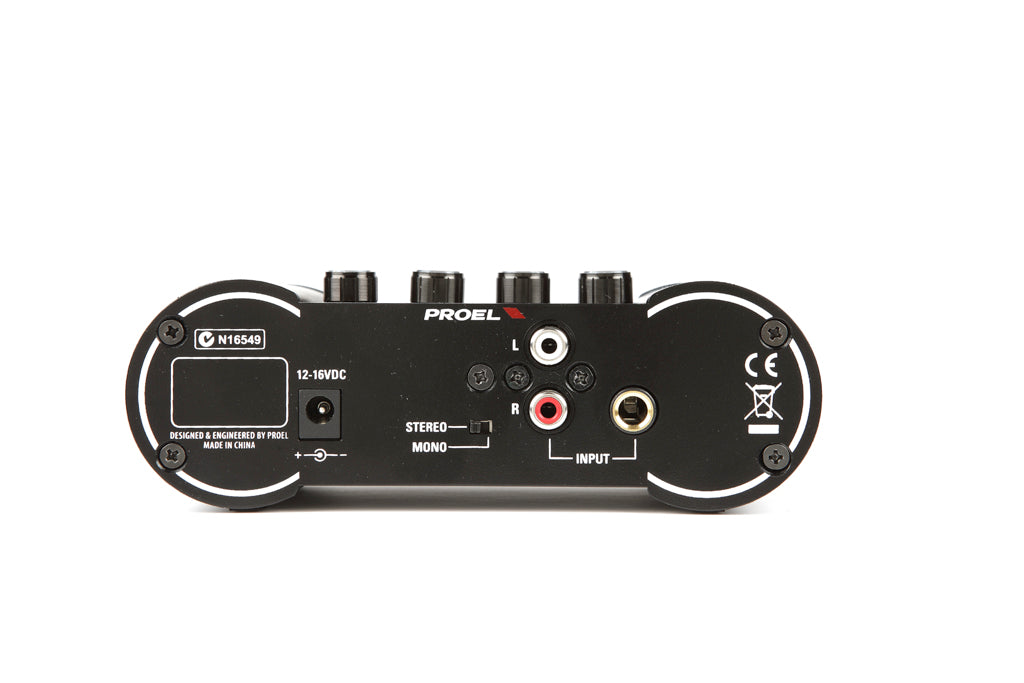

Input Section
Inputs	1 stereo
Input Impedance	500 Kohm
Max Input Level	+15 dBu
Connectors	1/4" jack stereo, 2 x RCA

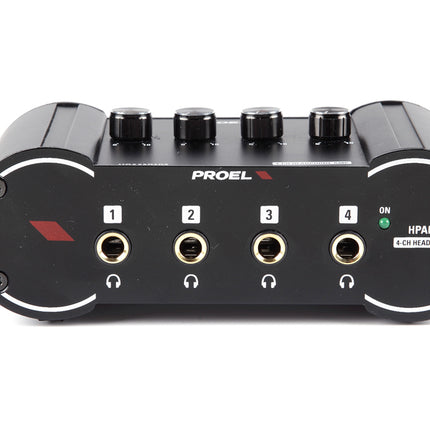

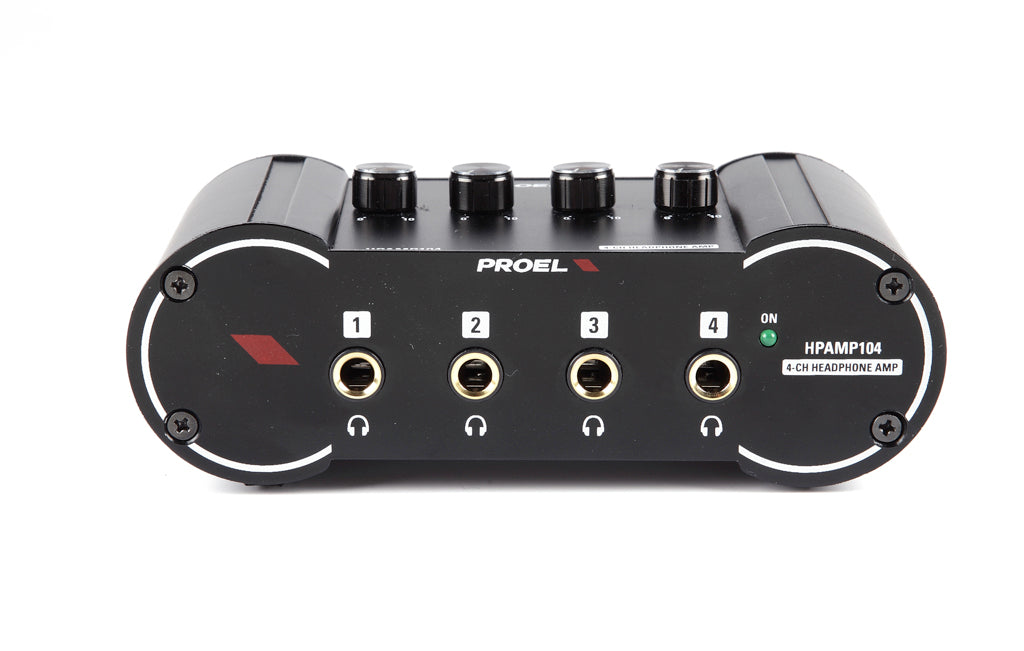

Output Section
Outputs	4 stereo
Maximum output	(2x) 45mW @ 100 ohm (each)
Load Impedance	minimum 16 ohm per channel
Max gain	+20 dB each channel
Connector	1/4" jack stereo (each output)
System Performance
Distortion (THD)	0.02 %
Noise	< -98 dBu unweighted
Frequency Response	20 Hz - 20 KHz (-3 dB)
General
Controls	OUTPUT LEVEL, INPUT STEREO/MONO
Indicators	Power ON
Power supply	12-18 VDC (adapter included)
Dimensions (W x H x D)	152 x 50 x 72 mm
Weight	0,8 Kg

Input Section
Inputs	1 stereo
Input Impedance	500 Kohm
Max Input Level	+15 dBu
Connectors	1/4" jack stereo, 2 x RCA
Output Section
Outputs	4 stereo
Maximum output	(2x) 45mW @ 100 ohm (each)
Load Impedance	minimum 16 ohm per channel
Max gain	+20 dB each channel
Connector	1/4" jack stereo (each output)
System Performance
Distortion (THD)	0.02 %
Noise	< -98 dBu unweighted
Frequency Response	20 Hz - 20 KHz (-3 dB)
General
Controls	OUTPUT LEVEL, INPUT STEREO/MONO
Indicators	Power ON
Power supply	12-18 VDC (adapter included)
Dimensions (W x H x D)	152 x 50 x 72 mm
Weight	0,8 Kg
