Proel Sound systems Headphone amp HPAMP106

Description

Description

Headphone AMP HPAMP106

The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shell or in a sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.

  • 6 independent high-power amp sections suitable for any type of headphones

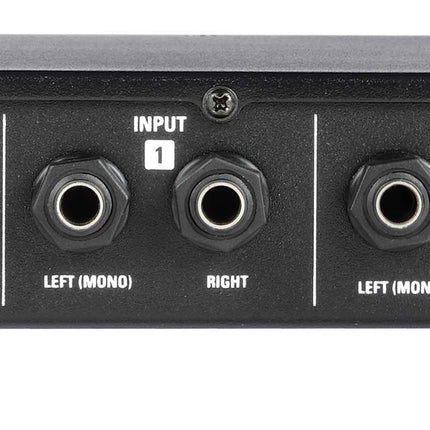

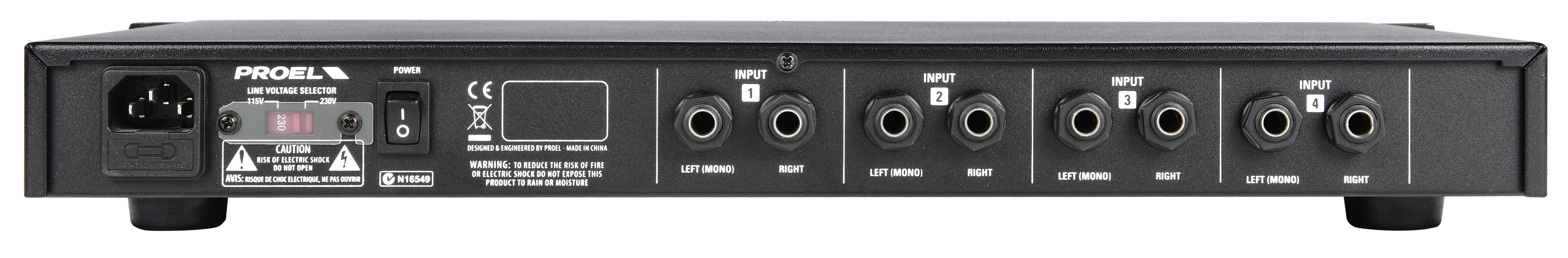

  • 4 selectable main stereo/mono inputs with ¼” JACK connectors (REAR panel)

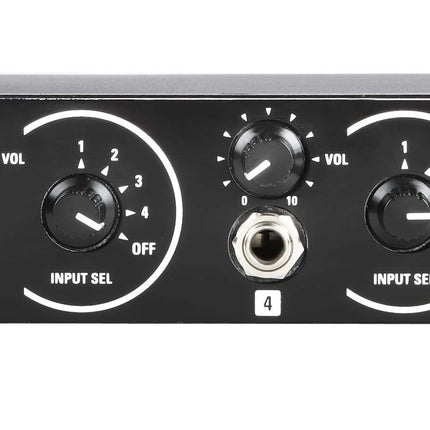

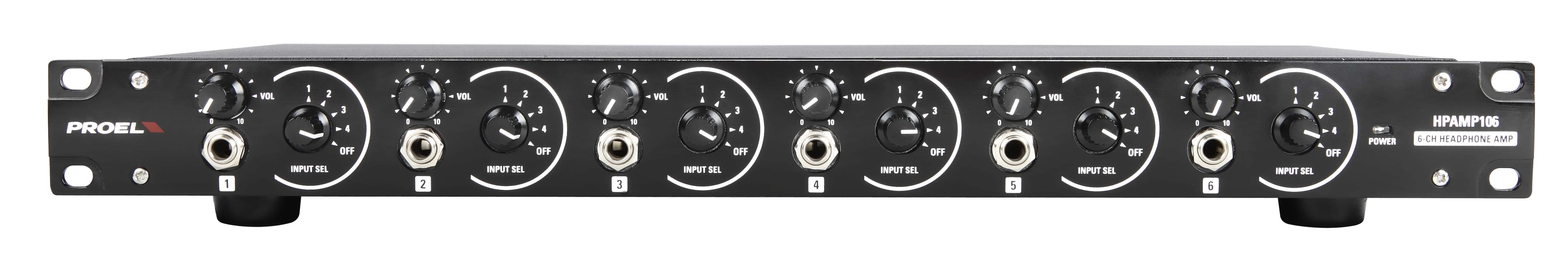

  • 6 stereo headphone outputs with individual level controls , input selector and ¼” JACK connectors (FRONT panel)
  • 300mW max output level at 32 ohm (per channel)
  • Built-in power supply with toroidal transformer and voltage selector
  • 19” rack mountable metal chassis

Technical specs:

Input Section
Inputs 4 stereo
Input Impedance 47 Kohm
Max Input Level +25 dBu
Connectors  2 x 1/4" jack unbalanced (each input)
Output Section
Outputs 6 stereo
Maximum output (2x) 193 mW @ 32 ohm (each)
Load Impedance minimum 16 ohm per channel
Max gain +13 dB each channel
Connector  1/4" jack stereo (each output)
System Performance
Distortion (THD) 0.02 %
Noise  < -98 dBu unweighted
Frequency Response  20 Hz - 20 KHz (-3 dB)
General
Controls OUTPUT LEVEL, INPUT SELECTOR
Indicators Power ON
Power supply Selectable 100-120 VAC, 220-240 VAC, 50-60 Hz
Dimensions (W x H x D)  480 x 44 x 210 mm
Weight 3,9 Kg

Read more

Proel Sound systems Headphone amp HPAMP106

Product form

Headphone AMP HPAMP106 The 100 Series is a range of D.I. Boxes and Headphone Amps designed to complement audio systems... Read more
