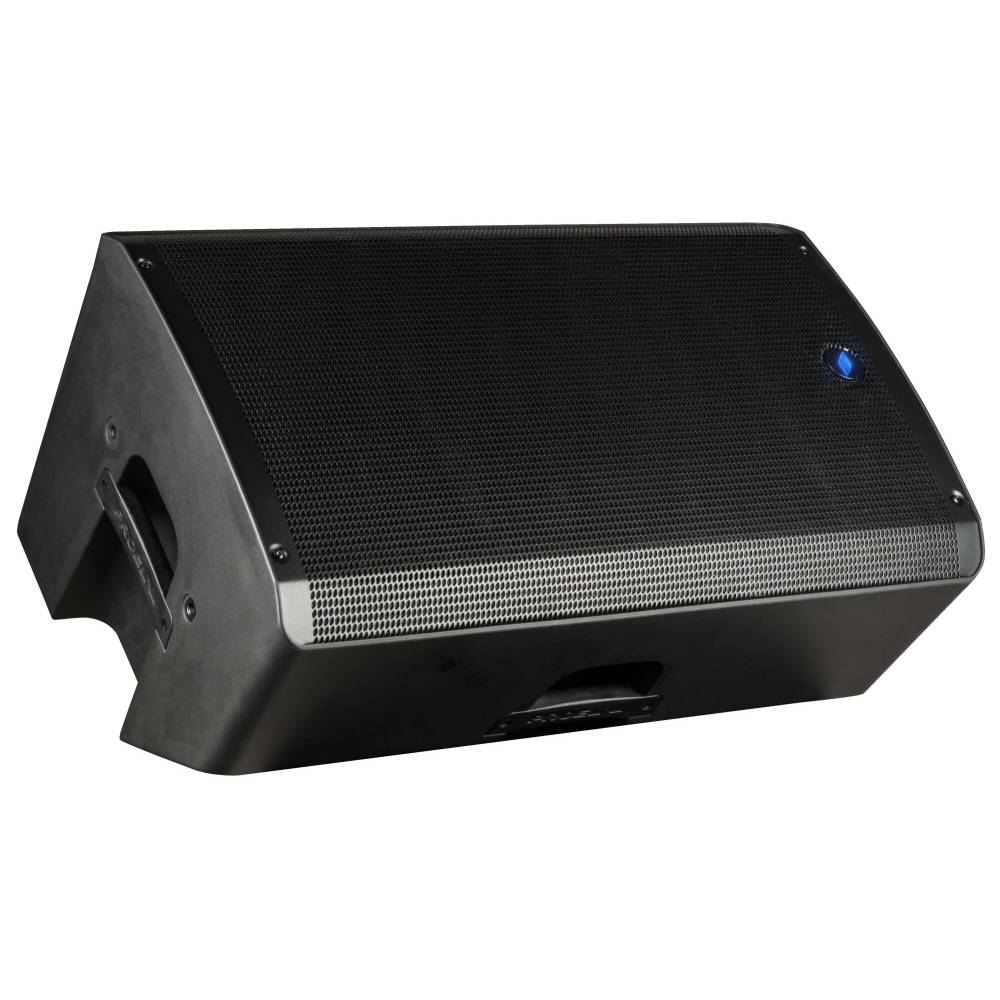

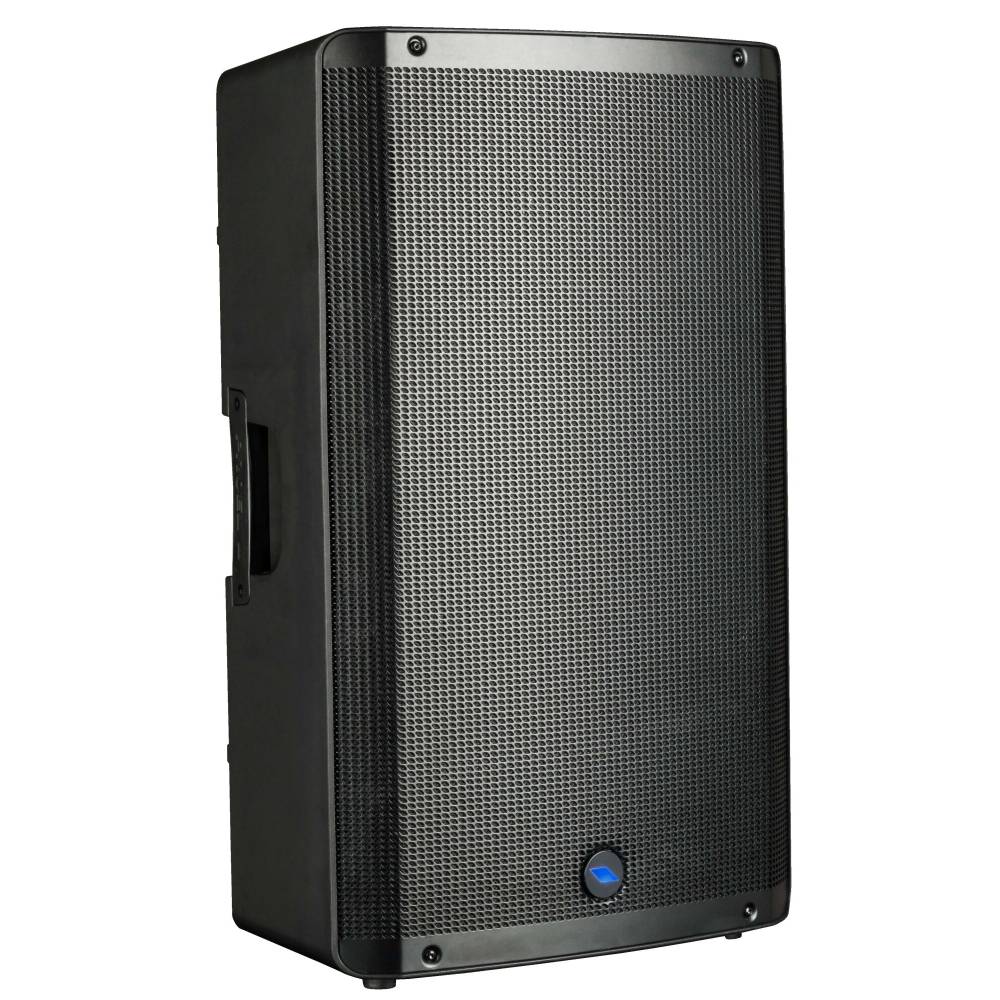

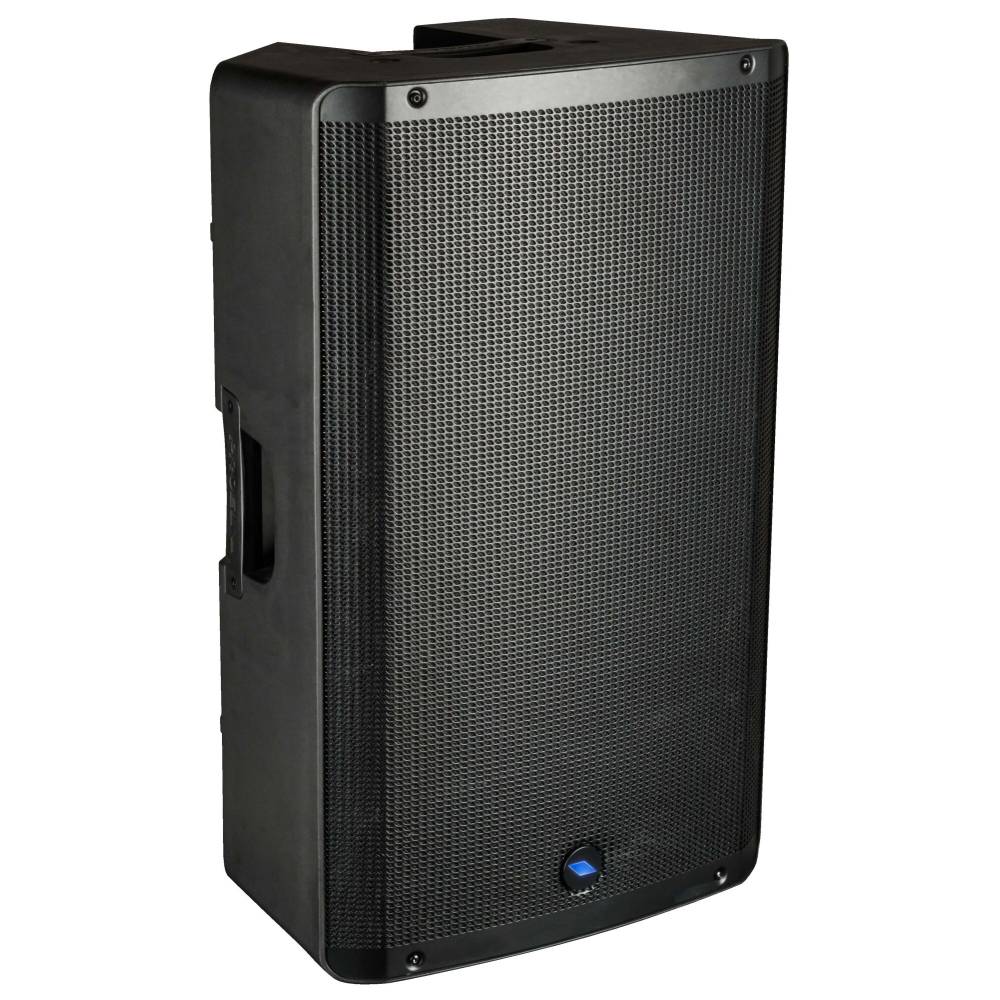

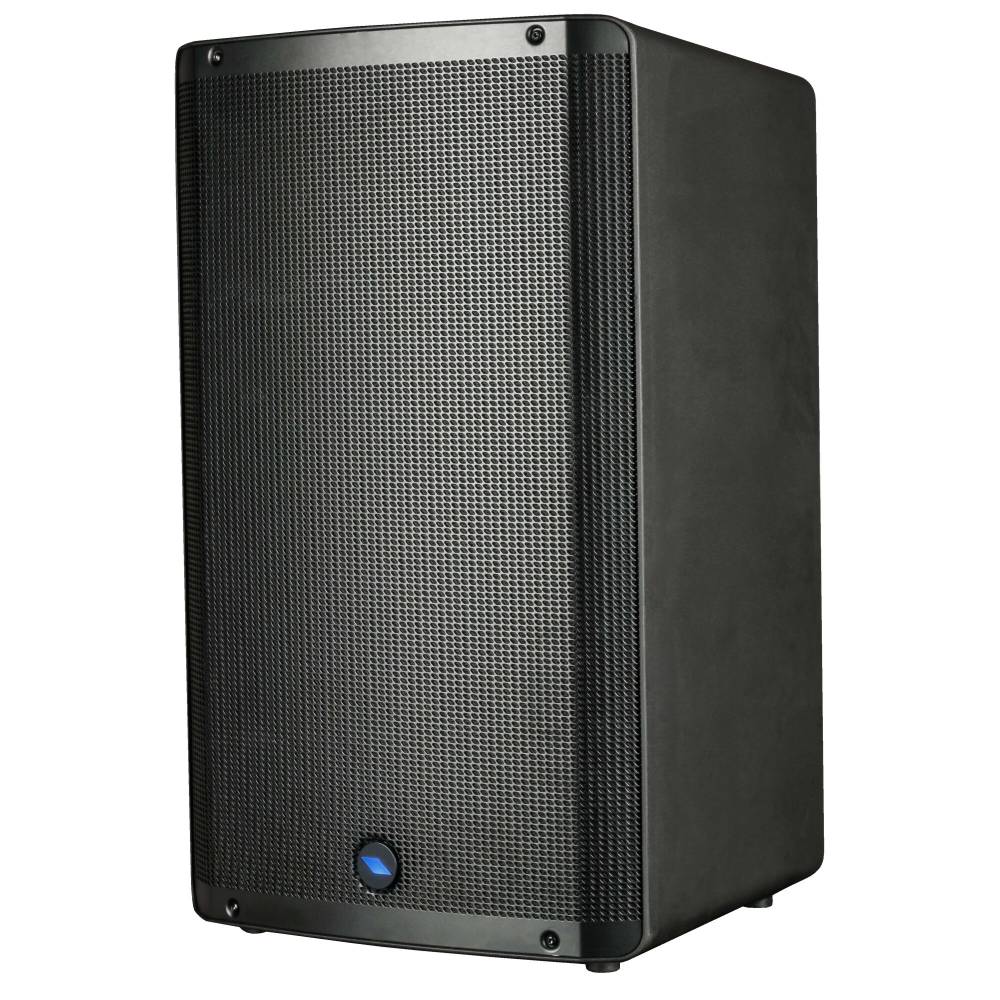

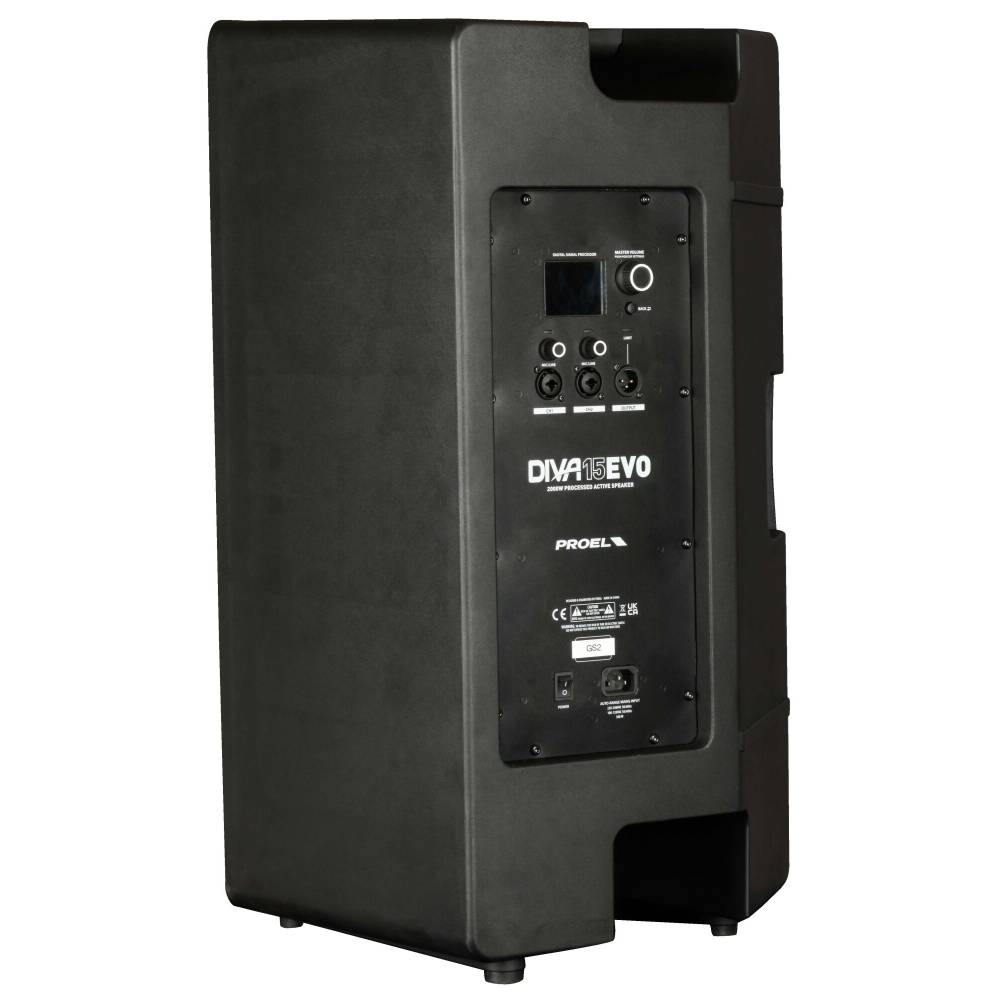

Proel Sound systems Hi Performance Active Speaker DIVA15EVO

Name: Proel Sound systems Hi Performance Active Speaker DIVA15EVO
Brand: Proel Sound
SKU: DIVA15EVO
Price: 466.0 EUR

Product form

SKU: DIVA15EVO
Barcode: 8032496929451

Next Arrival

€699,00 €466,00 Excl. VAT

Where to buy?

Find your nearest dealer here

	DIVA12EVO	DIVA15EVO	DIVASUB18EVO
System type	2-way vented enclosure	Vented enclosure subwoofer
High Frequency Device	1’’ NEO compression driver, 1.75" voice coil, titanium diaphragm	-
Low Frequency Device	12" woofer with 2,5" VC	15" woofer with 2.5" VC	18'' woofer with 4" VC
Angular Coverage	90° H x 60° V	Omnidirectional (Cardioid with 2 unit)
Total Peak Power	2000 W	2000 W
HF Amplifier Continuous Power	500 W Class D	-
LF Amplifier Continuous Power	500 W Class D	1000 W Class D
Power Supply	SMPS
System Processing	DSP
Frequency Response	50 Hz - 20 kHz	45 Hz - 20 kHz	30 Hz - 110 Hz
Max SPL	129 dB	130 dB	134 dB
Inputs	2 x COMBO	2 x COMBO
Inputs sensitivity	LINE, GTR, MIC	LINE
Outputs	1 x XLR-M	2 x XLR-M (Thru or HPF)

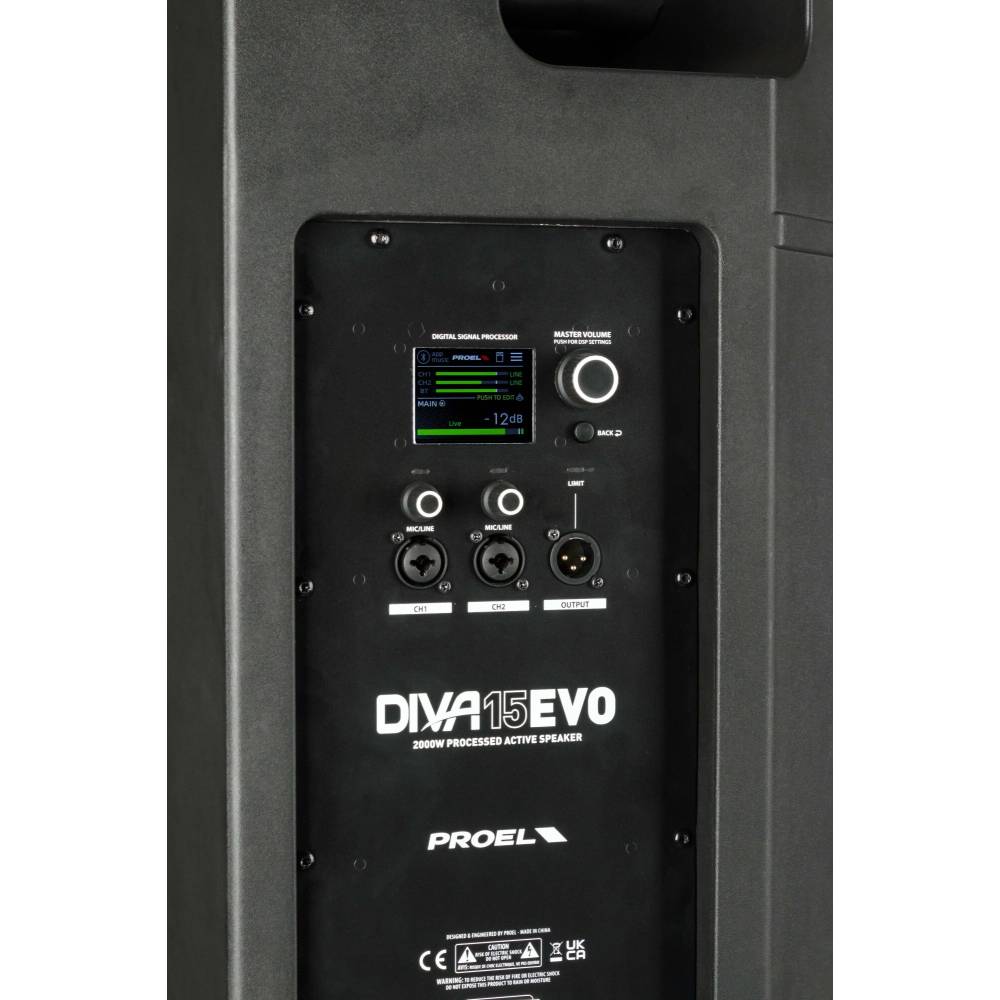

Controls	CH1/2 LEVEL, MASTER VOLUME & DSP, BACK, COLOR LCD	MASTER VOLUME & DSP, BACK, COLOR LCD
Bluetooth	Version 5.0, Audio Streaming, STEREO LINK (TWS)	-
BLE control App	iOS - Android
Power Supply	100-120 V~ or 220-240 V~ at 50/60 Hz Auto-Range
Rated Consumption*	300 W
GENERAL SPECIFICATIONS
Floor Monitor Angle	45°	-
Flying System	4 x M10 - top/bottom	-
Cabinet Material	Polypropylene, metal grille	Plywood, black anti-scratch paint, metal grille
Handles	1 x top, 1 x side	2 x side
Mounting Pole	1 x bottom	1 x top (M20)
Wheels	-	-	4 x 75 mm wheels
Dimensions (W x H x D)	360 x 622 x 350 mm	420 x 705 x 384 mm	510x650x650 mm (without wheels) 510x650x752 mm (with wheels)
Weight	16.2 kg (35.7 lb)	19.0 kg (41.9 lb)	38.0 kg (83.77 lb)
