Proel Sound systems Diva Active Sub DIVASUB18A

Description

Description

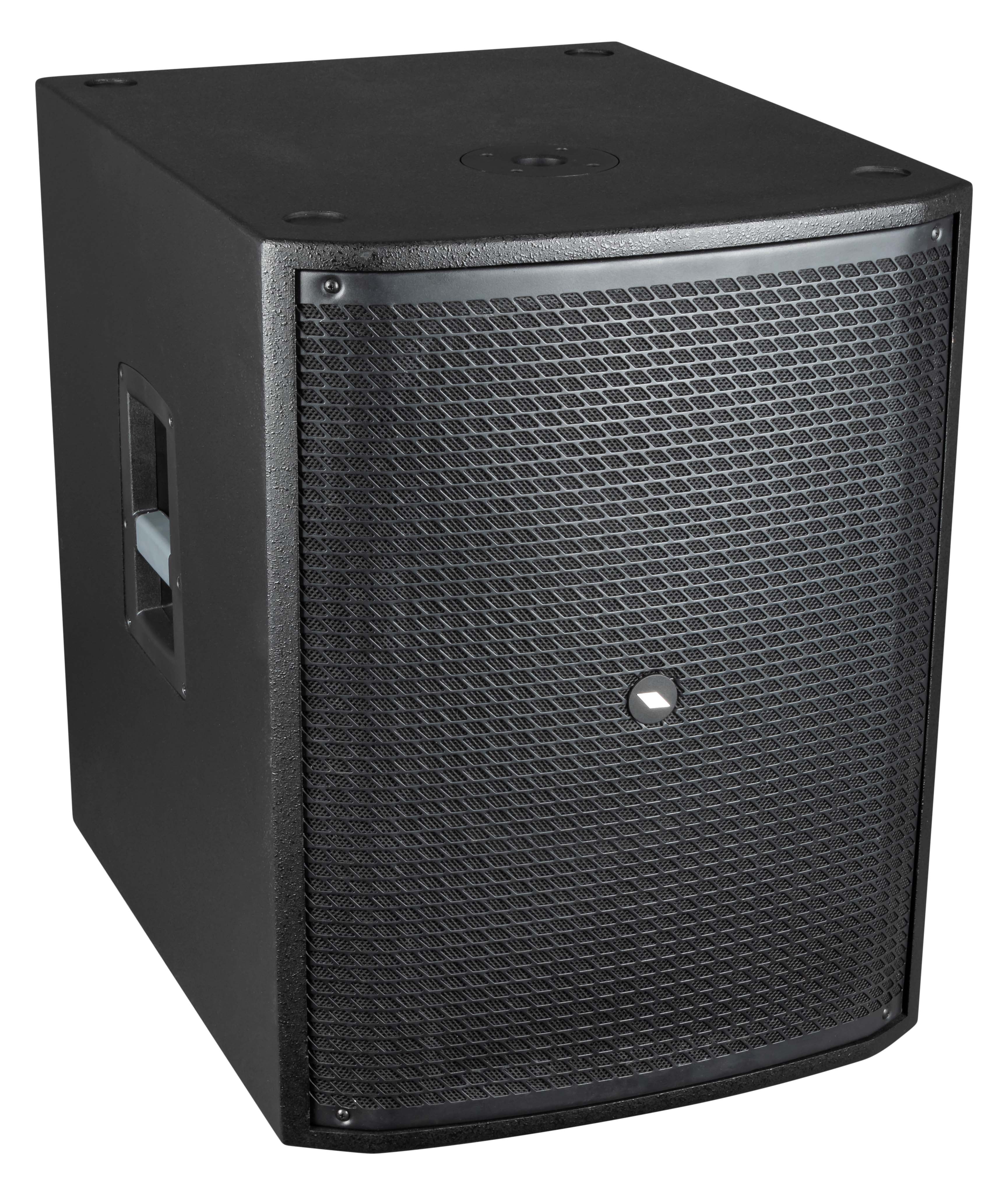

Active Subwoofer DIVASUB18A

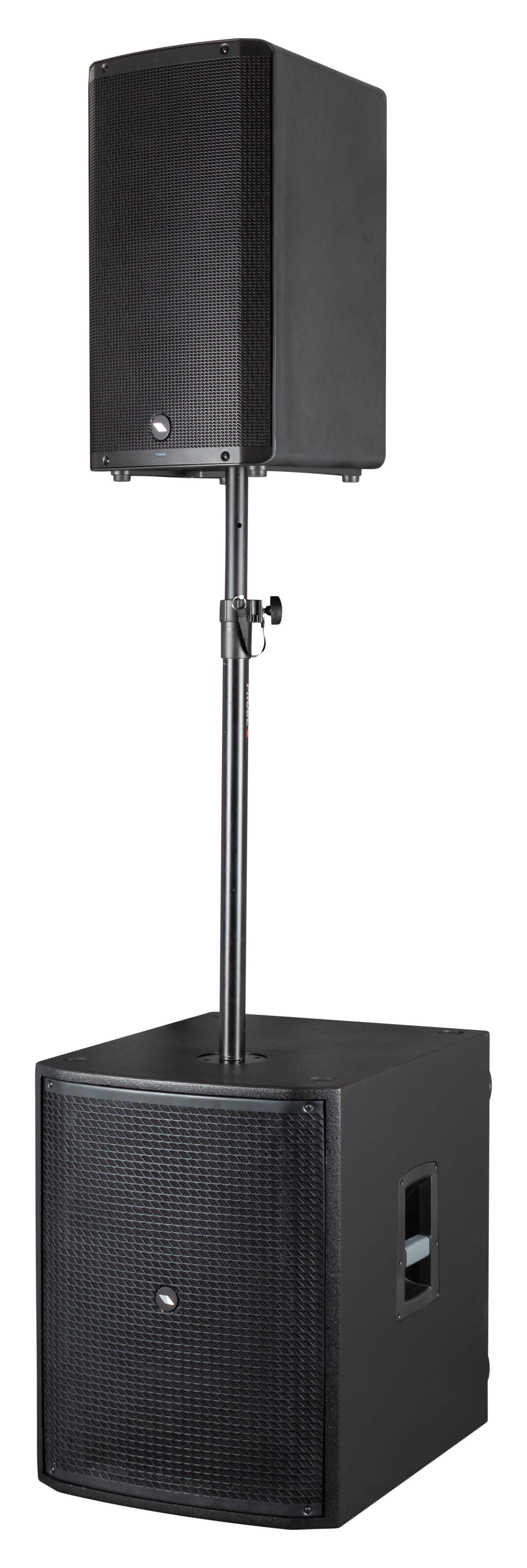

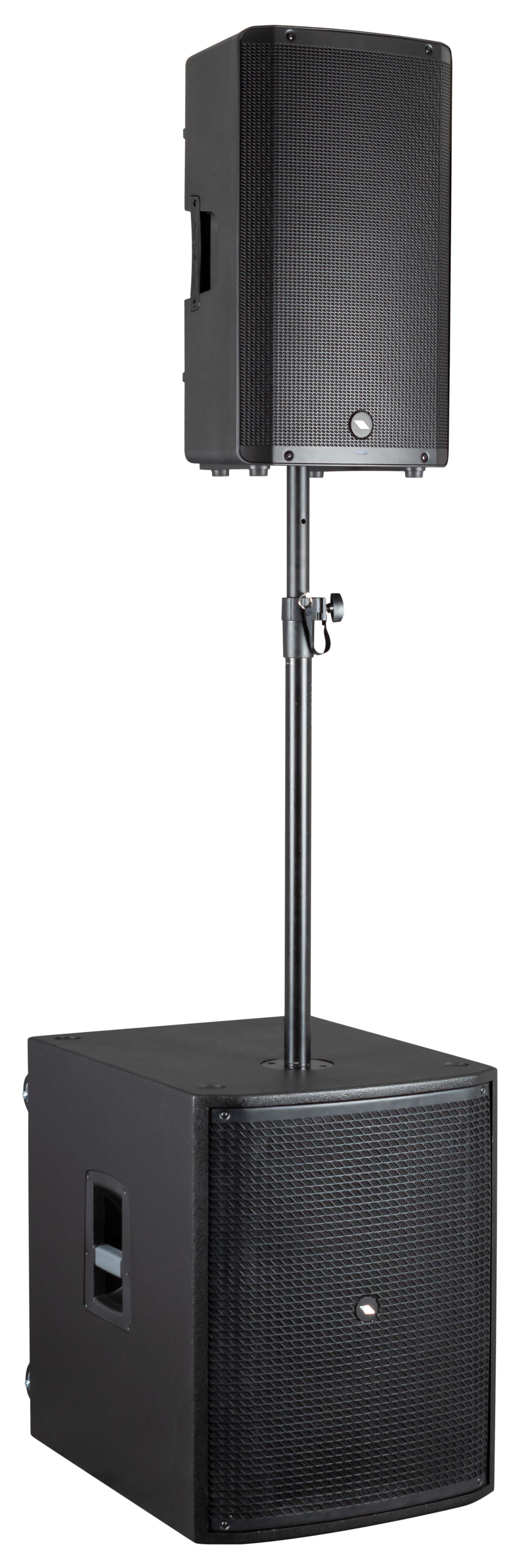

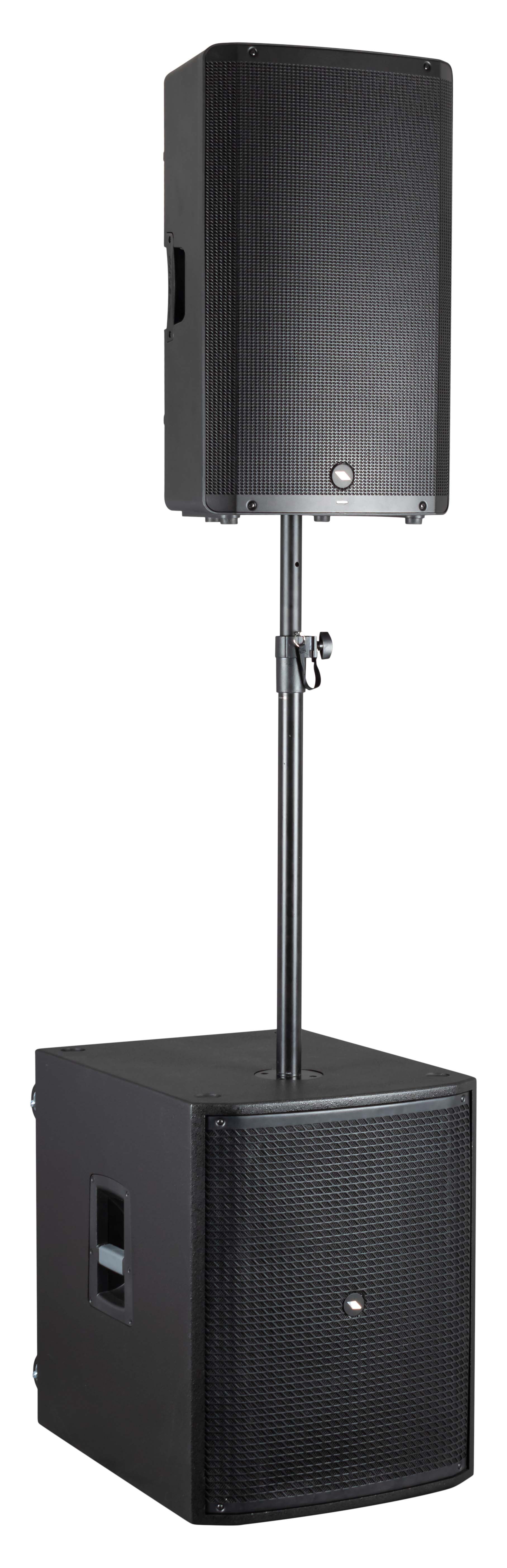

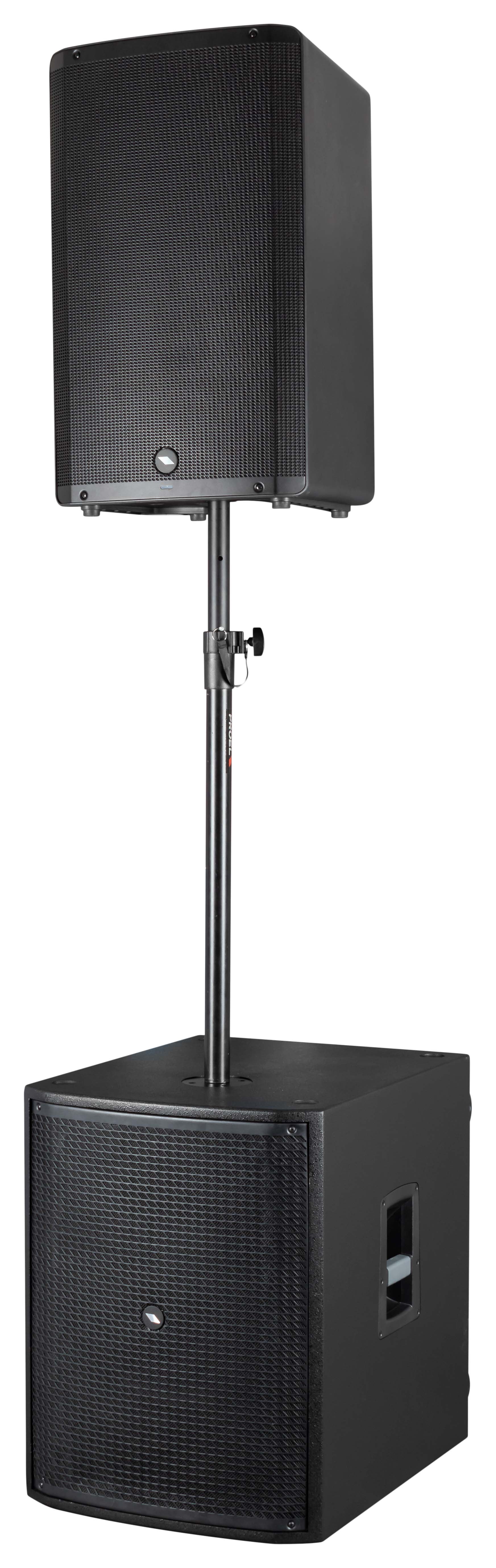

DIVASUB18A is a digitally processed active subwoofer designed as an ideal complement to the DIVA Series speakers, capable not only of increasing the extension of the low frequency response, but also of significantly increasing the efficiency and performance of the whole system.

The subwoofer uses a custom 18" high efficiency woofer with 3" voice coil, driven by a powerful 1500 W CLASS-D amplifier with high headroom and dynamic control via DSP, for maximum output power without distortion and constant reliability.

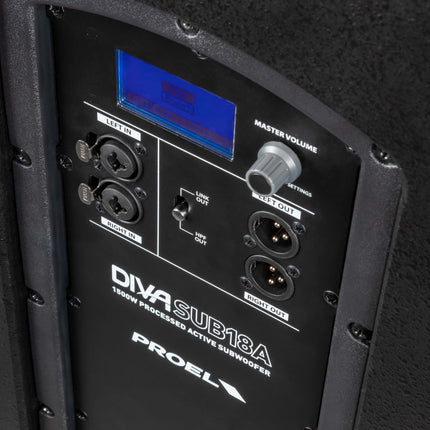

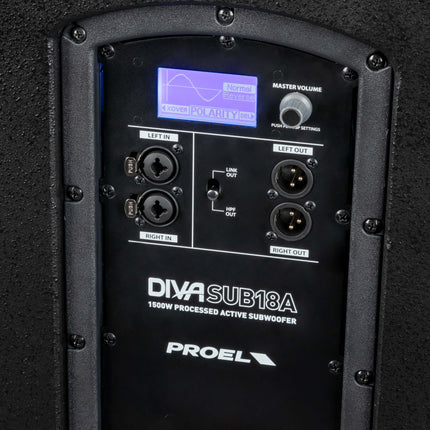

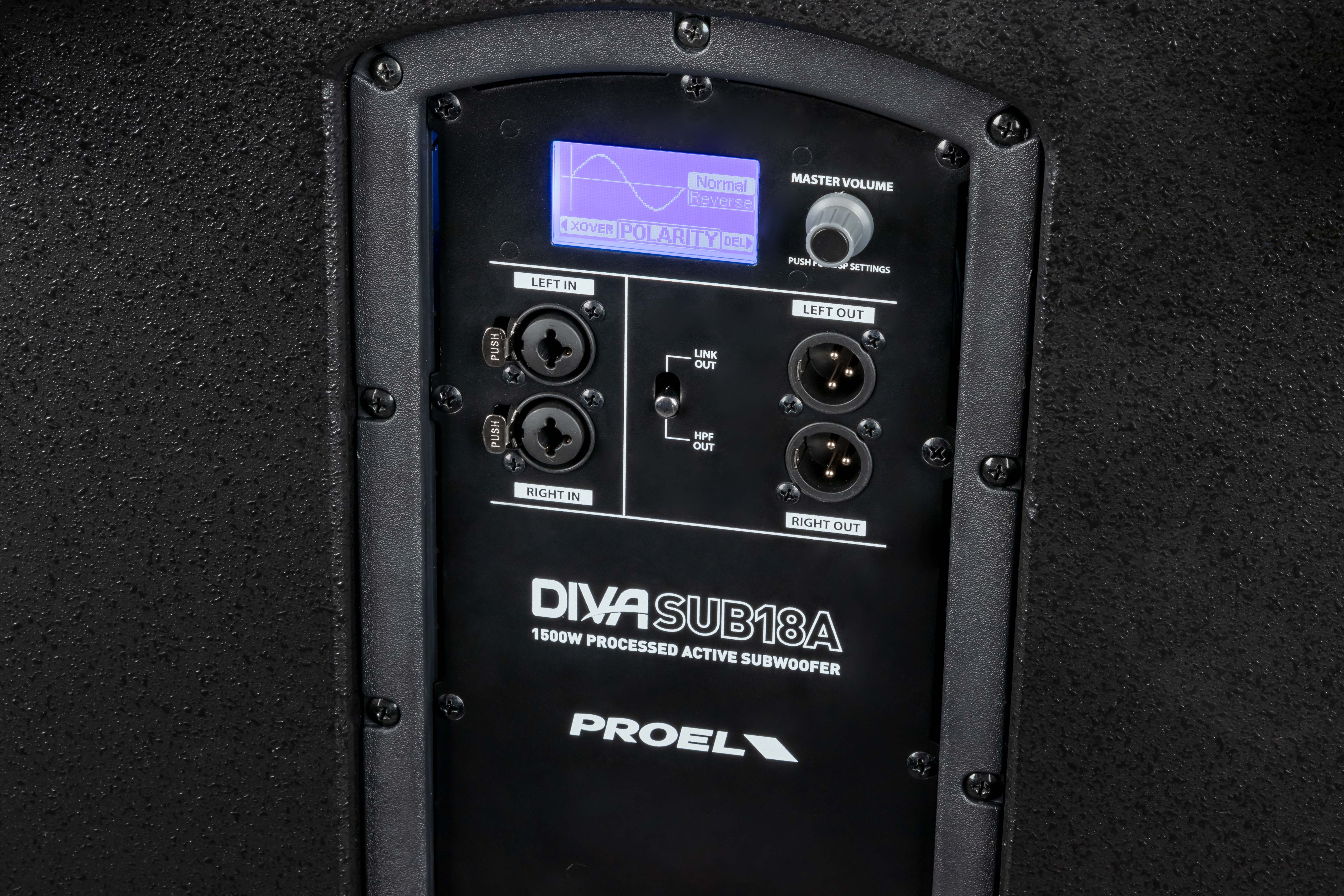

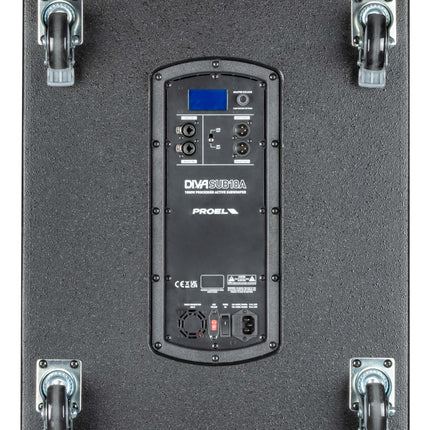

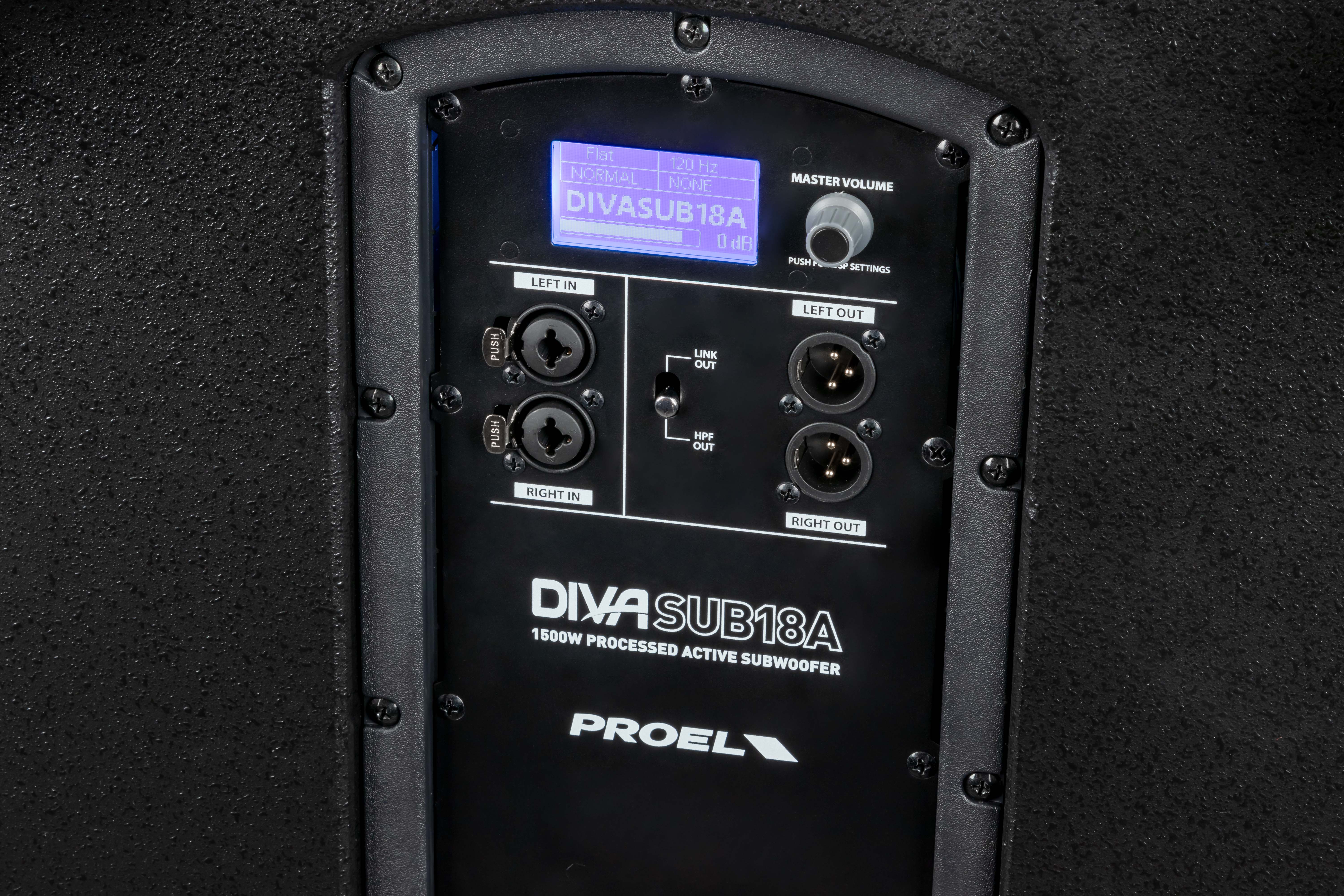

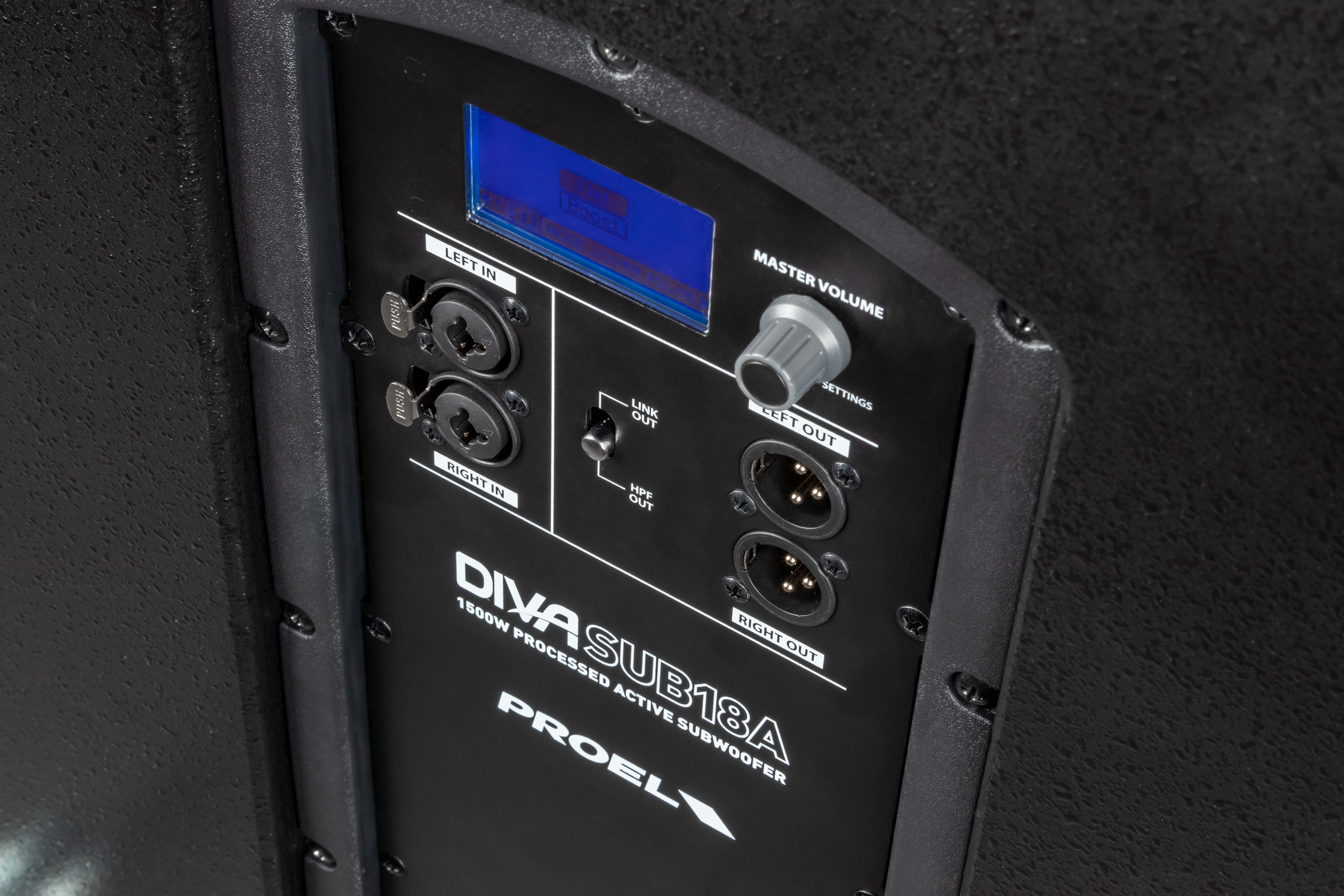

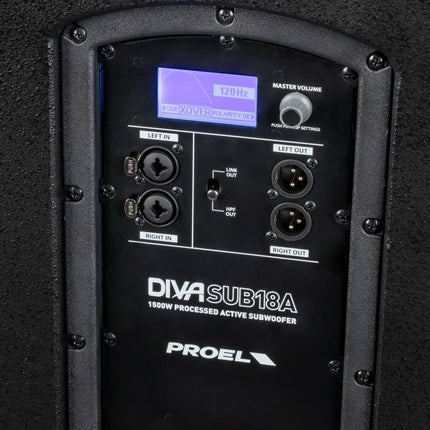

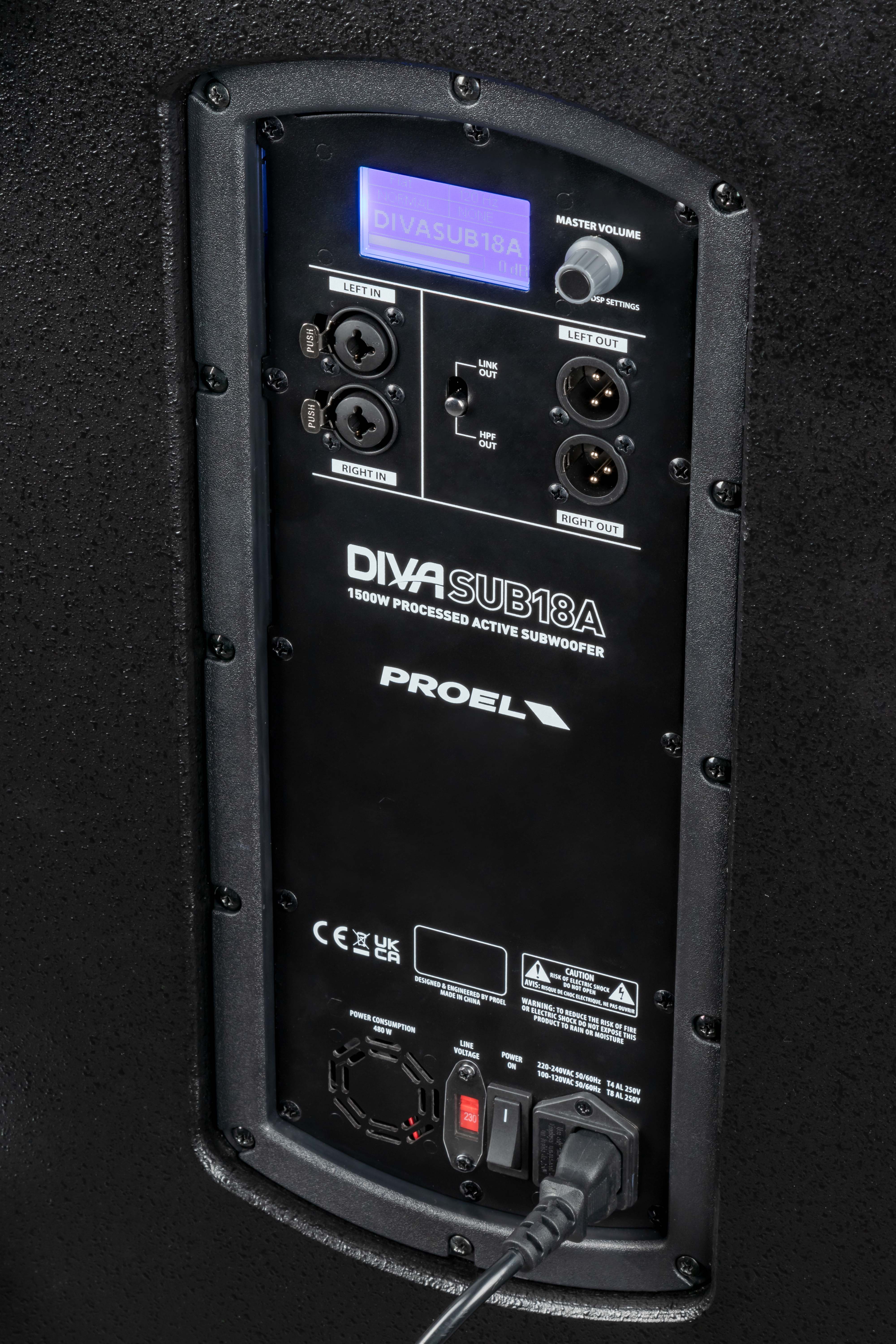

The sophisticated preamp section includes advanced processing with a high-performance DSP processor, for linear response and high-definition sound. A user interface with LCD display and single-knob control is available, for quick selection and viewing of processor parameters. These parameters include the selection of crossover frequency, phase and delay, for perfect coupling with the satellite used. The cardioid configuration is also available, which allows the coupling of two DIVASUB18A to double the frontal efficiency of the system and, at the same time, drastically reduce the rear radiation.

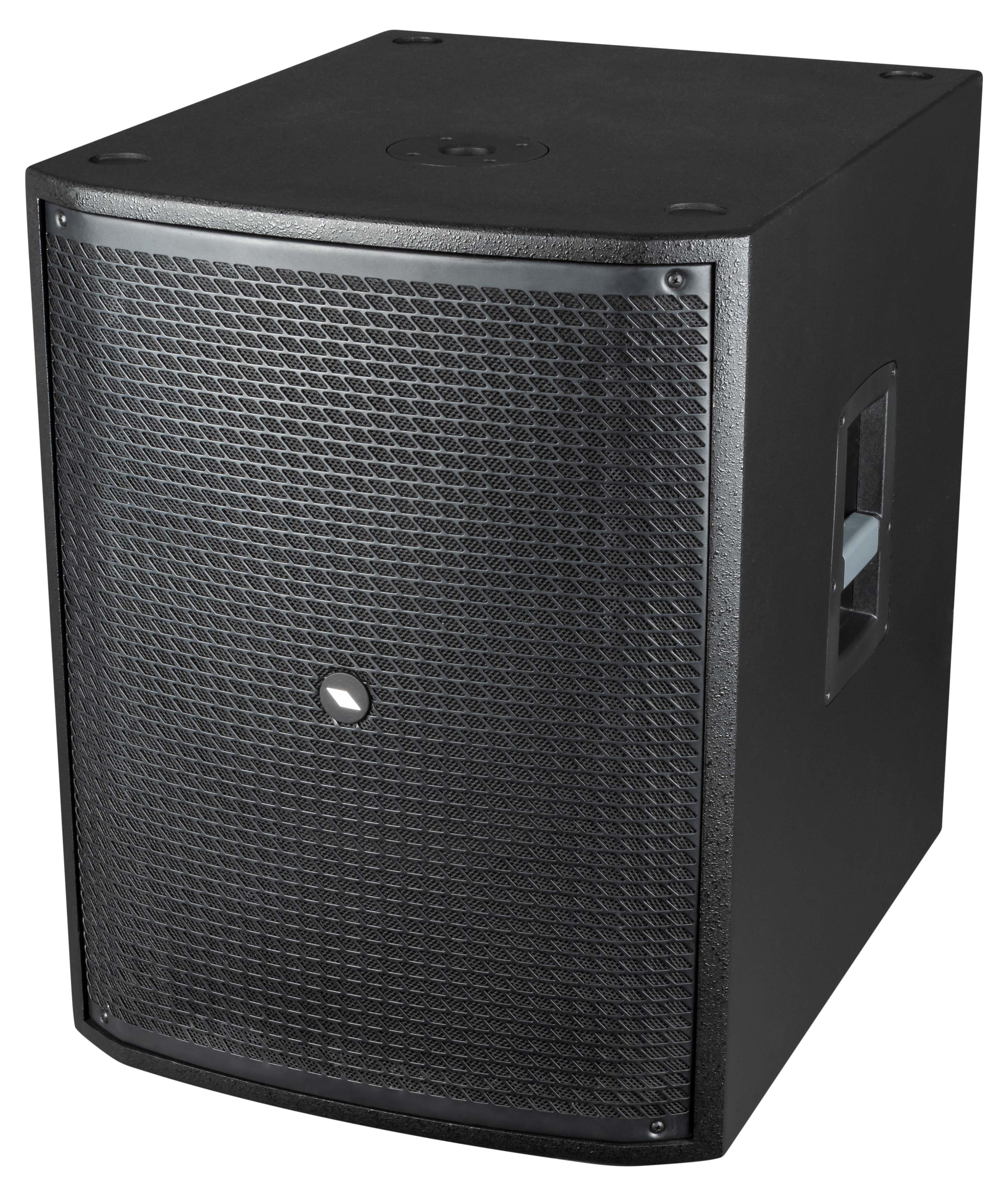

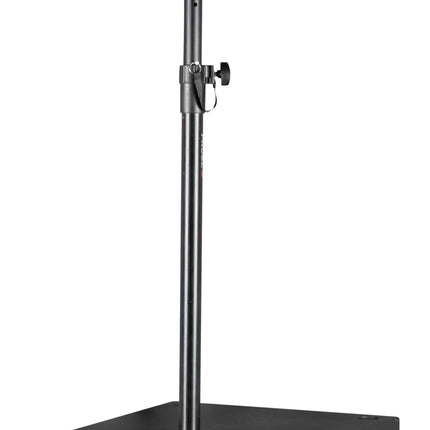

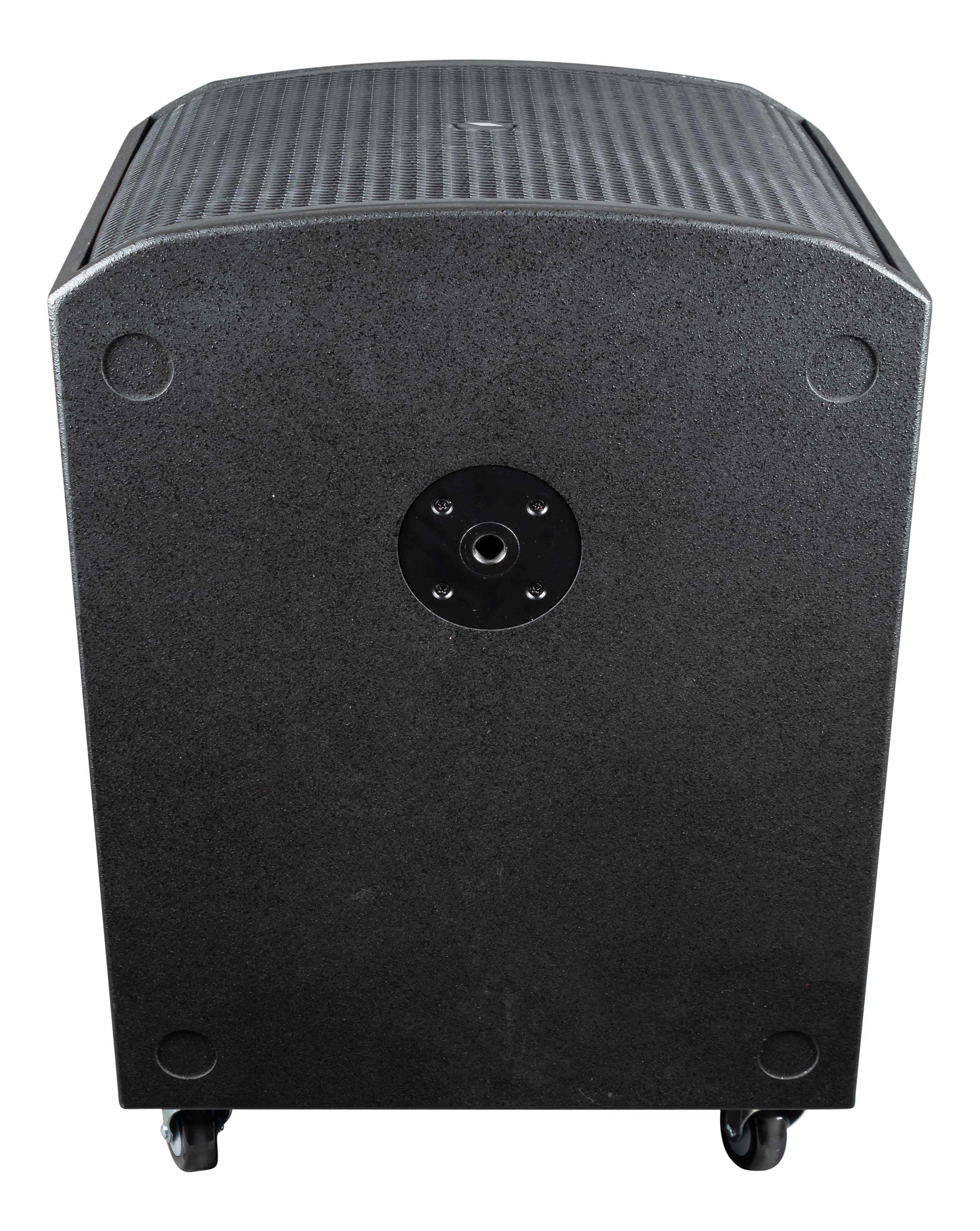

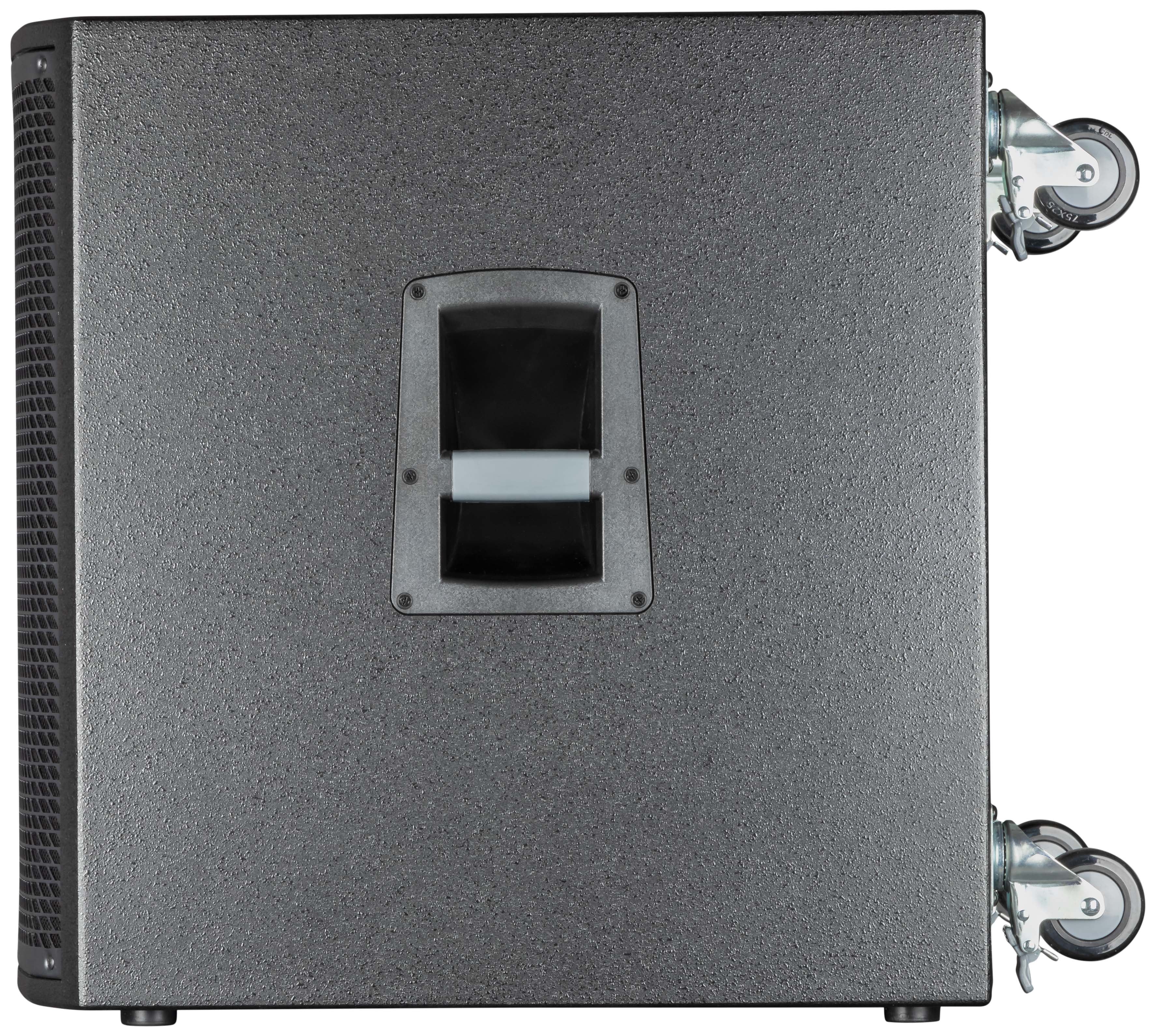

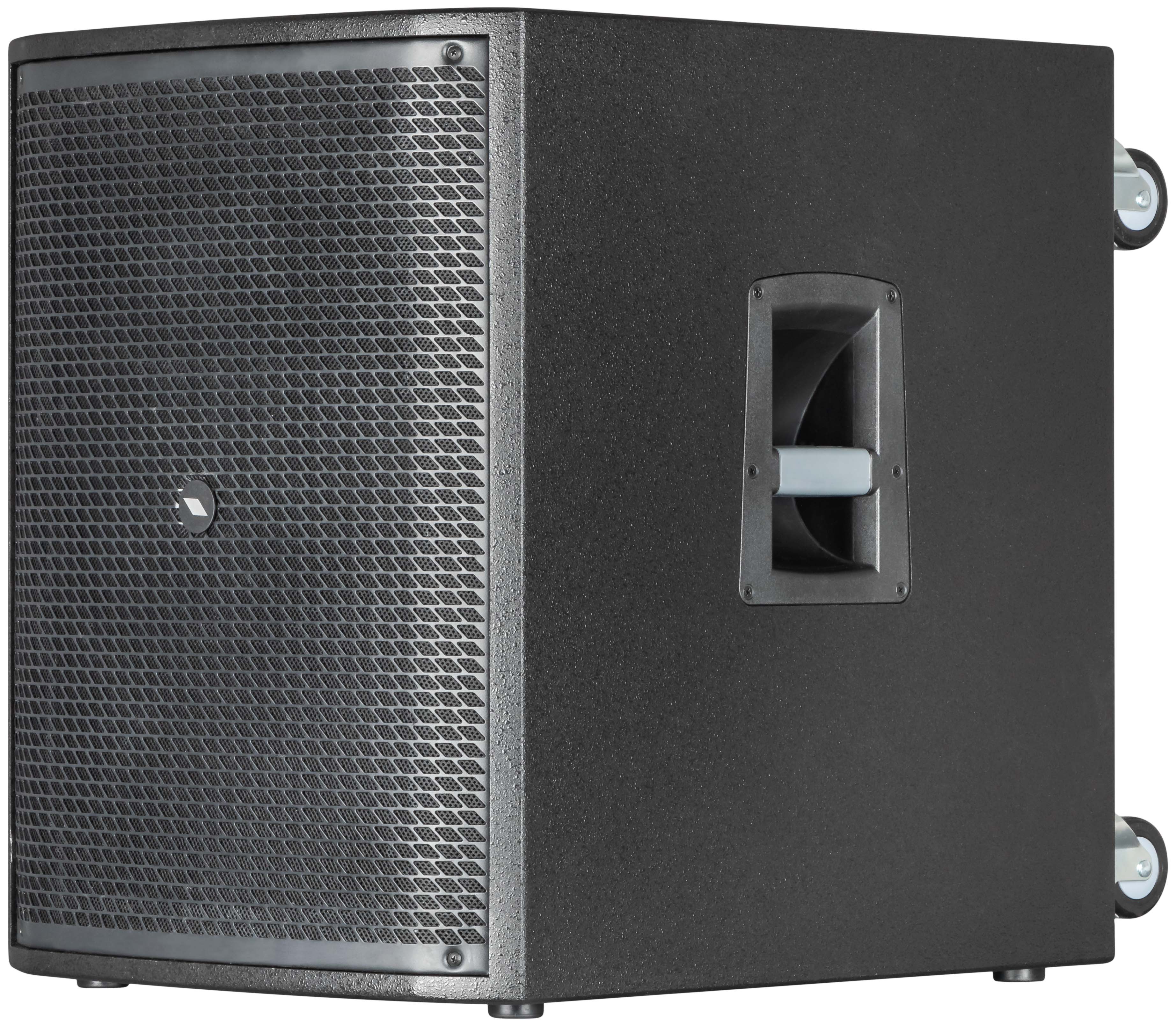

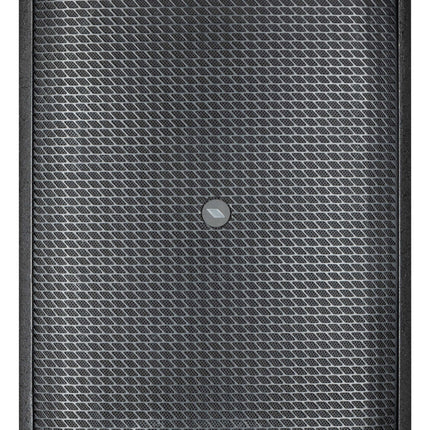

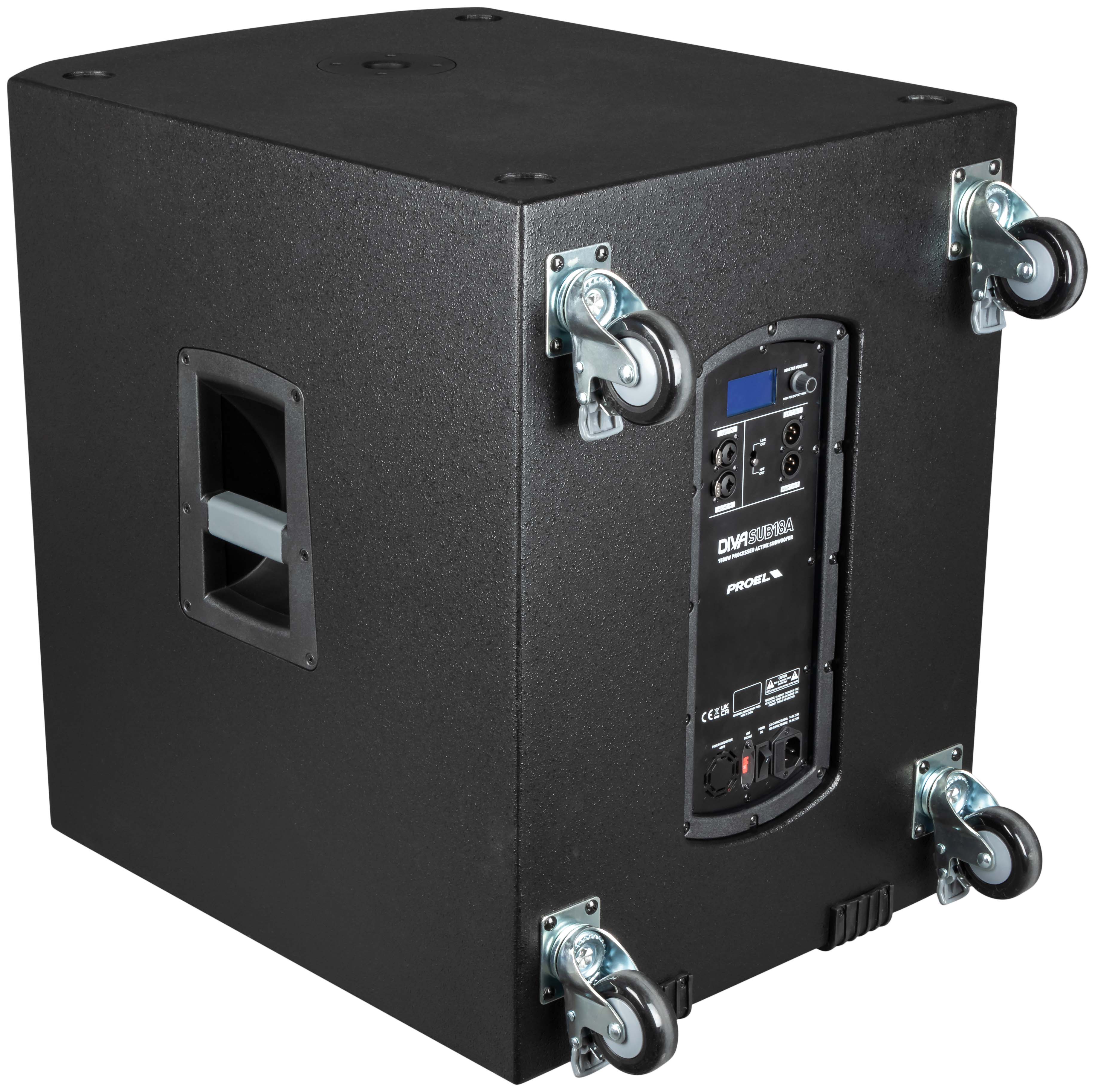

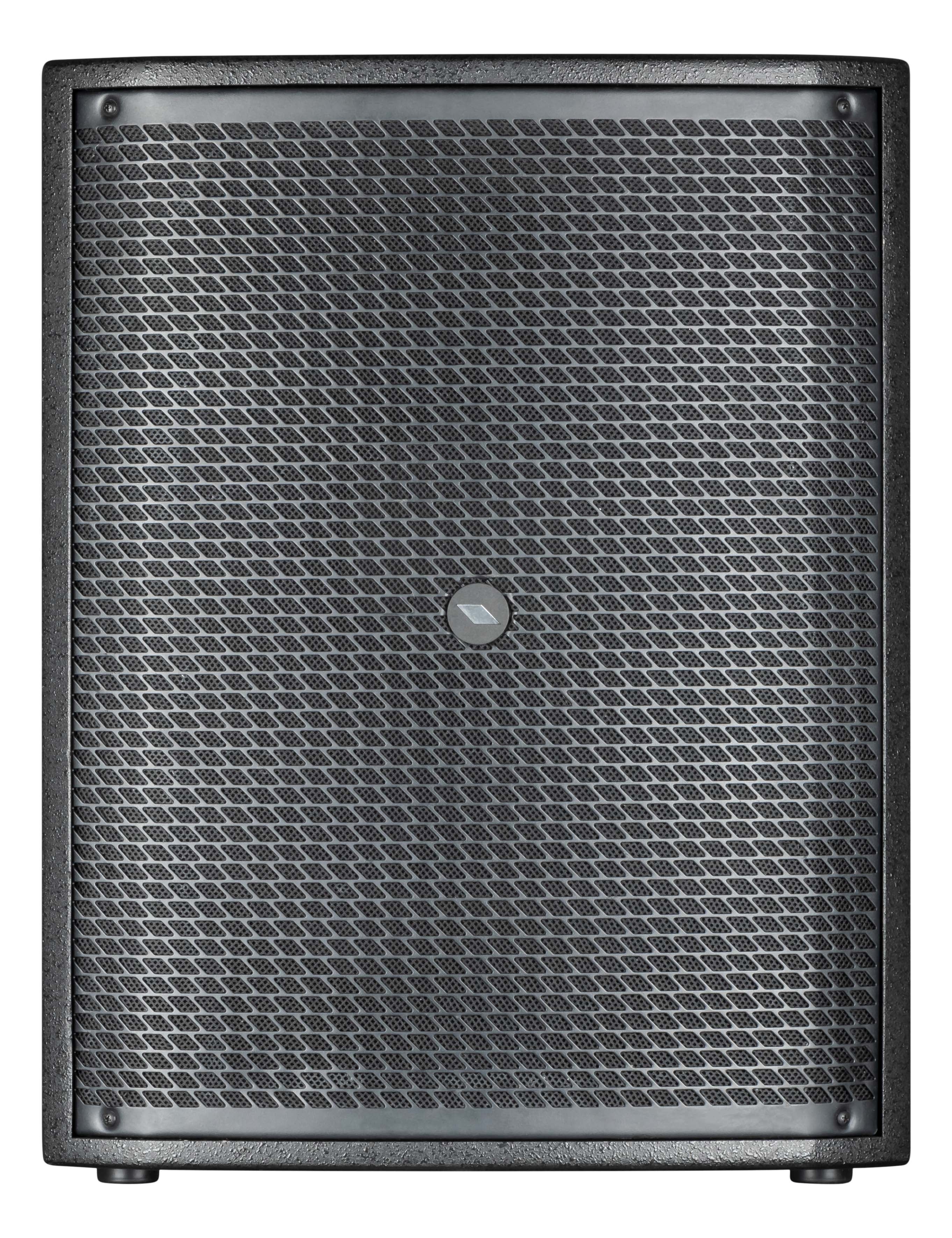

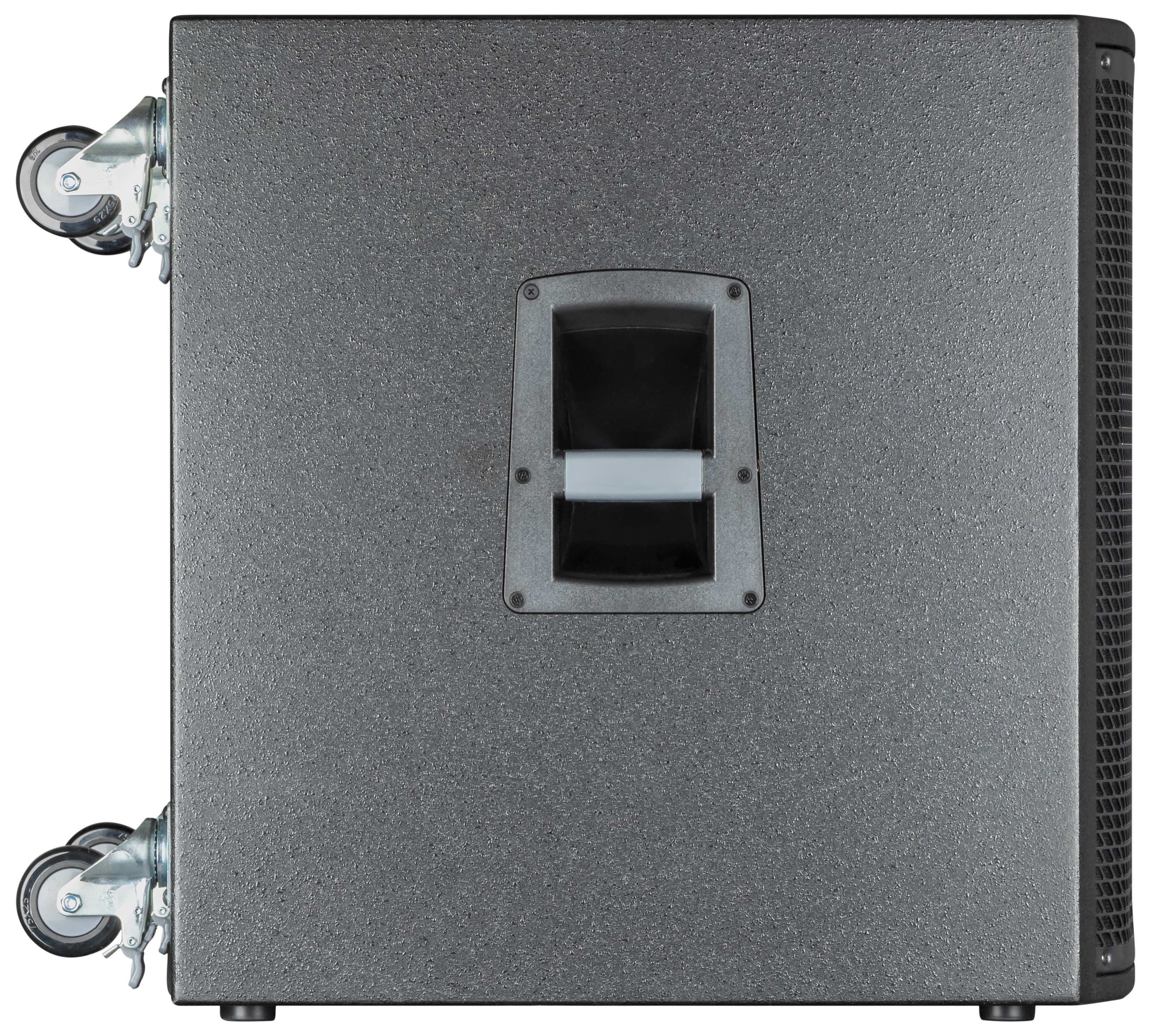

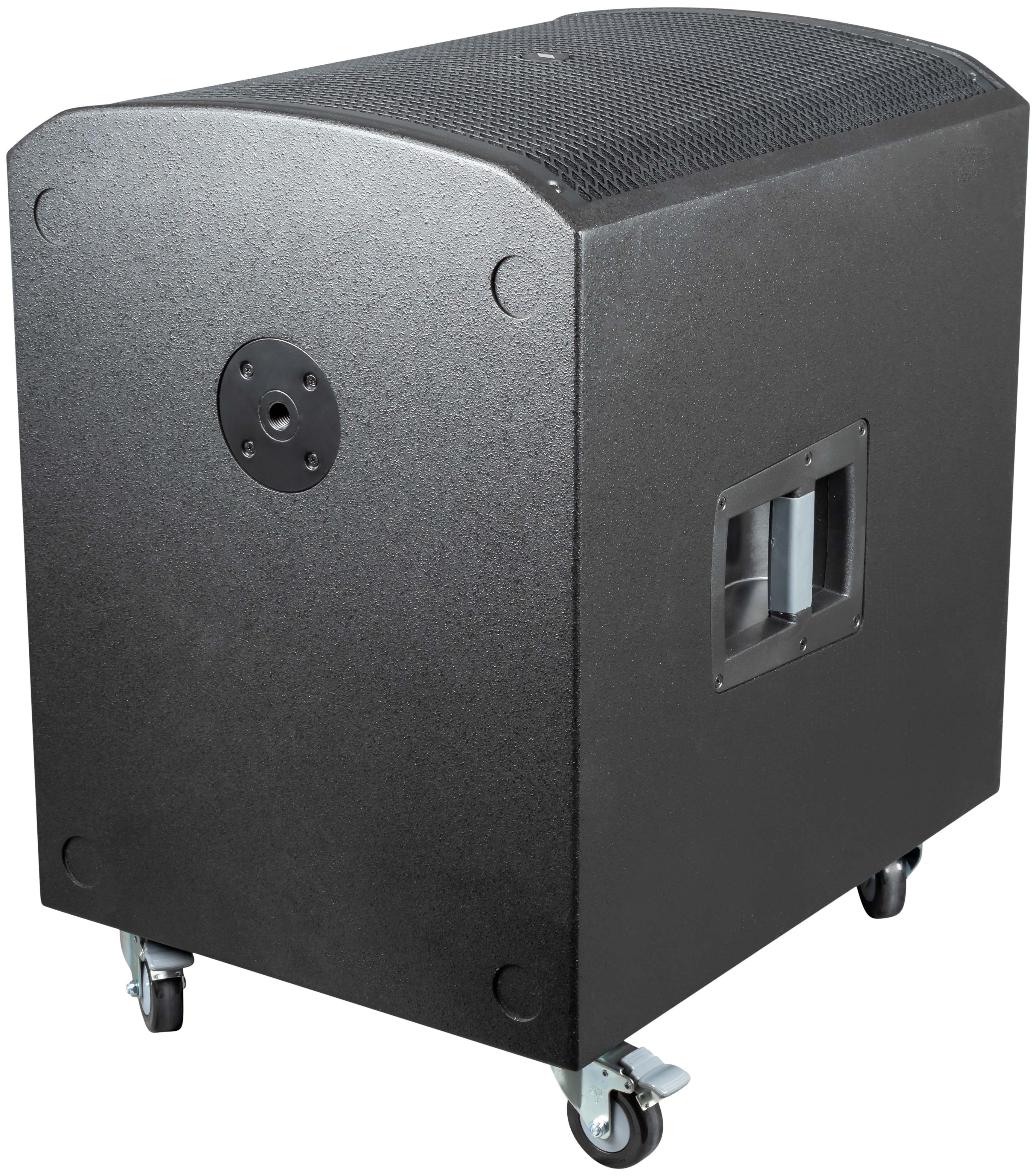

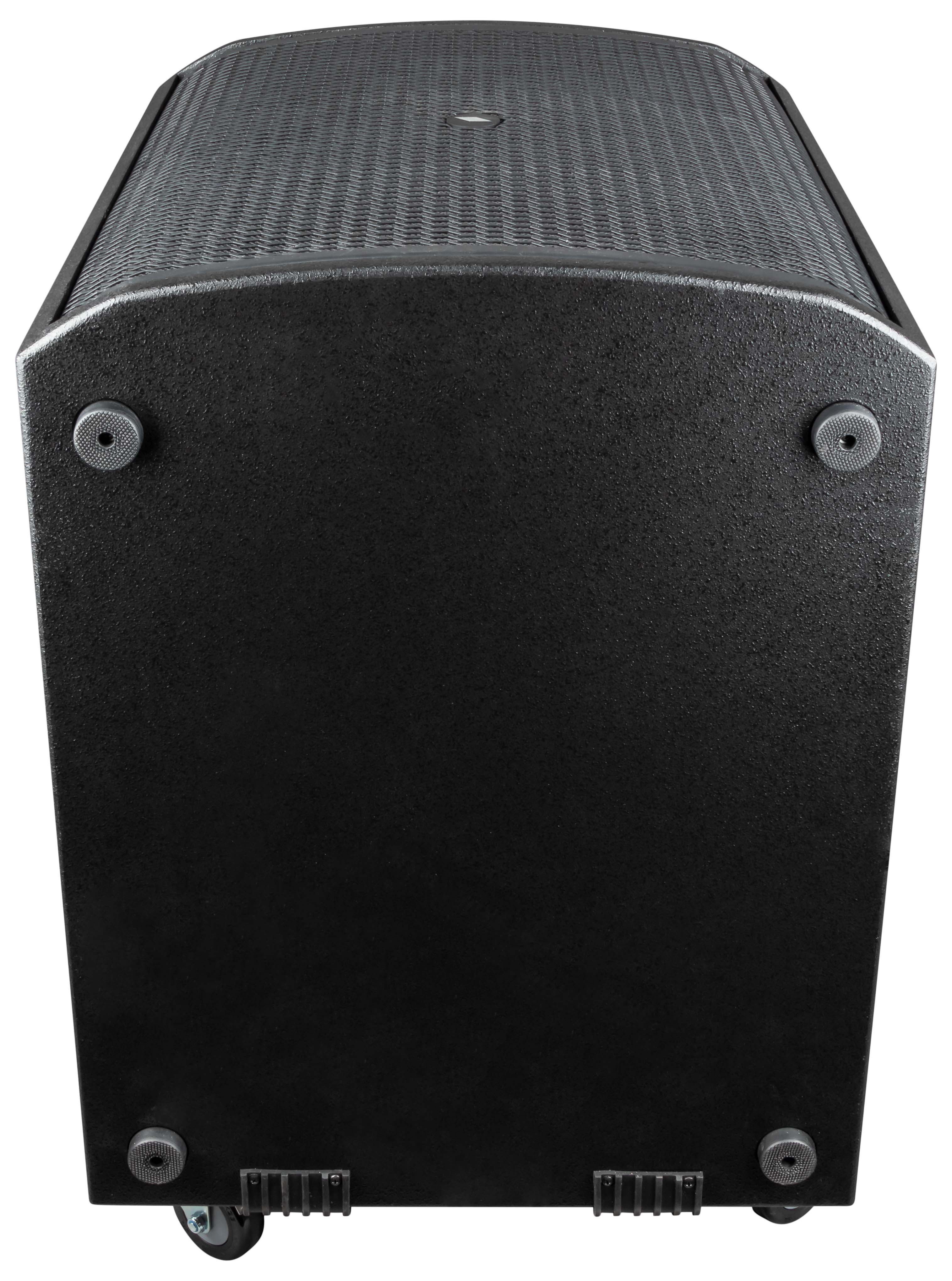

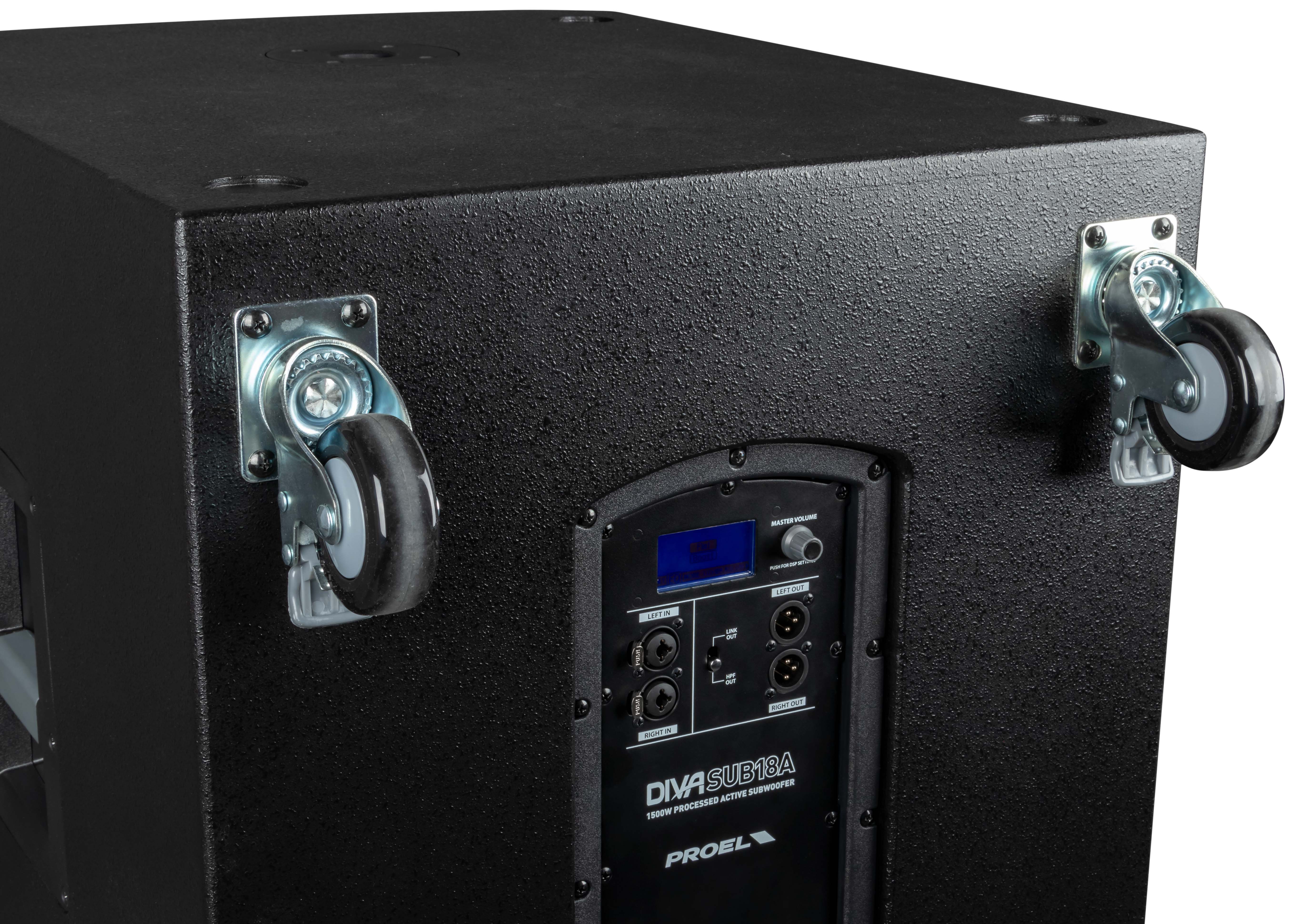

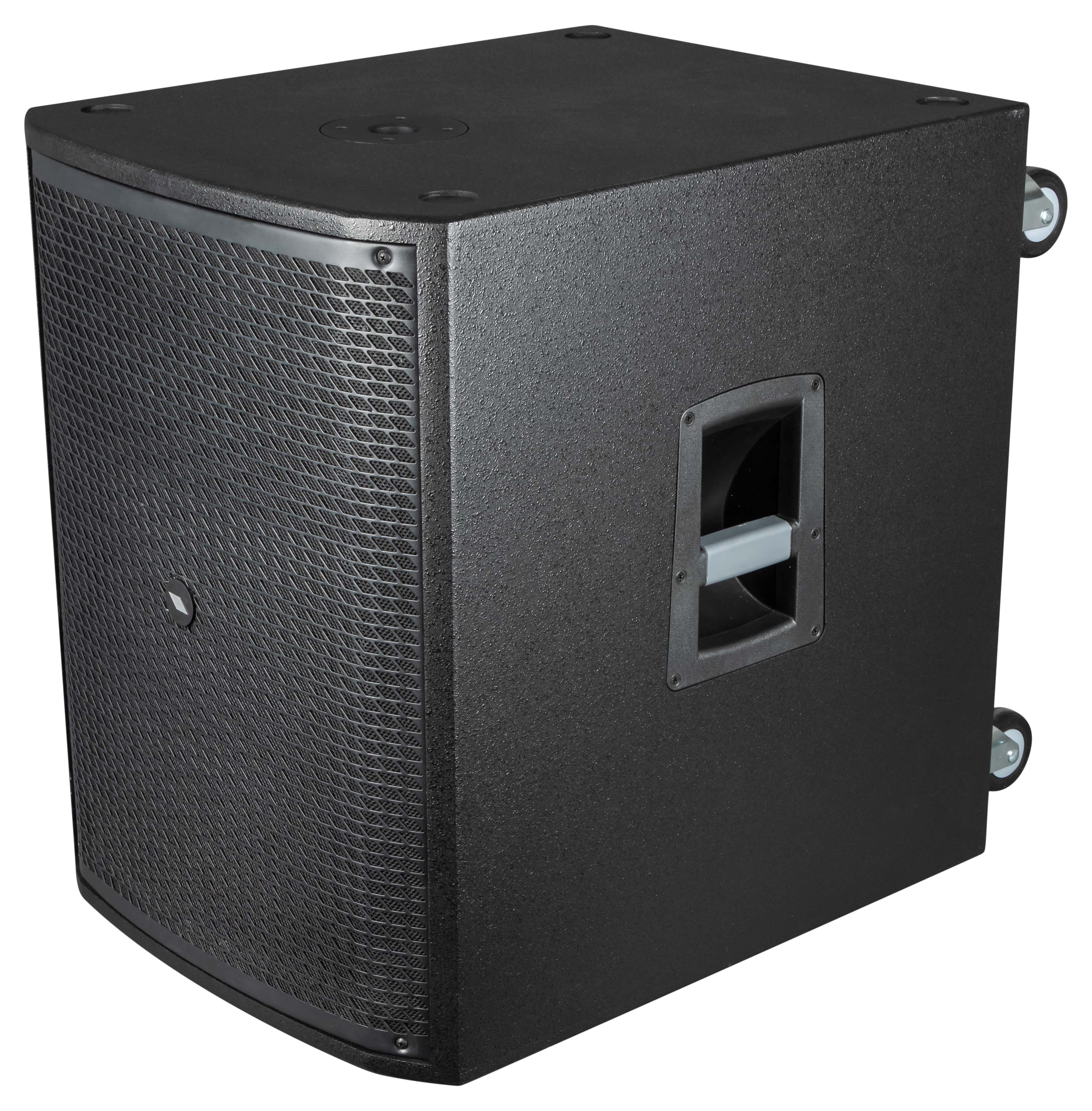

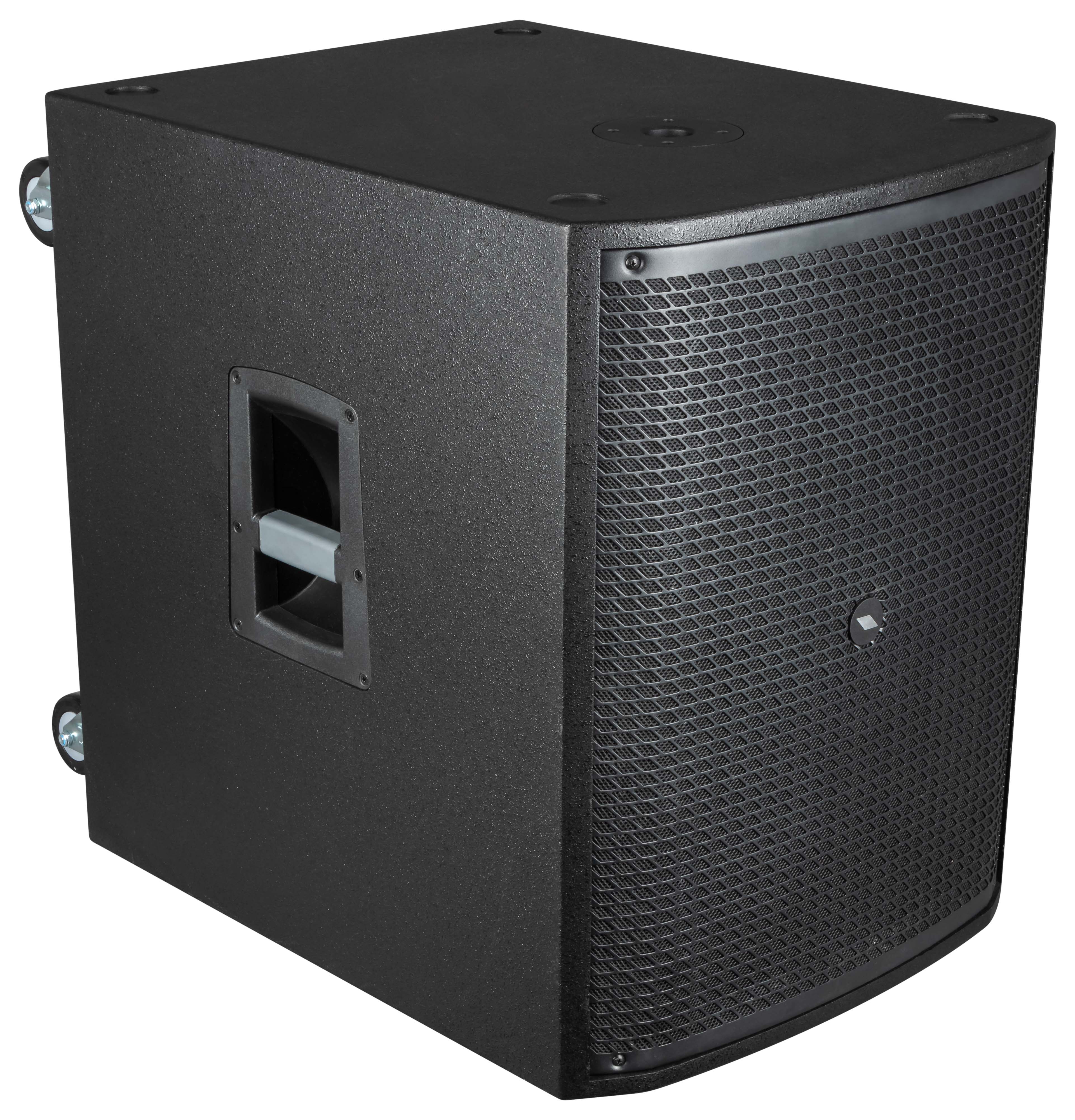

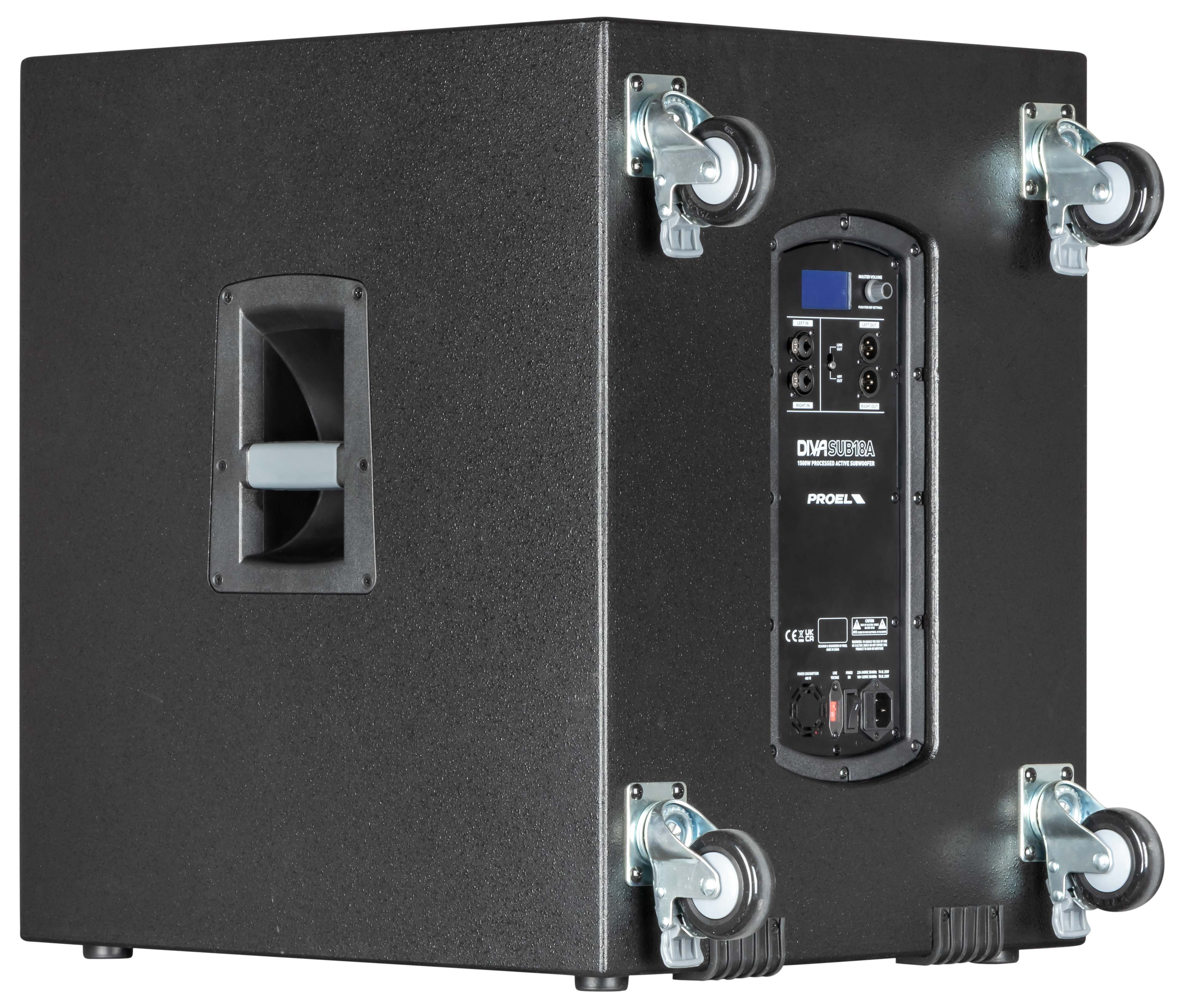

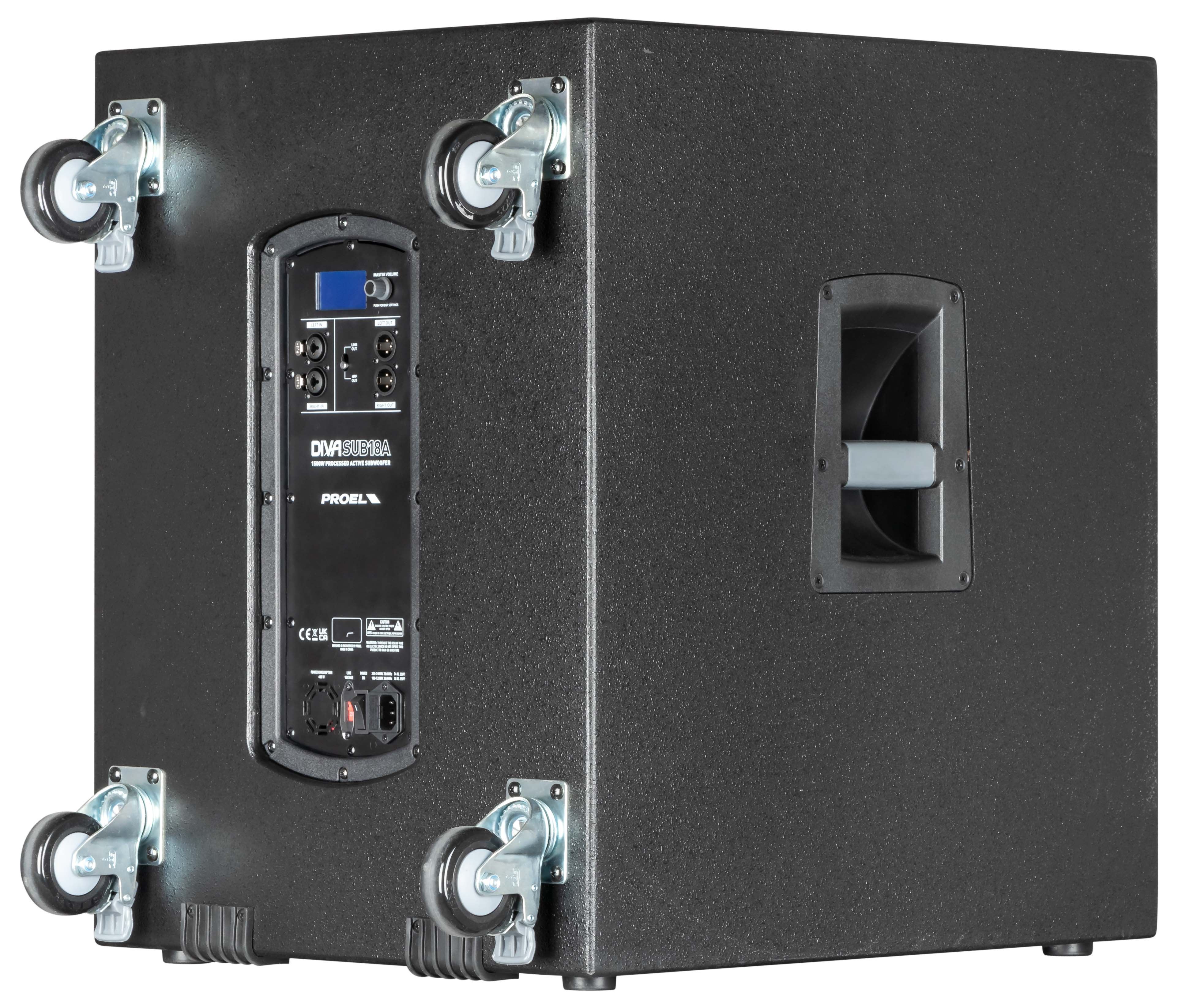

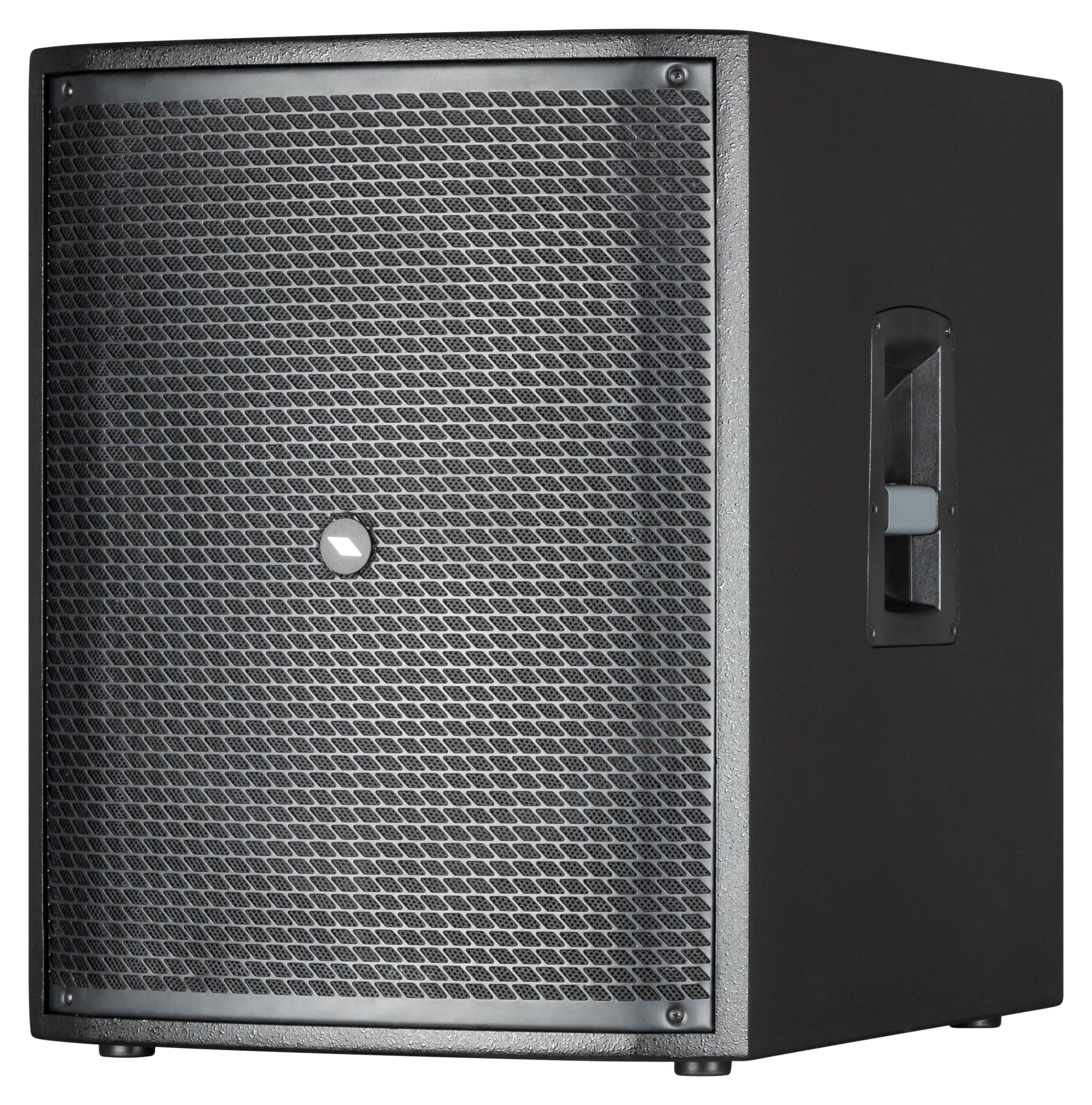

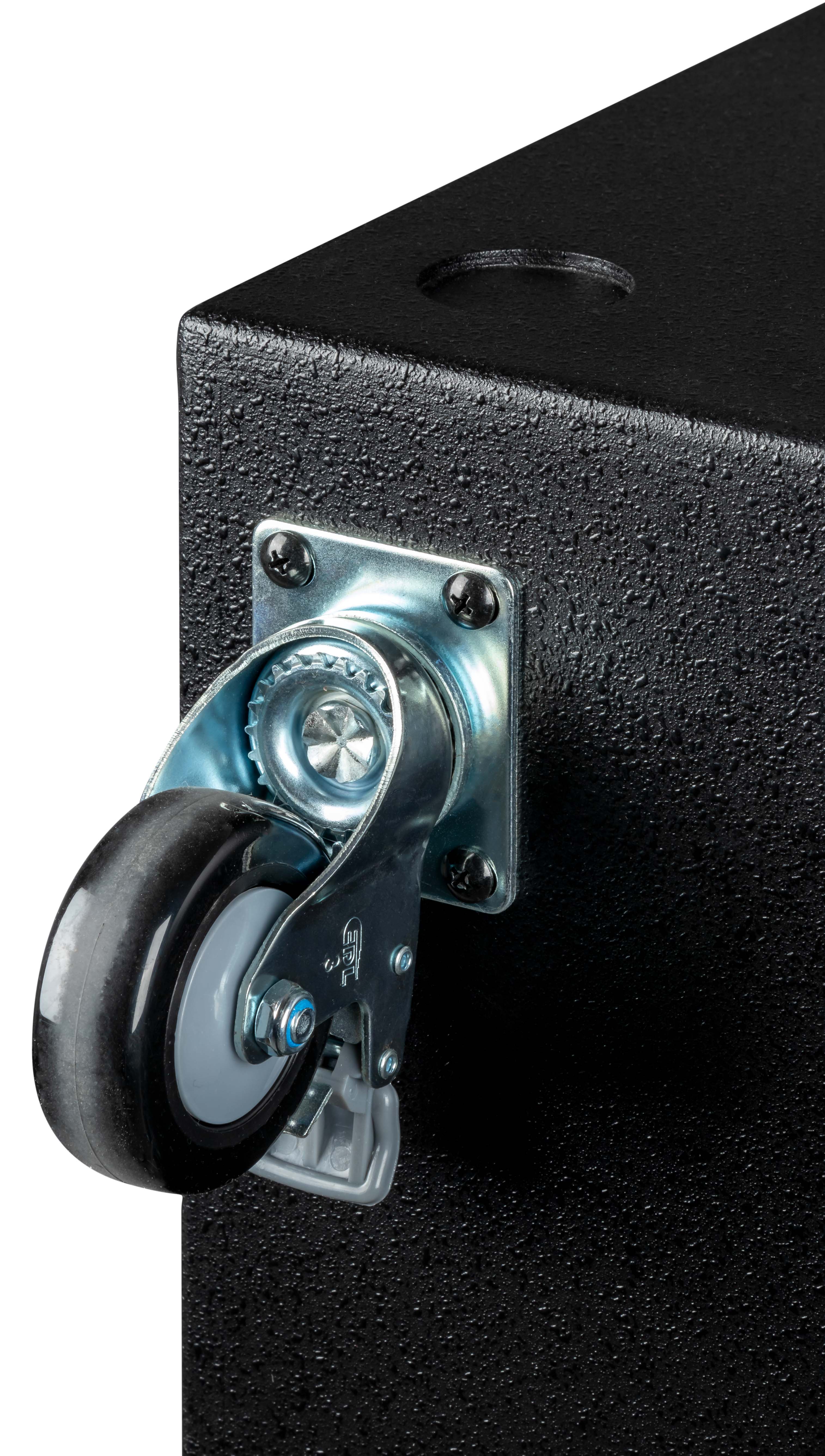

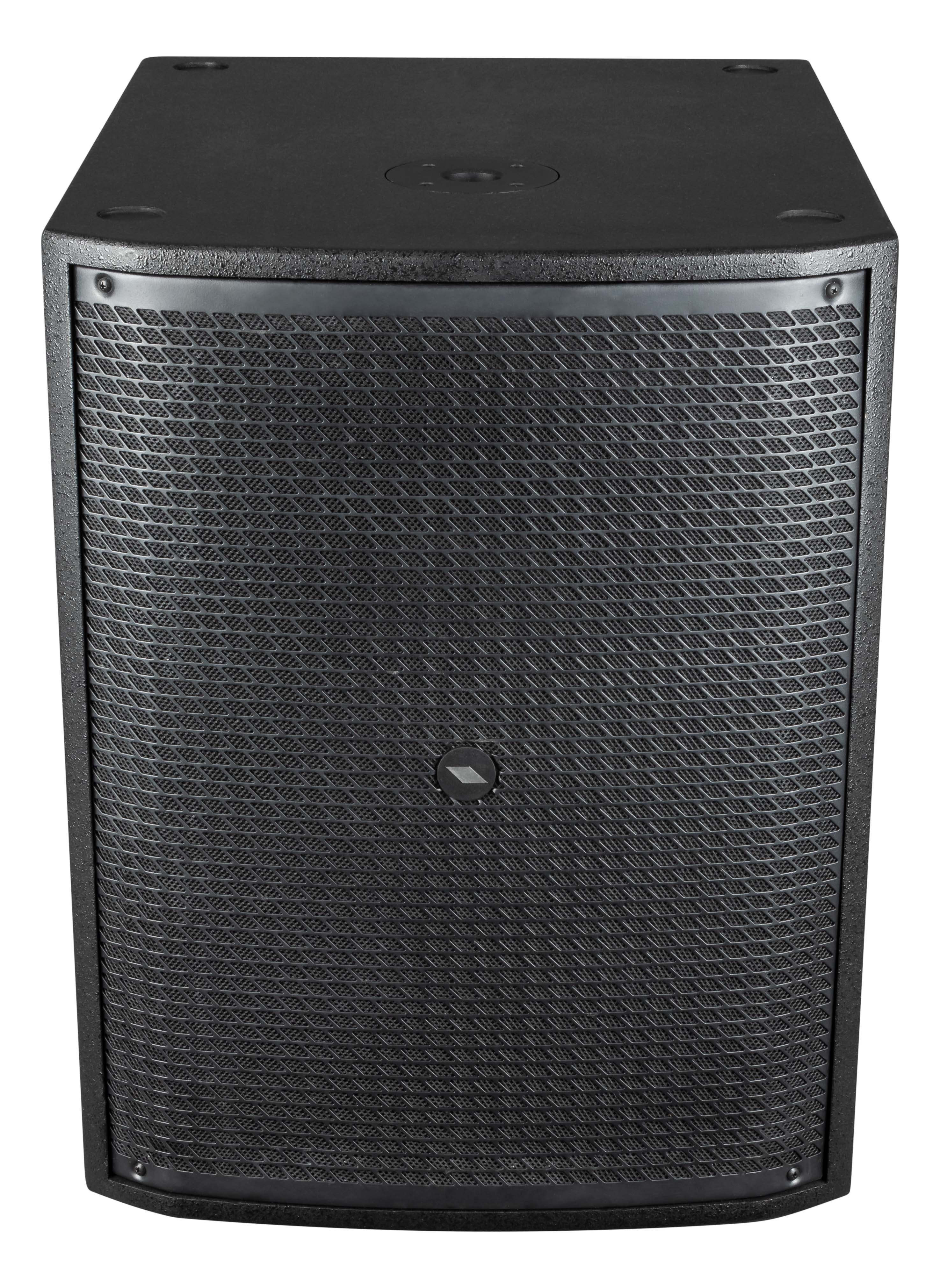

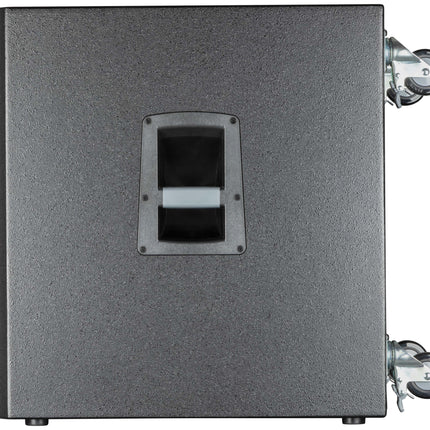

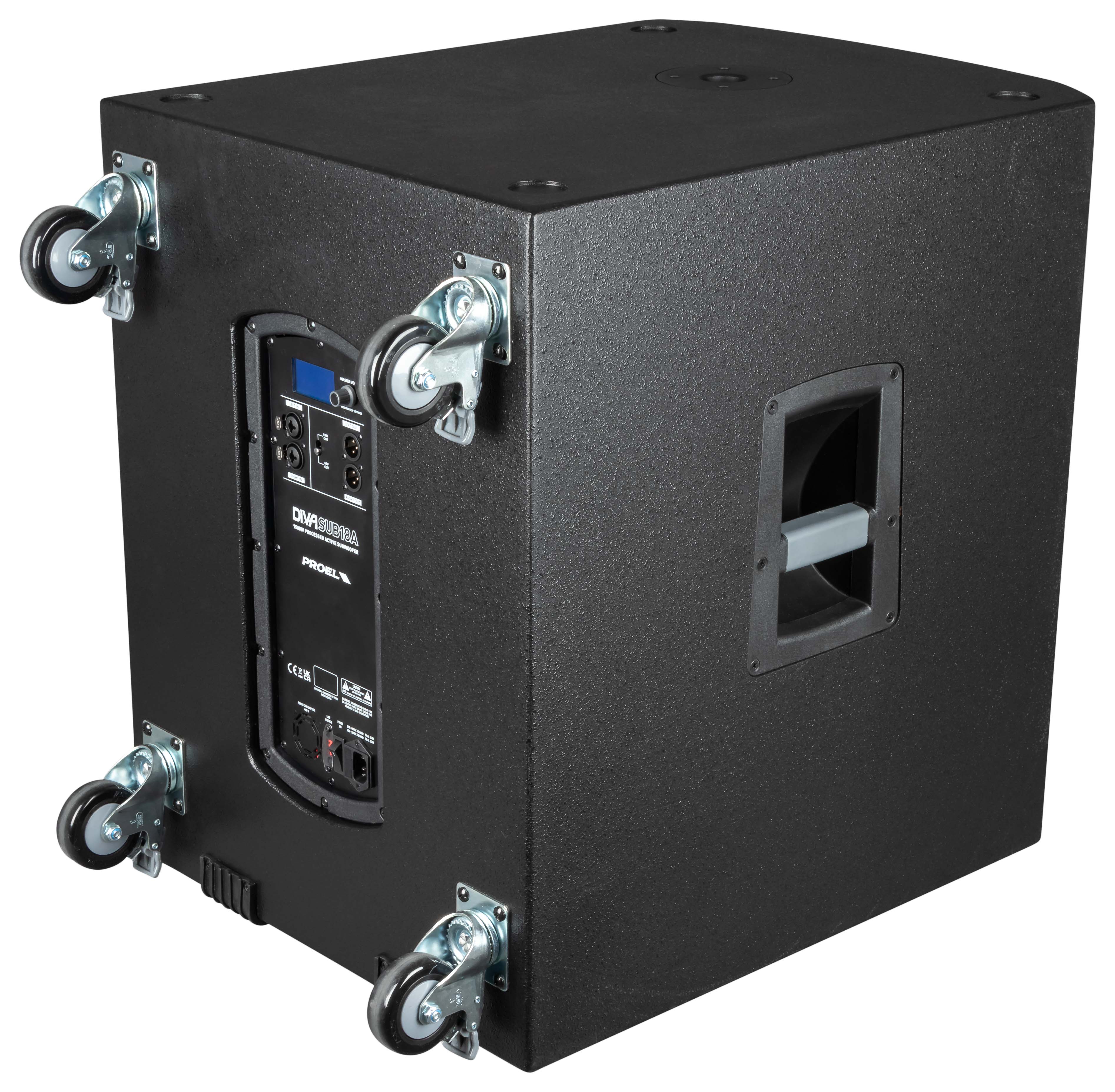

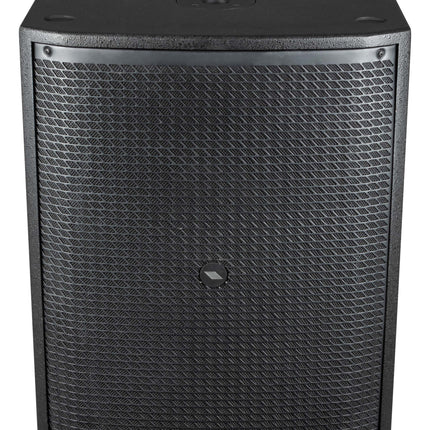

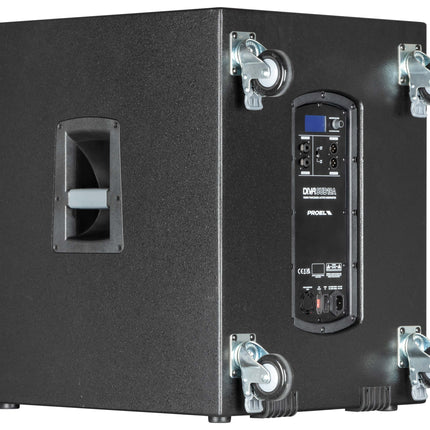

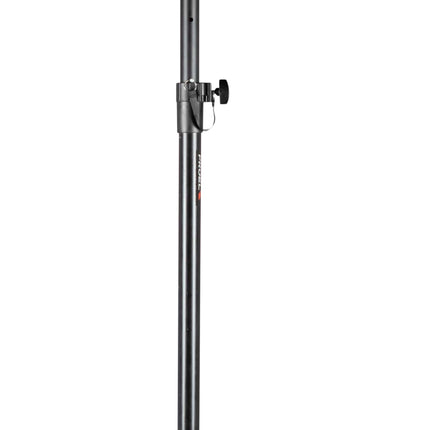

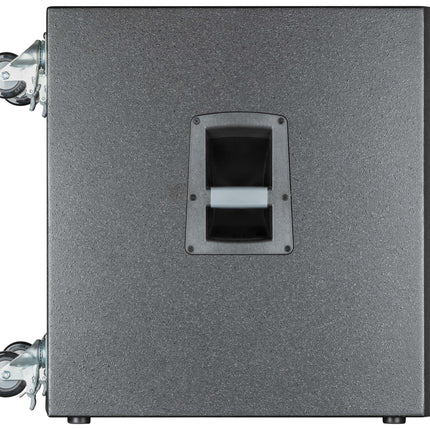

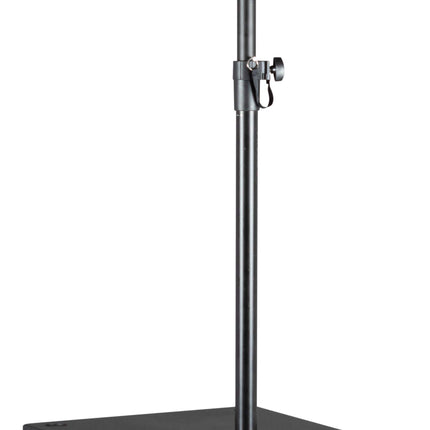

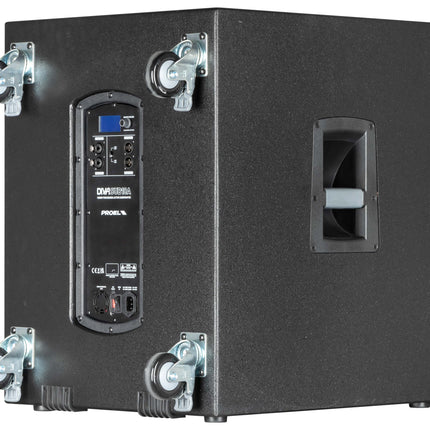

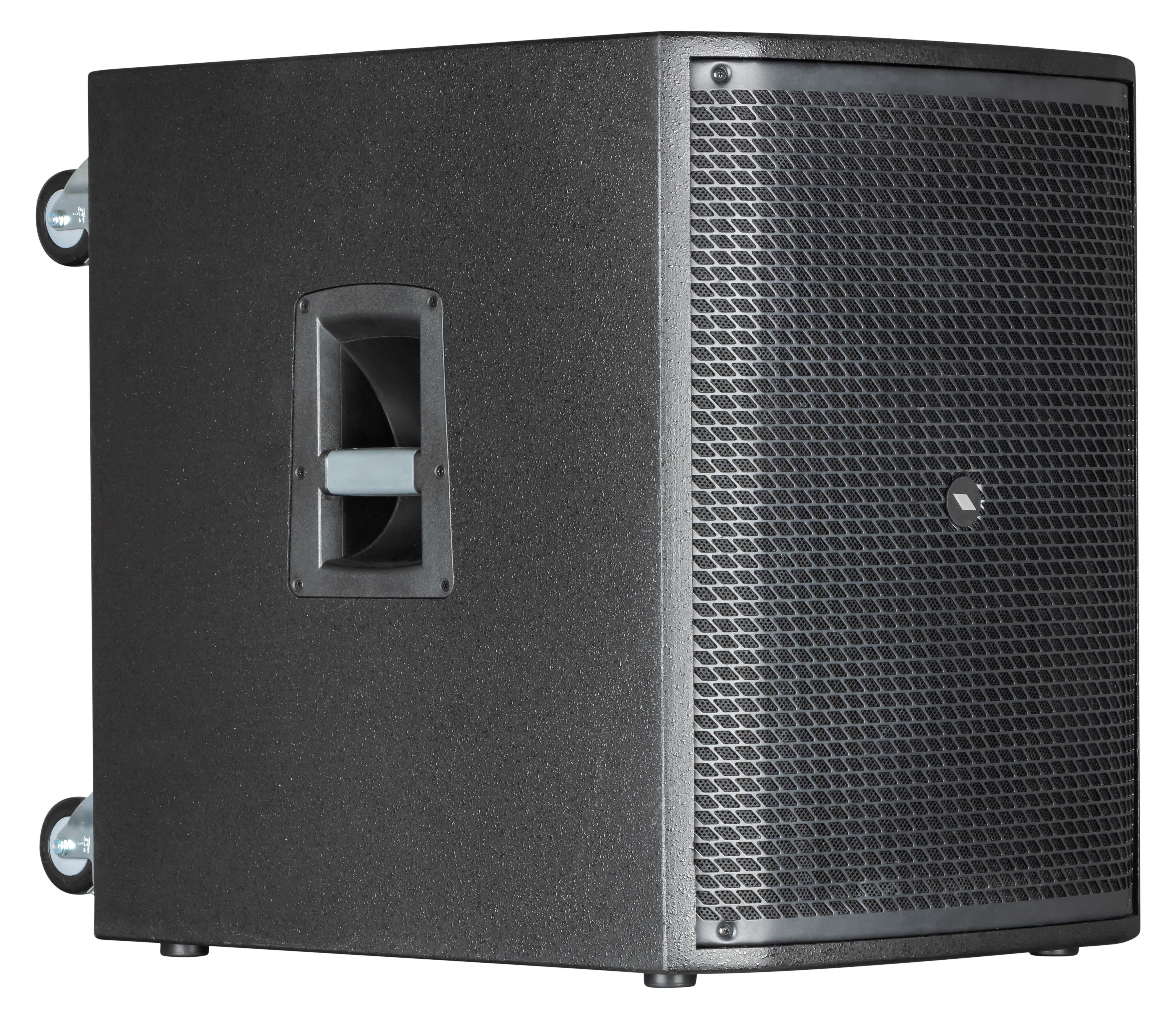

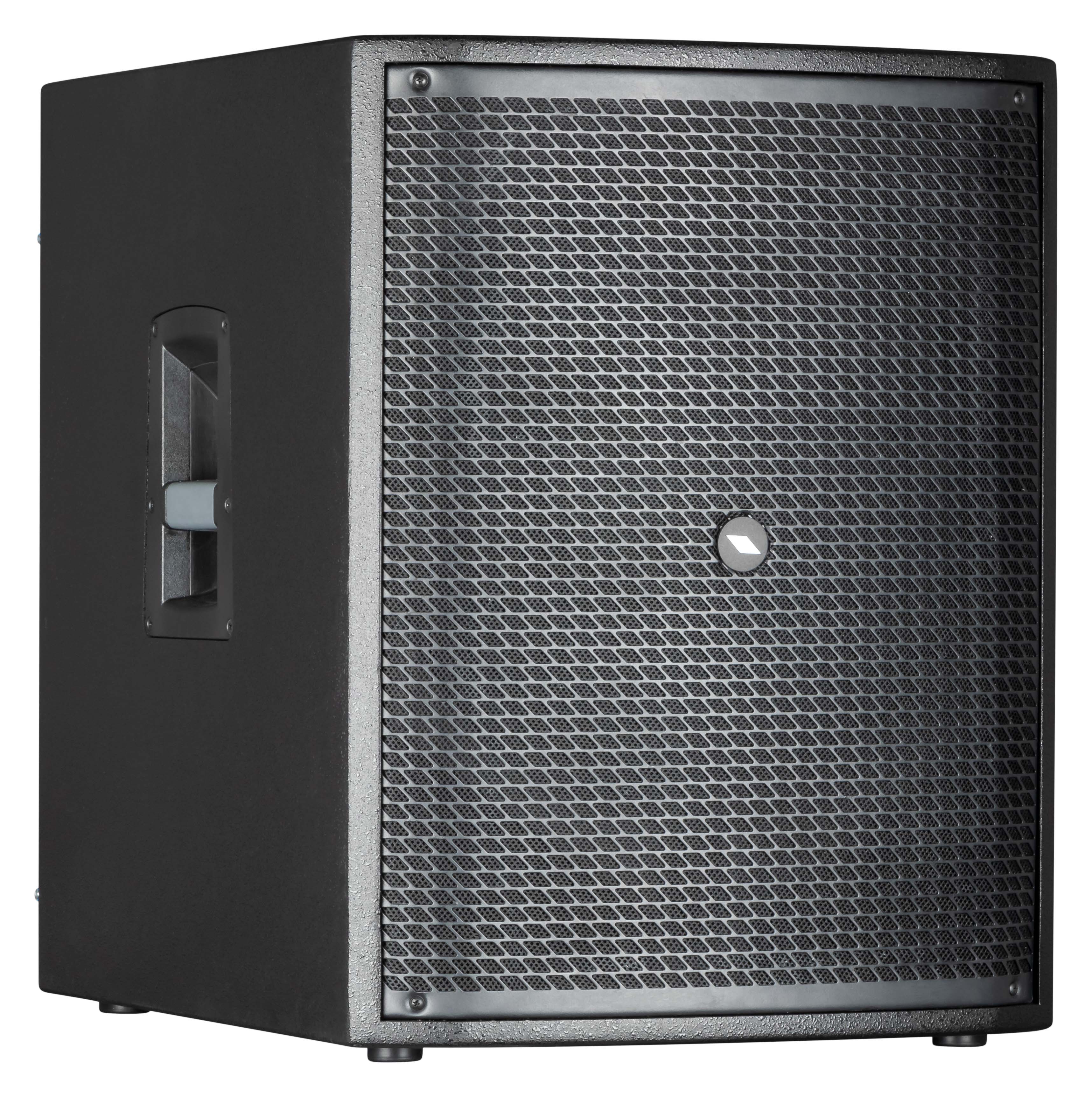

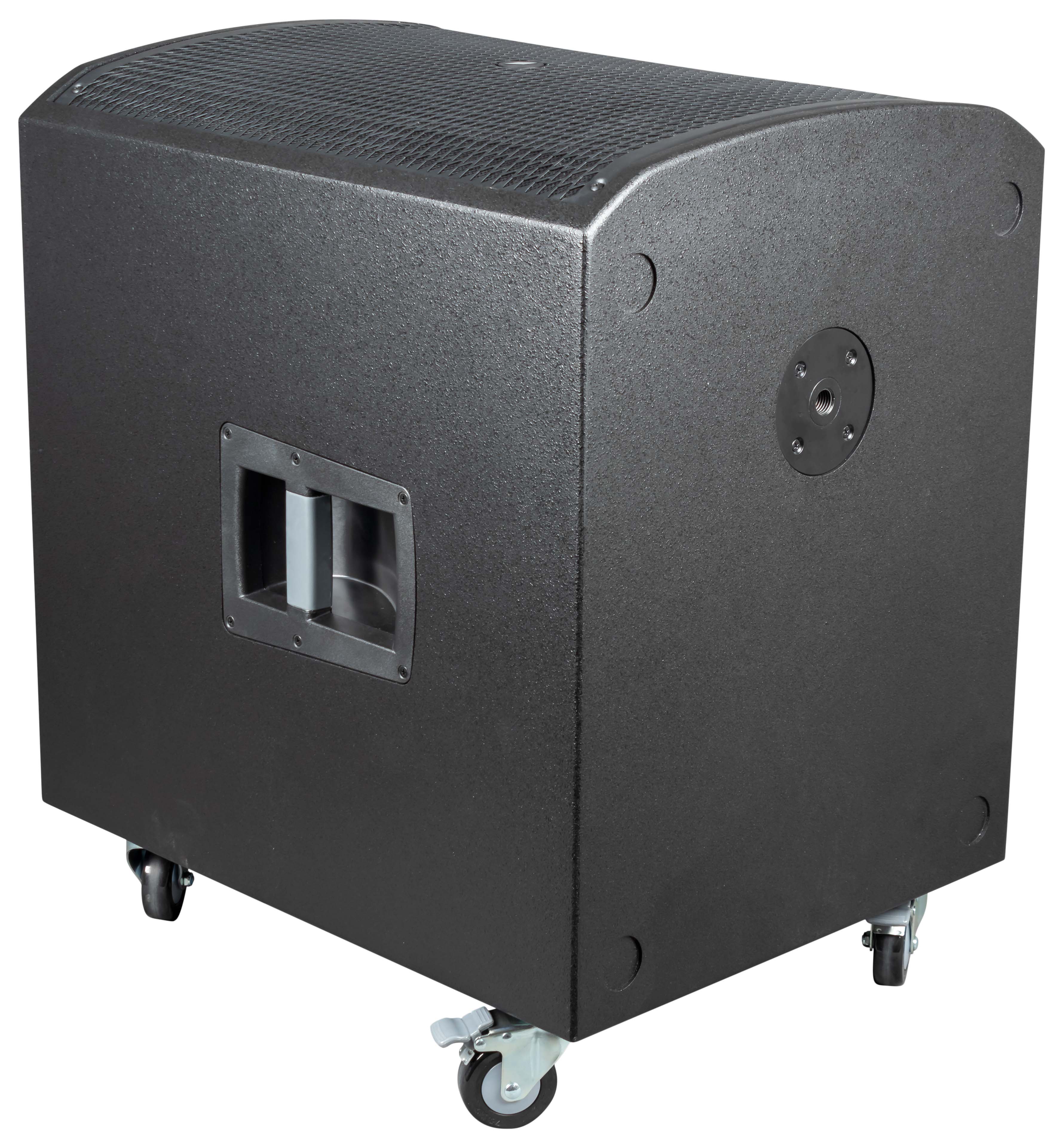

DIVASUB18A is housed in a lightweight and ultra-resistant plywood cabinet, with steel protection grille, two ergonomic handles, flange for support pole with M20 connection and 4 professional wheels equipped with braking system supplied as standard, for maximum ease of transport.

  • Compact active subwoofer
  • High efficiency custom 18" woofer with 3" VC
  • 1500W peak power
  • STEREO input and output
  • High-definition DSP with 24-bit converters
  • 2 presets (FLAT/BOOST) and 2 modes of use (NORMAL/CARDIOD)
  • DELAY selection up to 10mt
  • LCD display for DSP editing
  • MAXIMUM SPL 132dB
  • Frequency response 35 Hz – 160 Hz

Technical specs:

System type Vented enclosure subwoofer
Loudspeaker 18''  woofer with 3" VC
Amplifier Continuous Power 750 W
Amplifier Peak Power 1500 W
Frequency Response 35 Hz - 160 Hz
Max SPL 132 dB

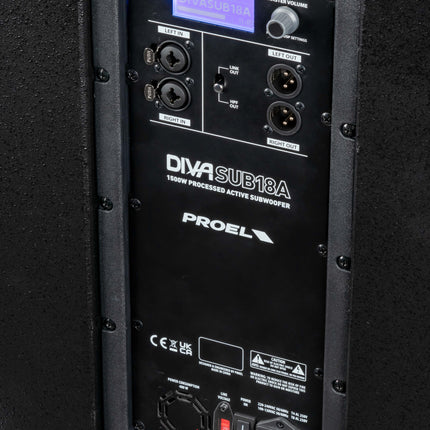

Connectors IN: 2 x NEUTRIK COMBO
OUT: 2 x NEUTRIK XLR-M
Controls LCD
DIAL
Power Supply 230 VAC or 115 VAC 50/60 Hz
Weight 38 kg (83.77 lb)
Cabinet 15/18 mm plywood
Black anti-scratch paint
1.5 mm metal grille
2 handles
1 x pole socket

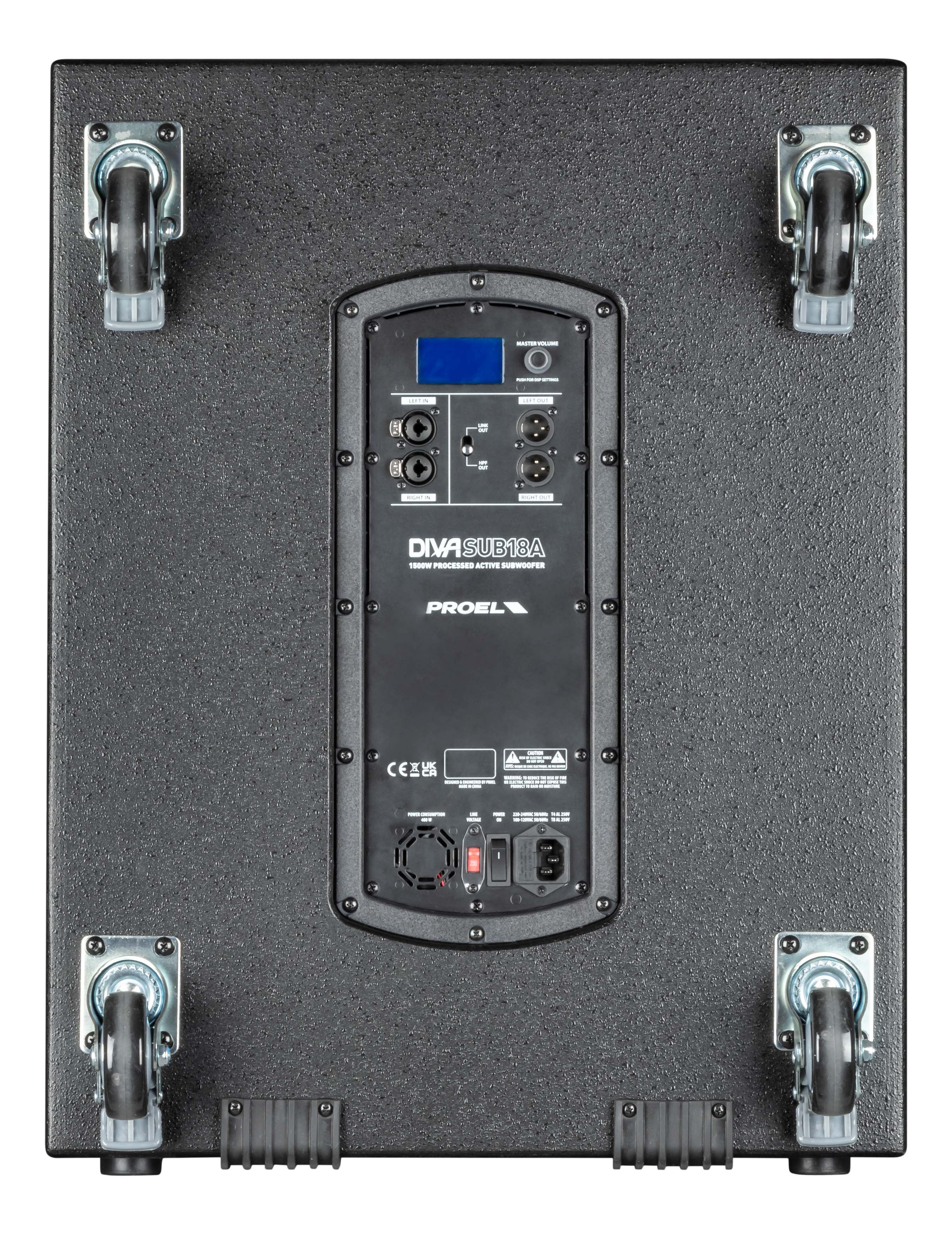

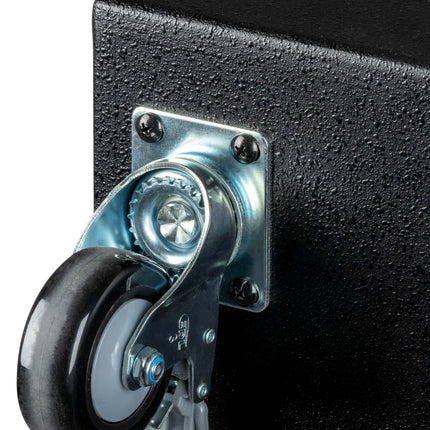

4 x 75 mm wheels
Dimensions (W x H x D) 510x650x650 (without wheels) mm
510x650x752 (with wheels) mm

Read more
