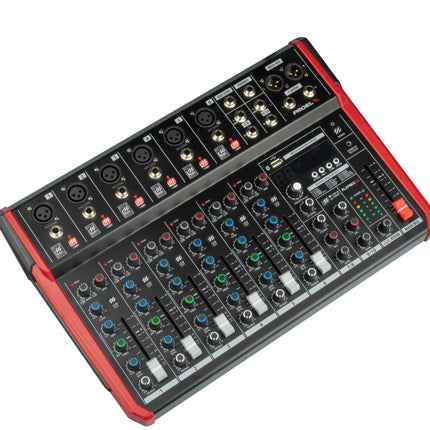

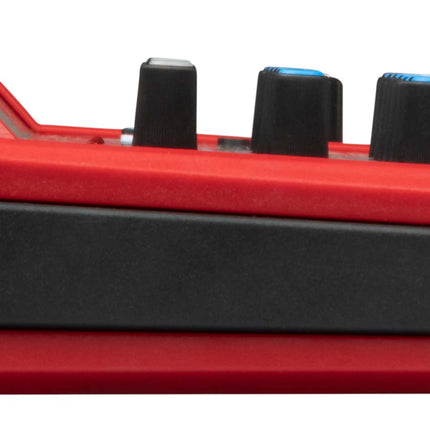

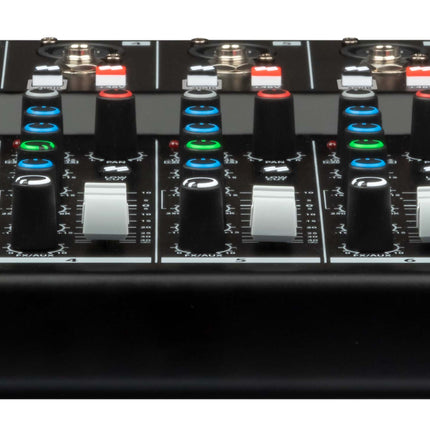

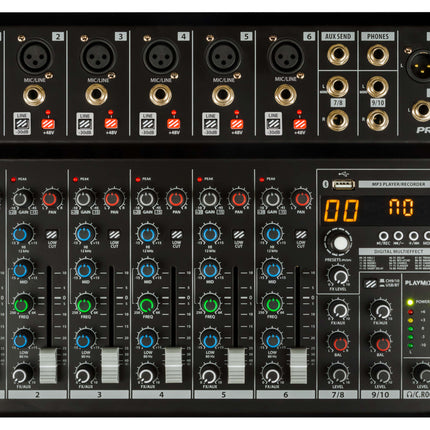

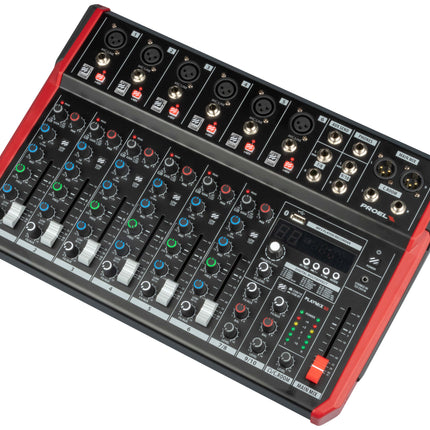

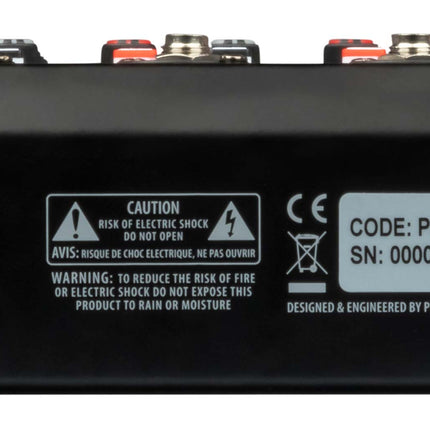

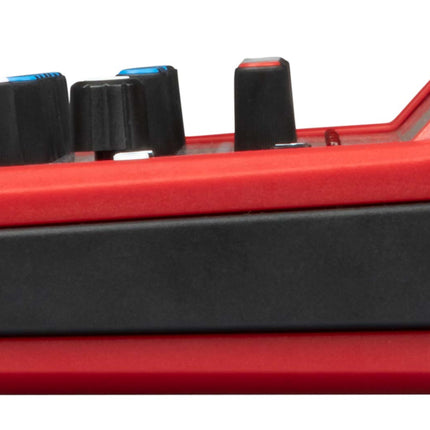

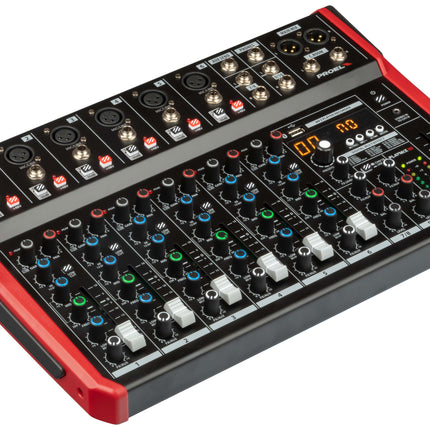

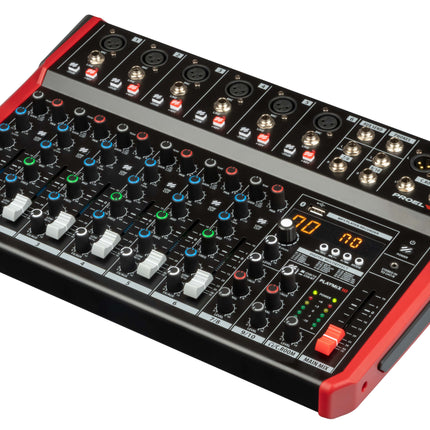

Proel Sound systems Mixer PLAYMIX10

Name: Proel Sound systems Mixer PLAYMIX10
Brand: Proel Sound
SKU: PLAYMIX10
Price: 150.29 EUR
Availability: InStock

Product form

SKU: PLAYMIX10
Barcode: 8032496914594

1 in stock

€150,29 Excl. VAT

Where to buy?

Find your nearest dealer here

MONO INPUT CHANNEL
Mic Input	sensitivity	from -10 to -45 dB	Balanced XLR-F
	impedance	1 Kohm
Line Input	sensitivity	from +20 to -15 dB	Balanced JACK
	impedance	20 Kohm
Lo cut		80Hz, 6dB/oct.
EQ	HIGH (shelving)	±15 dB @ 12K Hz
	MID (peaking)	±12 dB @ 250-6K Hz
	LOW (shelving)	±15 dB @ 80 Hz
STEREO INPUT CHANNEL
Line Input	sensitivity	from +12 to -15 dB	Balanced JACK
	impedance	20 Kohm	Stereo Mini JACK
MASTER SECTION
MAIN MIX	nom. out level	+4 dBu	Unbalanced XLR-M
C. ROOM output	nom. out level	+4 dBu	Unbalanced JACK
SEND output	nom. out level	+4 dBu	Unbalanced JACK
HEADPHONES	min. impedance	64 ohm	Stereo JACK
Bluetooth		Version 5.0, Audio Streaming
USB Audio Interface		Stereo IN/OUT, 16-bit converter 44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate	Type A
DIGITAL EFFECT PROCESSOR
Effects		100 presets
A/D and D/A converters		24 bit
DSP resolution		24 bit
Controls		2-DIGIT display, DIAL, LEVEL
GENERAL SPECIFICATIONS
Maximum level	all outputs	+15 dBu
Crosstalk	meas. at 1 KHz	> 75 dB
HUM & Noise	unweighted	< 90 dB
THD + Noise	at +4dB, 1kHz	< 0,009 %
Dimensions (WxHxD)		415x 274 x 61 mm
Weight		3,00 kg
POWER REQUIREMENTS
Supply		use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage		100-240 VAC (±10%) 50/60 Hz
Consumption		15 W
