Proel Sound systems Mixer PLAYMIX8

Description

Description

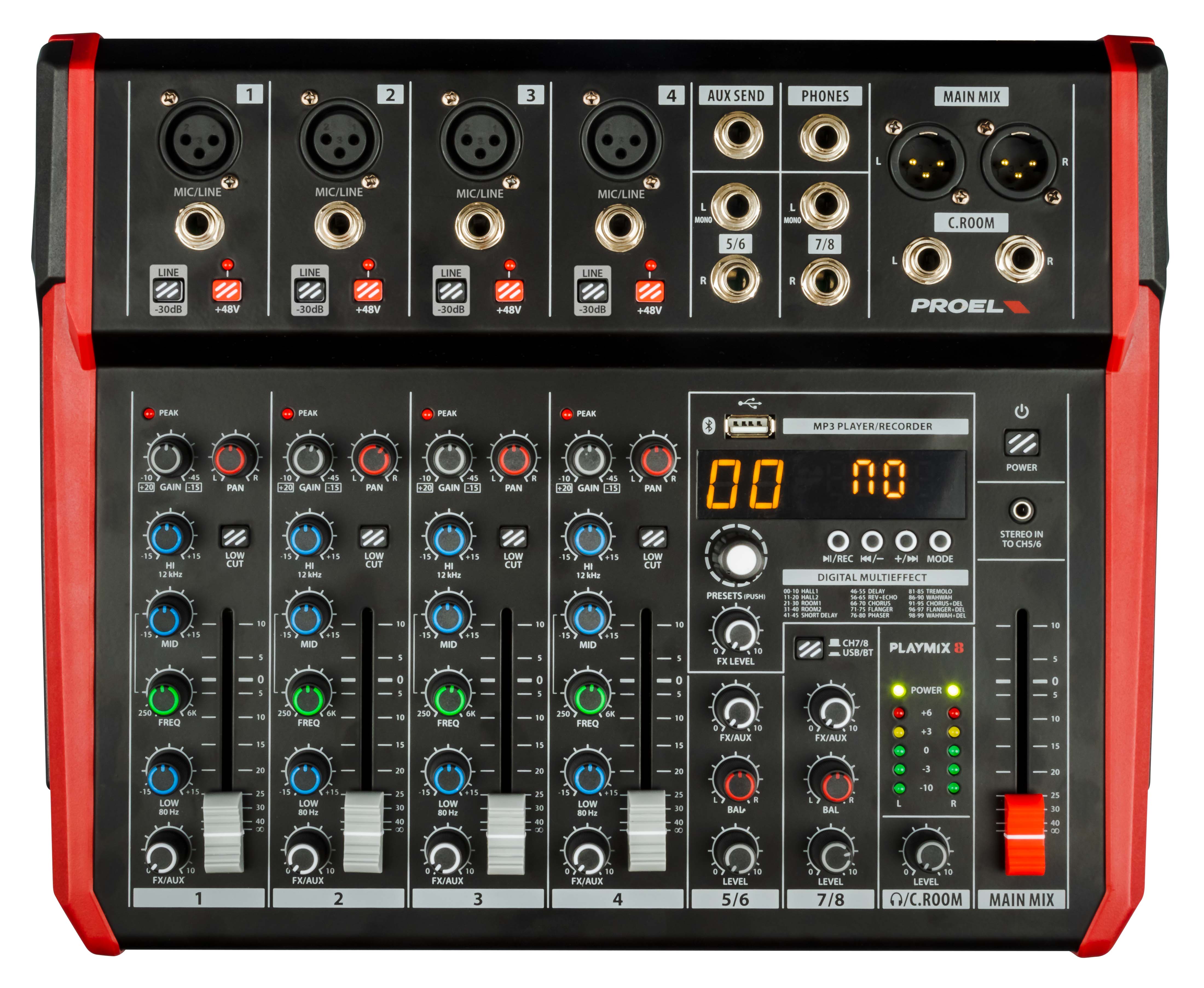

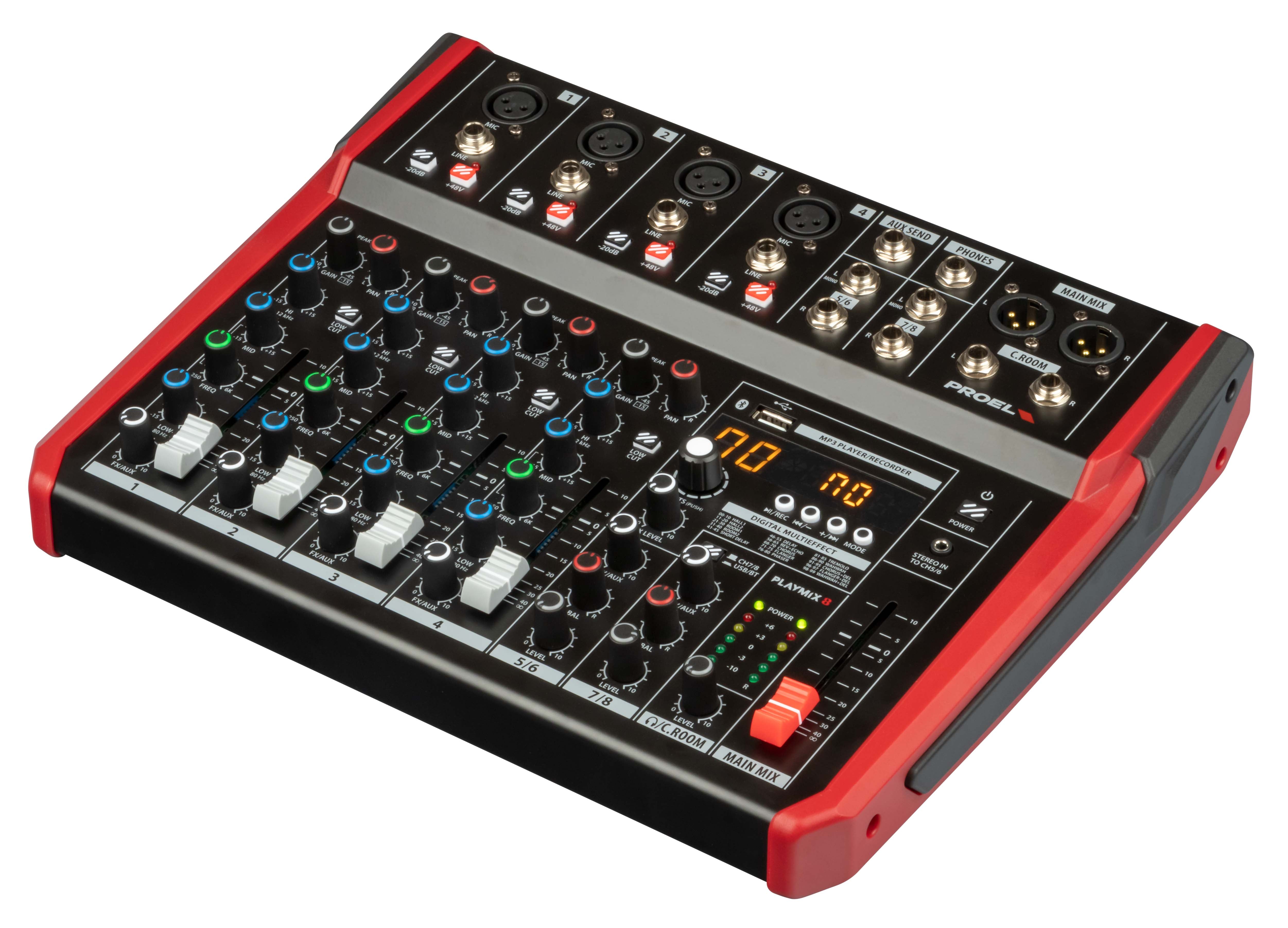

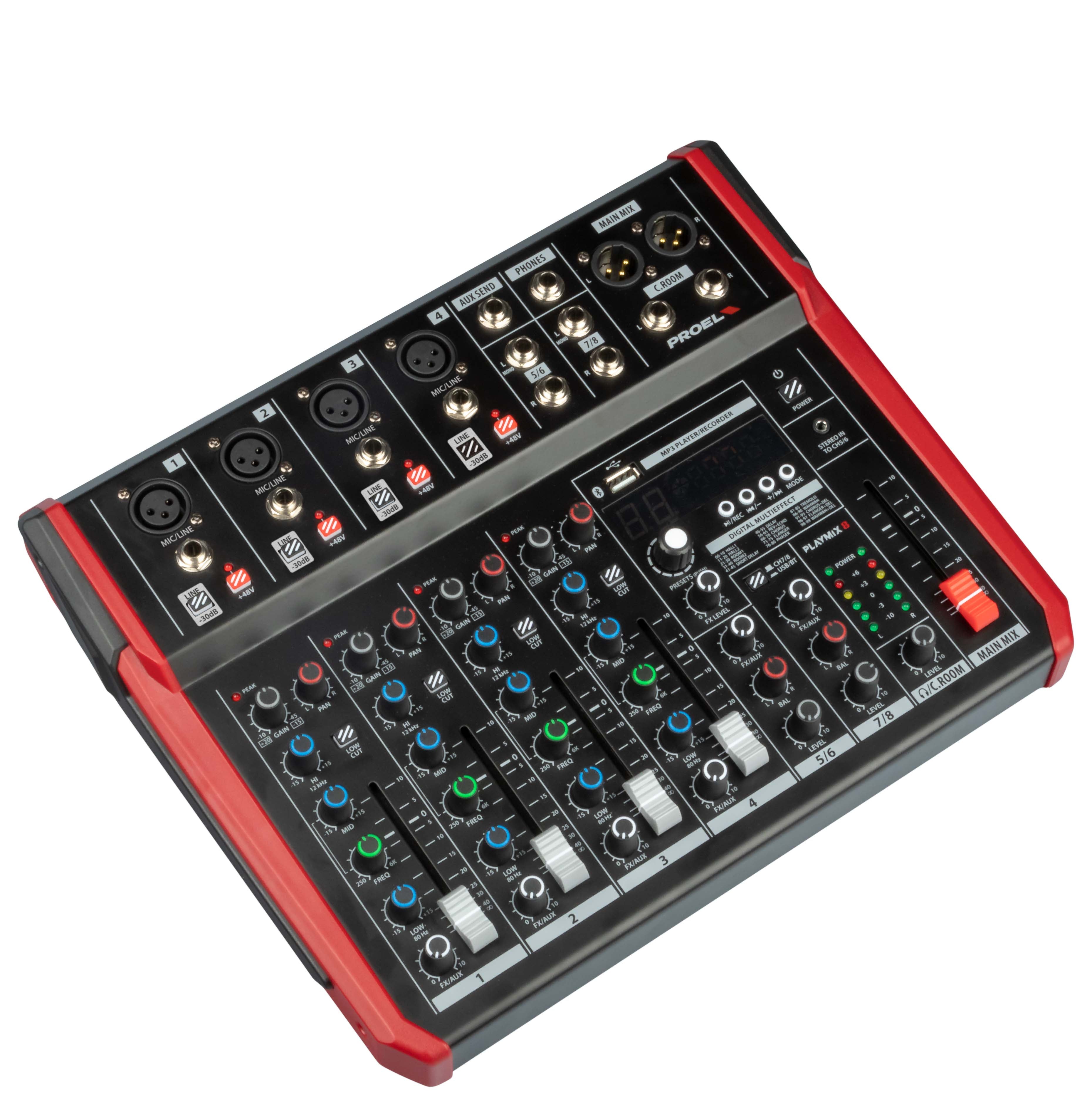

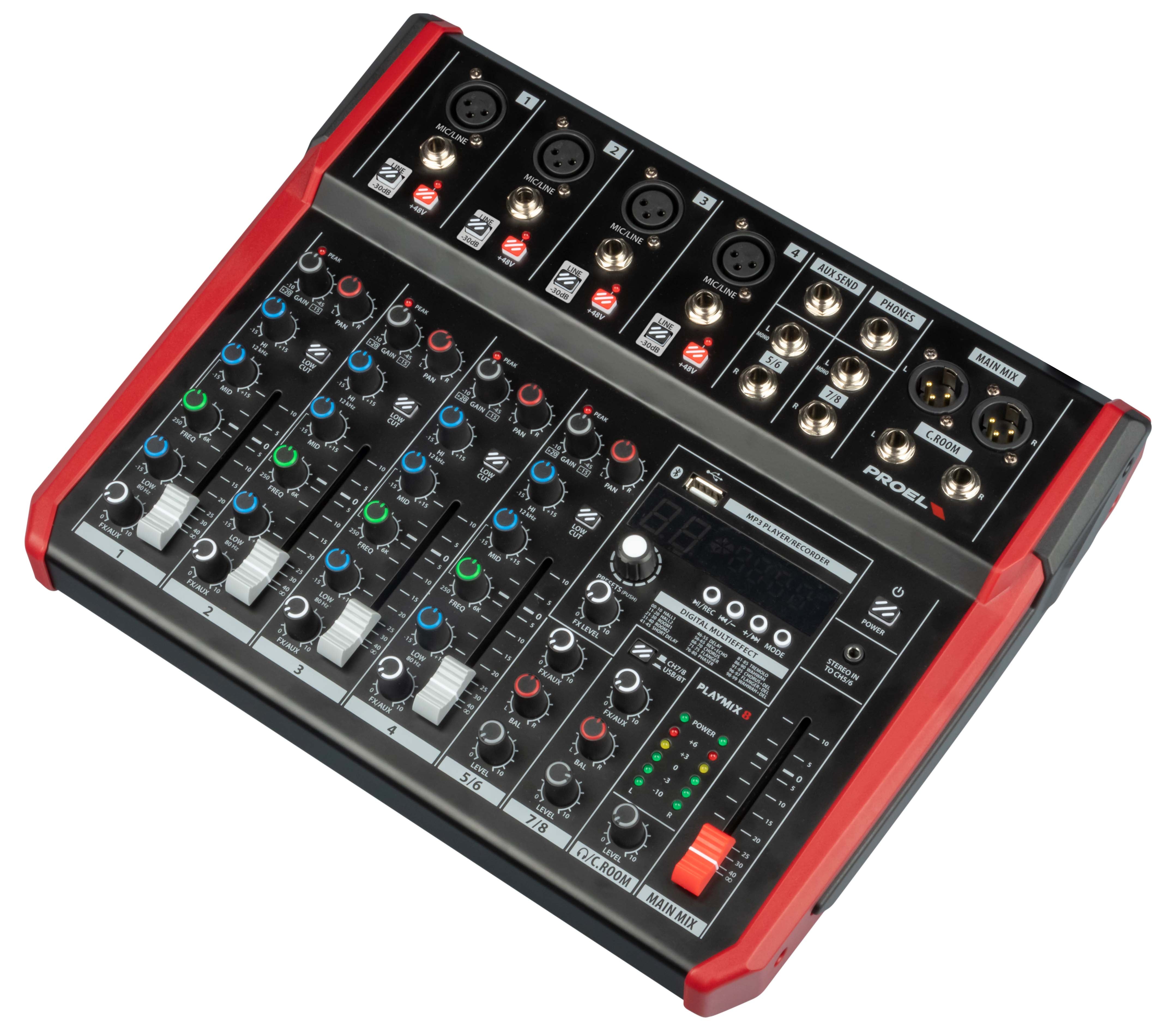

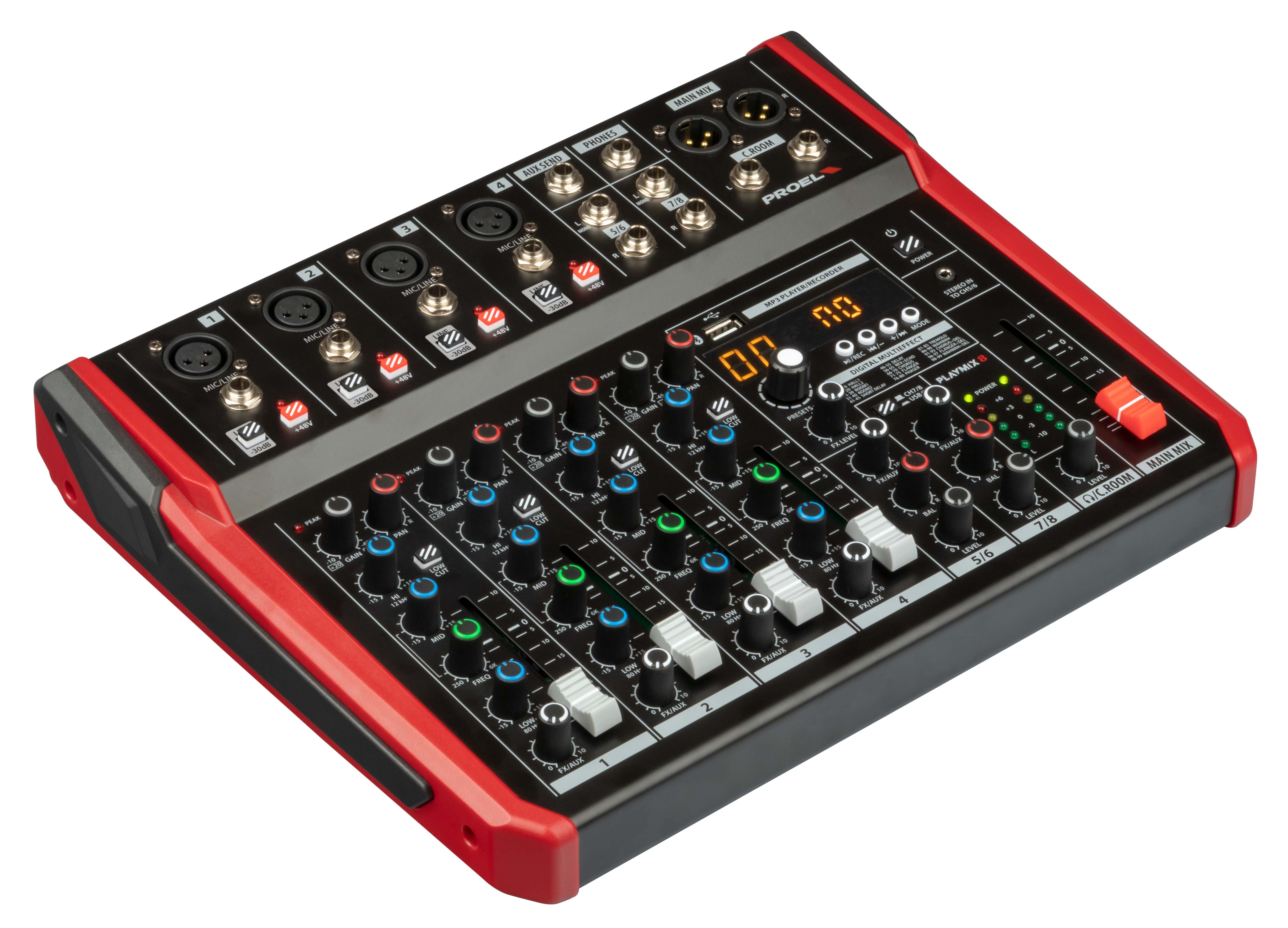

8-channel Compact Mixer PLAYMIX8

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

- A 48KHz stereo USB audio interface for playing/recording thru PC connection

- A built-in MP3 player from USB memory key or BLUETOOTH interface

- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.

Technical Specs:

MONO INPUT CHANNEL
Mic Input sensitivity from -10 to -45 dB Balanced XLR-F
  impedance 1 Kohm
Line Input sensitivity from +20 to -15 dB Balanced JACK
  impedance 20 Kohm
Lo cut   80Hz, 6dB/oct.
EQ HIGH (shelving) ±15 dB @ 12K Hz
  MID (peaking) ±12 dB @ 250-6K Hz
  LOW (shelving) ±15 dB @ 80 Hz
STEREO INPUT CHANNEL
Line Input sensitivity from +12 to -15 dB Balanced JACK
  impedance 20 Kohm Stereo Mini JACK
MASTER SECTION
MAIN MIX nom. out level  +4 dBu Unbalanced XLR-M
C. ROOM output nom. out level +4 dBu Unbalanced JACK
SEND output nom. out level +4 dBu Unbalanced JACK
HEADPHONES min. impedance 64 ohm Stereo JACK
Bluetooth   Version 5.0, Audio Streaming
USB Audio Interface   Stereo IN/OUT, 16-bit converter
44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate		 Type A
DIGITAL EFFECT PROCESSOR
Effects   100 presets
A/D and D/A converters   24 bit
DSP resolution   24 bit
Controls   2-DIGIT display, DIAL, LEVEL
GENERAL SPECIFICATIONS
Maximum level all outputs +15 dBu
Crosstalk meas. at 1 KHz > 75 dB
HUM & Noise unweighted < 90 dB
THD + Noise at +4dB, 1kHz < 0,009 %
Dimensions (WxHxD)   331 x 274 x 61 mm
Weight   2,50 kg
POWER REQUIREMENTS
Supply   use only supplied AC/DC ADAPTER 5VDC 1A
Mains Supply Voltage   100-240 VAC (±10%)  50/60 Hz
Consumption   15 W

Read more

Proel Sound systems Mixer PLAYMIX8

Product form

8-channel Compact Mixer PLAYMIX8 PLAYMIX is a series of mixers created by PROEL to offer in a very compact and... Read more

Pickup at our warehouse?

SKU: PLAYMIX8
Barcode: 8032496914587

4 in stock

Dealers login for price
Dealers login for price
      Where to buy?

    Find your nearest dealer here

    Description

    Description

    8-channel Compact Mixer PLAYMIX8

    PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

    PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

    All models feature an advanced DIGITAL section with LCD display, including:

    - A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

    - A 48KHz stereo USB audio interface for playing/recording thru PC connection

    - A built-in MP3 player from USB memory key or BLUETOOTH interface

    - On-the-go stereo recording on USB memory key

    Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.

    Technical Specs:

    MONO INPUT CHANNEL
    Mic Input sensitivity from -10 to -45 dB Balanced XLR-F
      impedance 1 Kohm
    Line Input sensitivity from +20 to -15 dB Balanced JACK
      impedance 20 Kohm
    Lo cut   80Hz, 6dB/oct.
    EQ HIGH (shelving) ±15 dB @ 12K Hz
      MID (peaking) ±12 dB @ 250-6K Hz
      LOW (shelving) ±15 dB @ 80 Hz
    STEREO INPUT CHANNEL
    Line Input sensitivity from +12 to -15 dB Balanced JACK
      impedance 20 Kohm Stereo Mini JACK
    MASTER SECTION
    MAIN MIX nom. out level  +4 dBu Unbalanced XLR-M
    C. ROOM output nom. out level +4 dBu Unbalanced JACK
    SEND output nom. out level +4 dBu Unbalanced JACK
    HEADPHONES min. impedance 64 ohm Stereo JACK
    Bluetooth   Version 5.0, Audio Streaming
    USB Audio Interface   Stereo IN/OUT, 16-bit converter
    44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate    		 Type A
    DIGITAL EFFECT PROCESSOR
    Effects   100 presets
    A/D and D/A converters   24 bit
    DSP resolution   24 bit
    Controls   2-DIGIT display, DIAL, LEVEL
    GENERAL SPECIFICATIONS
    Maximum level all outputs +15 dBu
    Crosstalk meas. at 1 KHz > 75 dB
    HUM & Noise unweighted < 90 dB
    THD + Noise at +4dB, 1kHz < 0,009 %
    Dimensions (WxHxD)   331 x 274 x 61 mm
    Weight   2,50 kg
    POWER REQUIREMENTS
    Supply   use only supplied AC/DC ADAPTER 5VDC 1A
    Mains Supply Voltage   100-240 VAC (±10%)  50/60 Hz
    Consumption   15 W

    Read more
