Compact Design. Professional Performance
The MQ Series from PROEL has been crafted to deliver high input density, professional-grade features, and exceptional audio quality in an ultra-compact, elegantly designed format — all at a remarkably competitive price. Engineered with Italian precision by the PROEL R&D team, MQ mixers represent the ideal choice for musicians, performers, and sound engineers seeking reliability, versatility, and premium performance in any sound reinforcement setup.
The Next Generation: MQ X
Taking the MQ concept to the next level, the new MQ X models introduce advanced digital processing and seamless connectivity.
A high-definition 24-bit DSP offers 99 studio-quality effects with adjustable parameters, easily managed through an intuitive LED display.
The integrated MP3 module allows flexible media playback via Bluetooth, USB KEY (USB-A), or PC connection (USB-C) — while the USB audio interface lets you record your mix directly to your computer with ease.

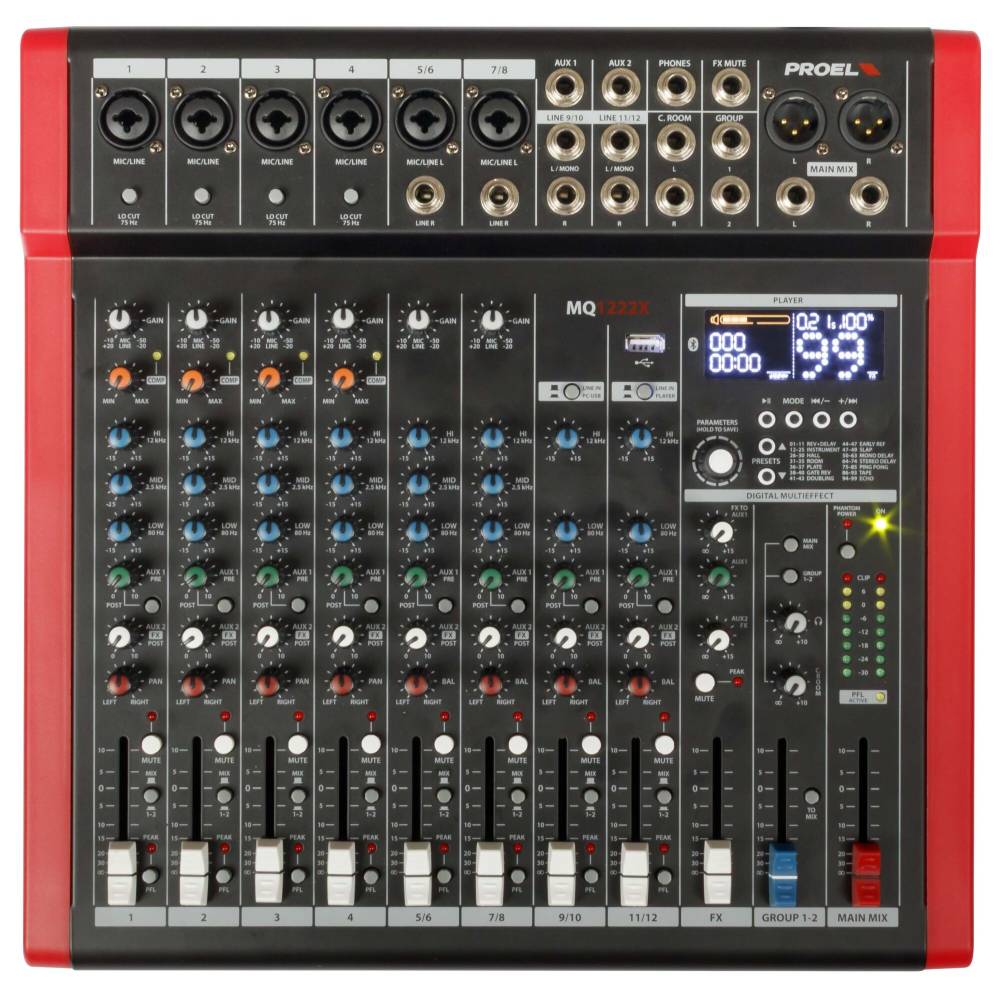

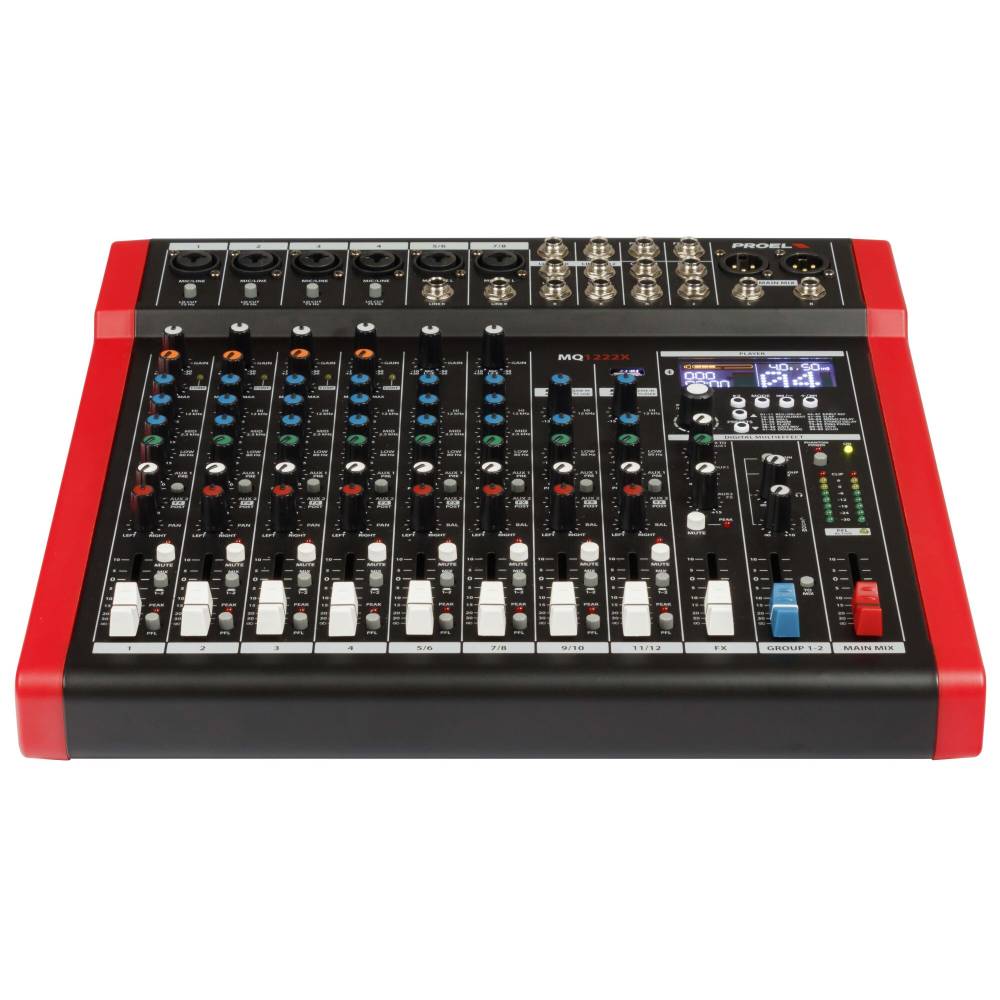

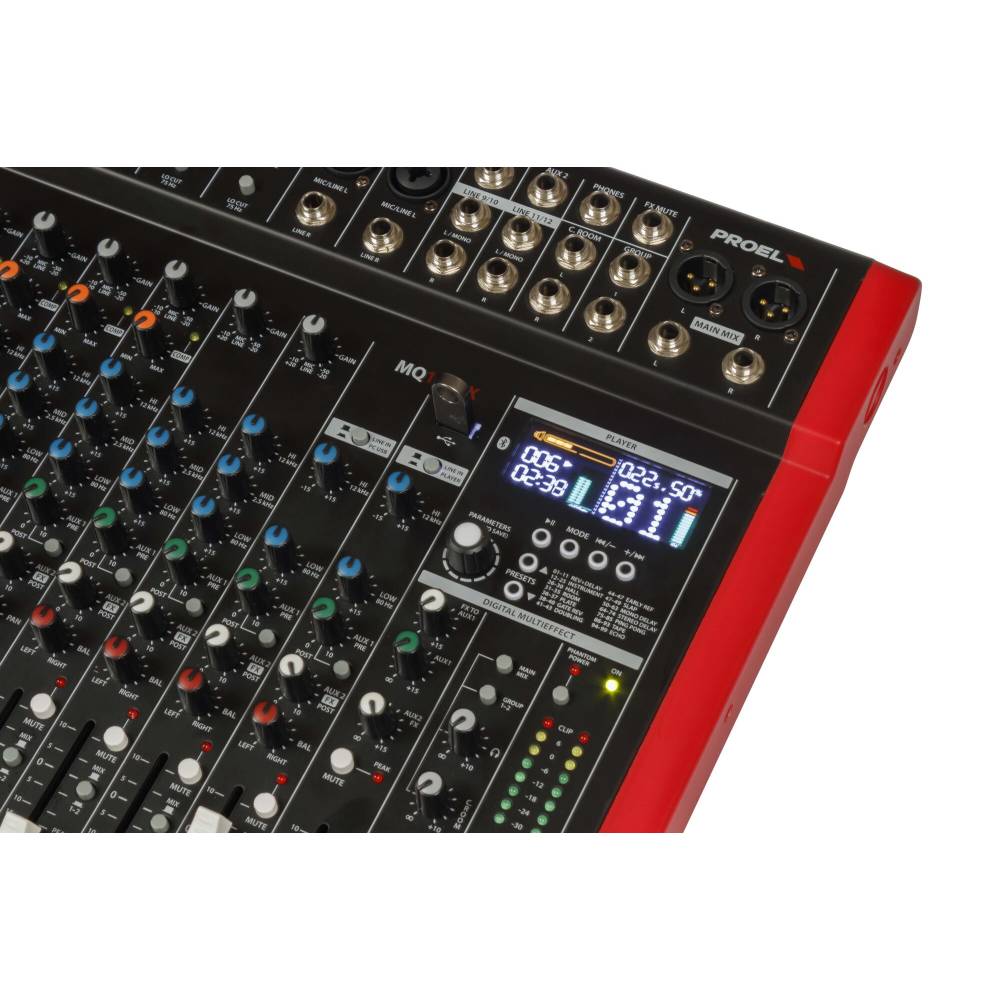

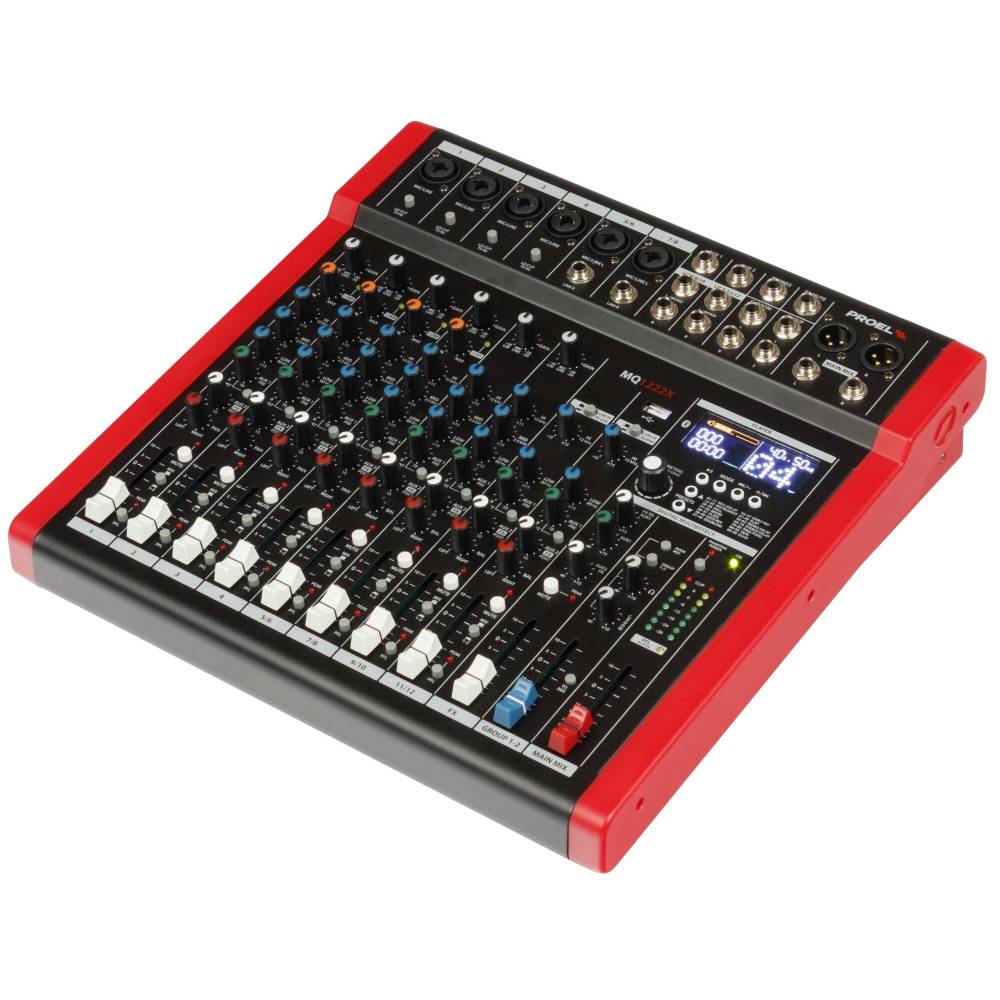

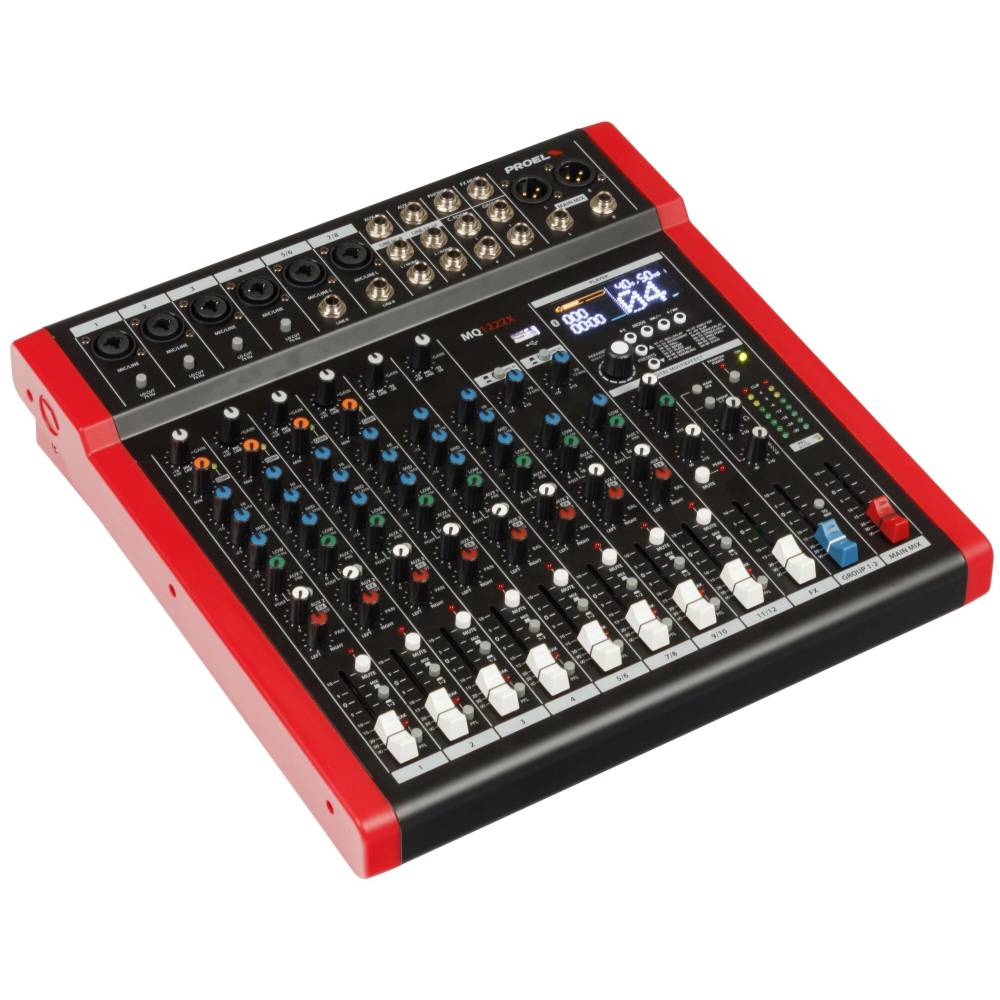

The MQ1222X provides 12 total inputs, including 6 high-quality mic preamps that ensure pristine, transparent sound. Each mono channel is equipped with one-knob intelligent compression for smooth, natural dynamics control. With 2 AUX sends, a stereo group bus, and 45 mm smooth-response faders, the MQ1222X delivers precise control and flexibility for a wide range of live sound and installation applications.
Built to Perform
Housed in ultra-rugged enclosures, MQ X mixers are engineered for long-term durability and stage-ready reliability. For added convenience, optional padded carrying bags and 19” rack-mounting kits are available — making the MQ Series a perfect companion both on the road and in fixed installations.
| MONO INPUT CHANNEL |
| Mic Input |
sensitivity |
from -10 to -50 dB |
Balanced XLR-F |
|
impedance |
3 Kohm |
|
| Line Input |
sensitivity |
from +20 to -20 dB |
Balanced JACK |
|
impedance |
30 Kohm |
|
| Lo cut |
|
75Hz, 18dB/oct. |
|
| EQ |
HIGH (shelving) |
±15 dB @ 12 KHz |
|
|
MID (peaking) |
±15 dB @ 2.5 KHz |
|
|
LOW (shelving) |
±15 dB @ 80 Hz |
|
| Compressor |
Fet |
CH 1-4, 1-knob |
|
| STEREO INPUT CHANNEL |
| Mic Input |
sensitivity |
from -10 to -50 dB |
Balanced XLR-F |
|
impedance |
3 Kohm |
|
| Line Input |
sensitivity |
from +20 to -20 dB |
Balanced JACK |
|
impedance |
30 Kohm |
|
| Line Input |
sensitivity |
-10 dBv |
Balanced JACK |
|
impedance |
10 Kohm |
|
| EQ |
HIGH (shelving) |
±15 dB @ 12 KHz |
|
|
MID (peaking) |
±15 dB @ 2.5 KHz |
|
|
LOW (shelving) |
±15 dB @ 80 Hz |
|
| MASTER SECTION |
| MAIN MIX |
nom. out level |
+4 dBu |
Balanced JACK and XLR-M |
| C. ROOM output |
nom. out level |
0 dBu |
Unbalanced JACK |
| GROUP output |
nom. out level |
+4 dBu |
Balanced JACK |
| FX/AUX output |
nom. out level |
0 dBu |
Unbalanced JACK |
| HEADPHONES |
min. impedance |
32 ohm |
|
|
max. out level |
(2x) 193 mW |
Stereo JACK |
| DIGITAL MULTIEFFECT /PLAYER |
| Effects |
|
99 presets |
|
| FX DSP resolution |
|
24 bit |
|
| Bluetooth |
|
Version 5.0, Audio Streaming |
|
| PC USB interface |
|
USB 2.0 / 3.0 |
Type C |
| USB player |
|
USB 2.0 / 3.0 |
Type C |
| A/D and D/A converters |
|
24 bit 48KHz |
|
| Controls |
|
LCD, DIAL, PEAK LED, MUTE switch, MUTE footswitch |
|
| GENERAL SPECIFICATIONS |
| Maximum level |
all outputs |
+22 dBu |
|
| Crosstalk |
meas. at 1 KHz |
> 82 dBu |
|
| HUM & Noise |
unweighted |
< -93 dBu |
|
| THD + Noise |
at +4dB, 1kHz |
< 0,008 % |
|
| Dimensions (WxHxD) |
|
352 x 352 x 90 mm |
|
| Weight |
|
3.90 kg |
|
| POWER REQUIREMENTS |
| Mains Supply Voltage |
|
110-240 VAC (±10%) 50 / 60 Hz
available with
Europe mains cord (Shucko plug),
US mains cord (NEMA 5-15P plug),
UK mains cord (BS1363 plug) |
|
| Consumption |
|
50 W |
