The LTXSUB10P is a low profile, very compact sub-woofer designed to be used in fixed multi-way installations requiring an extended low frequency response. Despite the small size, LTXSUB10P can produce a high output level and it is the ideal complement to LTX series.

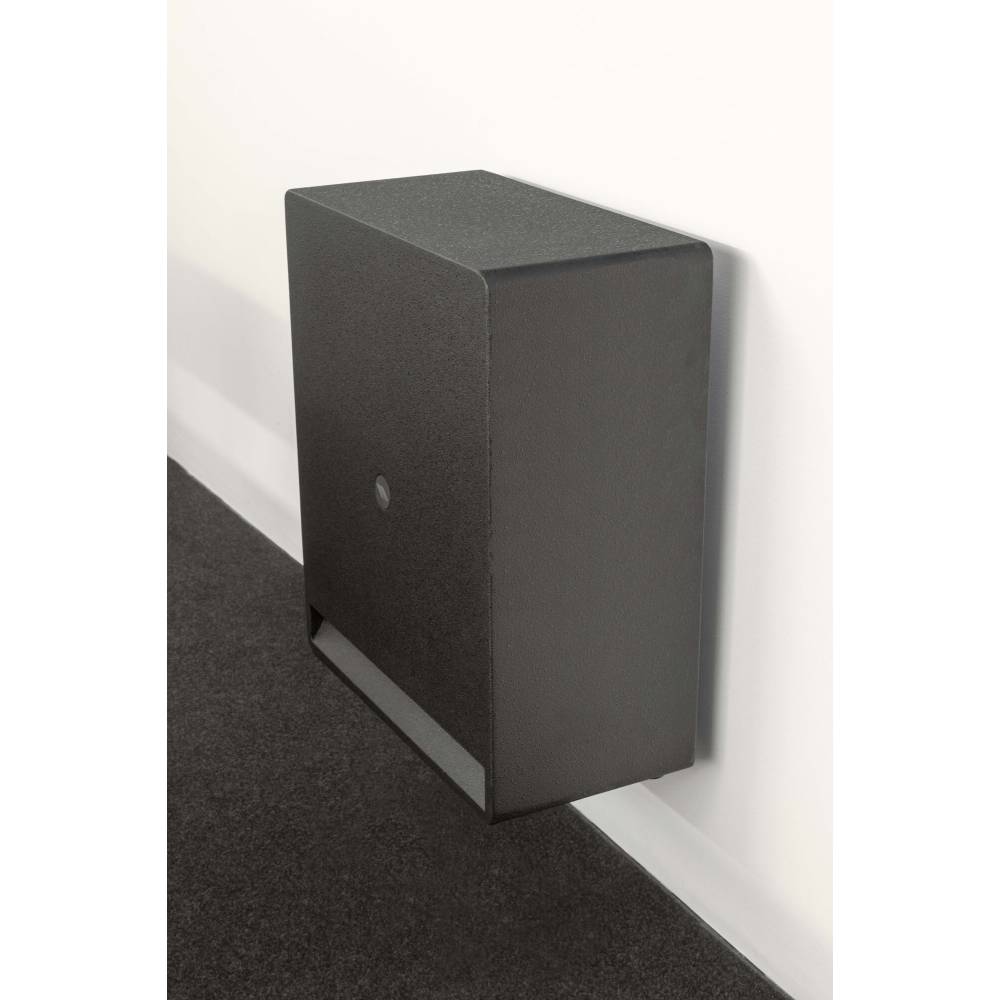

For the construction of the cabinet we have used MDF, a very durable material, finished with strong, anti-scratch paint that provides proper protection for years of service. The supplied brackets allow to install the speaker on walls or ceiling, offering the possibility to obtain a more uniform coverage of the audience.
The high-excursion woofer, together with carefully tuned band-pass cabinet, offers an extended response with deep and tight basses.
| System type |
Band-pass enclosure |
| Low Frequency Device |
10” woofer with 2” voice coil |
| Power Rating Continuous |
150 W |
| Power Rating Peak |
300 W |
| Impedance |
8 ohm |
| Frequency Response |
45 - 150 Hz |
| SPL (1w / 1m) |
95 dB |
| Connectors |
Terminal blocks |
| Mounting System |
2 x wall/ceiling mounting brackets |
| Construction |
MDF |
| Cabinet Colour |
Black |
| Dimensions (W x H x D) |
480 x 570 x 253 mm |
| Weight |
20.0 kg / 44.1 lbs |
