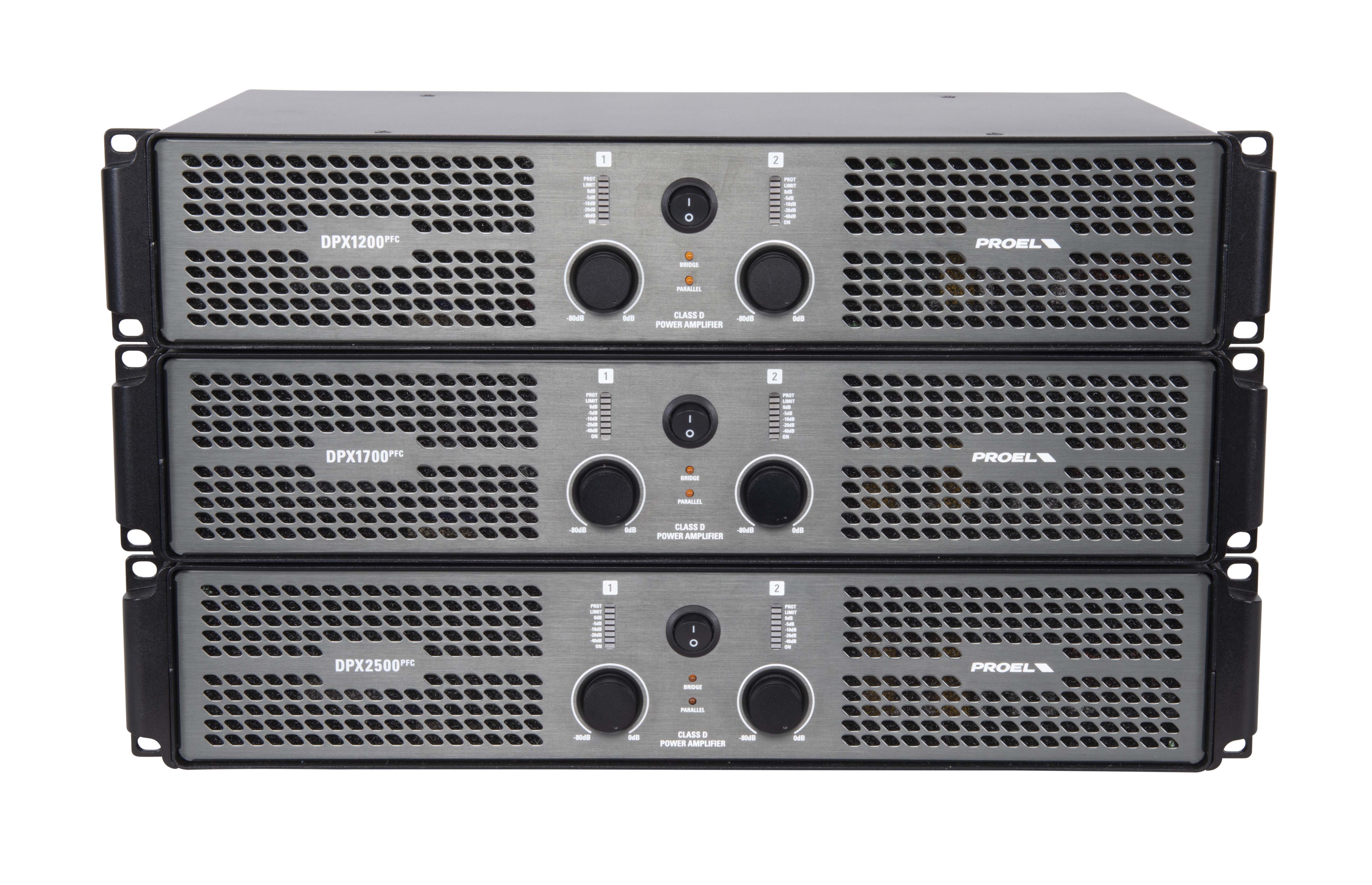

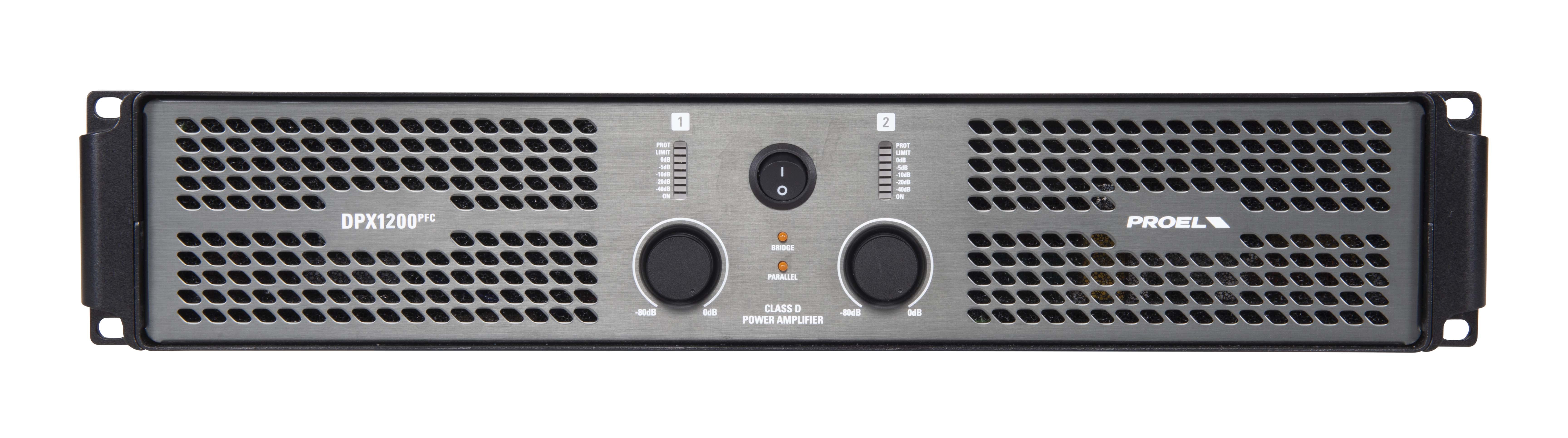

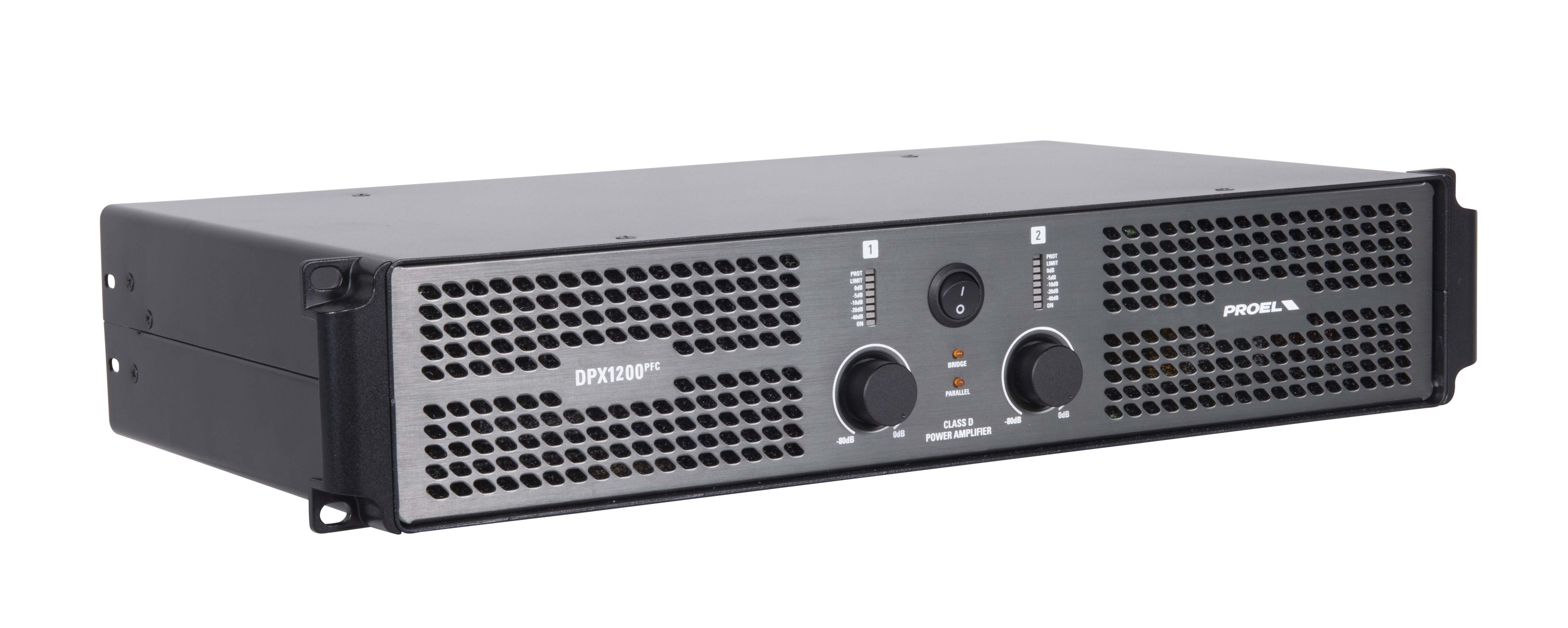

Proel Sound systems Power Amplifier DPX1200PFC

Name: Proel Sound systems Power Amplifier DPX1200PFC
Brand: Proel
SKU: DPX1200PFC
Price: 428.0 EUR

Product form

SKU: DPX1200PFC
Barcode: 8032496459071

Next Arrival

€428,00 Excl. VAT

Where to buy?

Find your nearest dealer here

Power 8 ohm *	350 W
Power 4 ohm *	600 W
Power BRIDGE 8 ohm **	1200 W
Output Stage	Class D
Frequency response (+0.5/-0.5 dB)	20 Hz - 20 KHz
Input Sensitivity	+2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed)	36 dB
Input Connectors / Impedance	XLR-F (INPUT), XLR-M (LINK) / 20 Kohm (balanced), 10 Kohm (unbalanced)

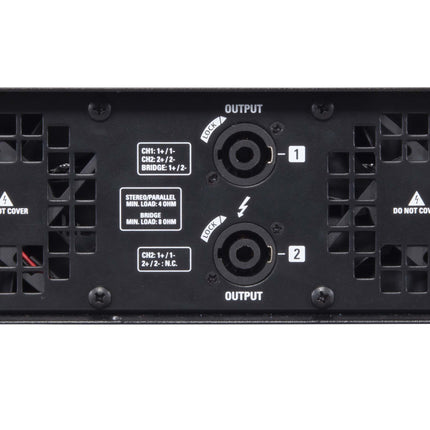

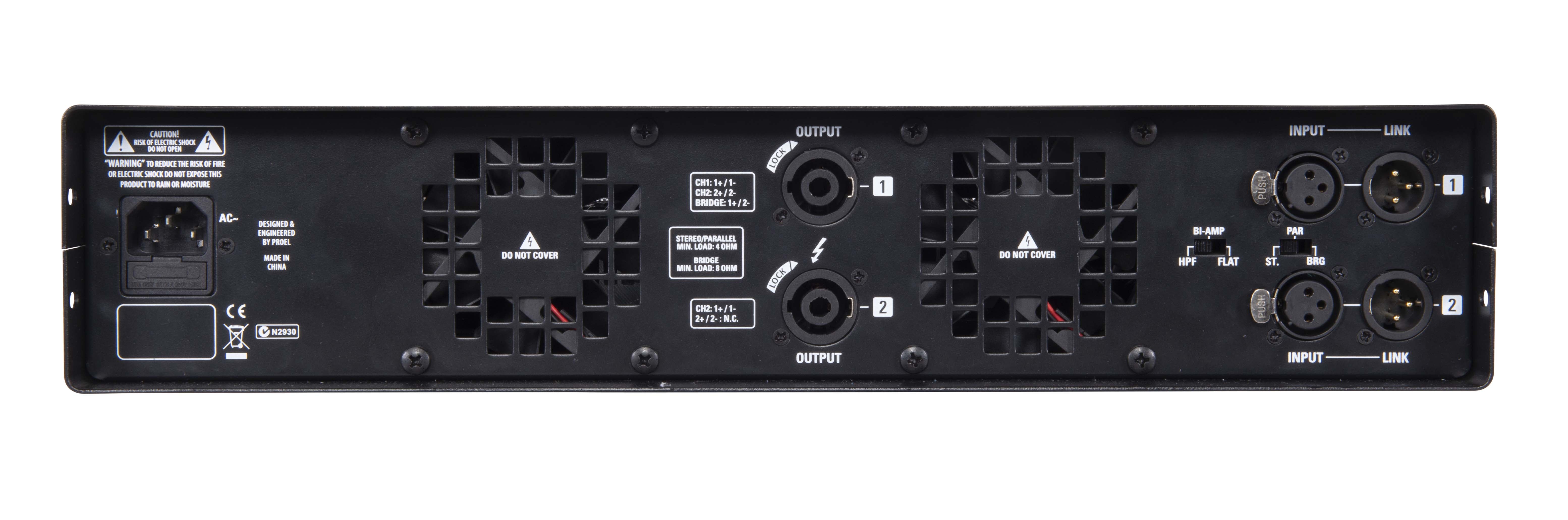

Output Connectors	SPEAKON and Binding Post
Damping Factor	> 500
S/N Ratio (unweighted)	> 100 dB
THD+N	< 0.15%

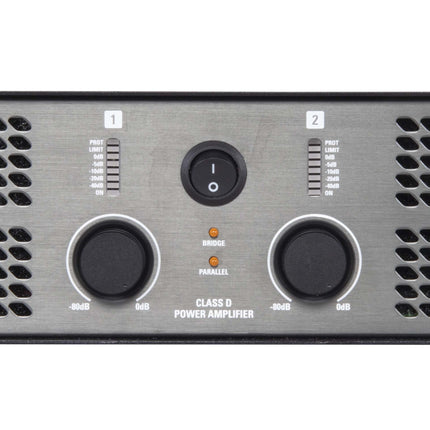

Controls	INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators	7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling	Variable speed DC fan, air flow from front to rear
Protections	AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage	100-240 VAC 50/60 Hz (±10%)
Dimensions (W x H x D)	483 x 89 x 255 mm (19" x 3.5" x 10")
Weight	3.8 Kg (8.4 lb)
* Power per channel tested under EIA standard
** Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
